IPVK/6296 Series IP videokit
Art. 6296
IP Videophone for VIDEX IP System
ENABLE BOOTLOADER MODE
In case of firmware update failure (i.e. because of mains failure or
cable disconnection during the update etc.) and the videophone
is not anymore recognized by the Videx IP Wizard software, you
can try to restore it by manually putting it into boot mode.
It is strongly recommended that this operation is carried out by
a qualified engineer and in any case after a contact with videx
support.
• Disconnect the videophone from power supply (ethernet
connector if supplied by POE or +12Vdc terminal connector
if supplied by a power supply unit).
• Press and keep pressed
power supply source (ethernet connector if supplied by POE or
+12Vdc terminal connector if supplied by a power supply unit).

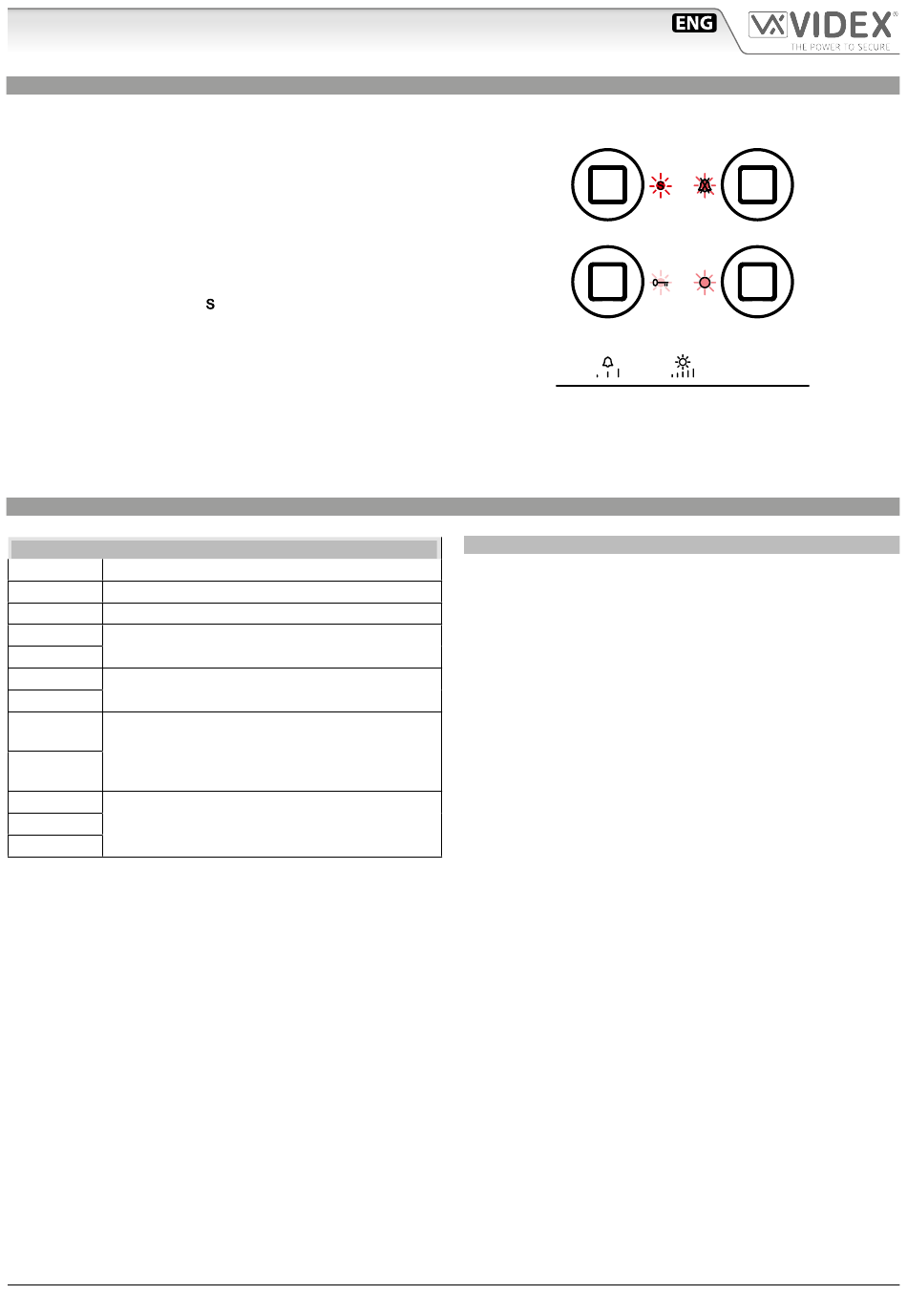

• The videophone goes in boot mode recognized by the four
LEDs flashing alternatively (Fig. 65).
• Now proceed using the utility "VidexFirmwareUpdater.exe"
to upload the firmware to the device.
• If the update process terminates correctly, the device should be restored and ready to work.
• If the device still not work, please contact the supplier to proceed according to the warranty terms.
TECHNICAL SPECIFICATIONS
SIGNALS ON CONNECTION TERMINALS
GNDP Ground for PTE inputs
PTE2
Active low input 2 (to implement)
PTE1
Active low input 1 (to implement)
OUT2
Relay 2 - C & NO dry contacts (to implement)
OUT2
OUT1
Relay 1 - C & NO dry contacts (to implement)
OUT1
+12
12 Vdc power supply input. This is not used if
the videophone is connected to a POE Switch or
GND
Router
A
B RS-485 connection
GND
IPVK/6296 Series - Installation handbook
button then connect again the
Monitor in boot mode
Fig. 65
SPECIFICATION
Housing/Mounting:
Push buttons:
Programming:
Controls:
Power Supply:
Power consumption:
Working Temperature:
- 30 -
6200 Series Videophones
Surface mount
Yes, 4
Yes, carried out by the buttons and
the PC.
Call tone volume, brightness
12Vdc or POE
Stand-by: 0.2mA
Operating: 115mA
-10 +50 °C
