IPVK/6296 Series IP videokit
Art. 4533
IP speaker unit module for VIDEX IP System
A
B
C
D

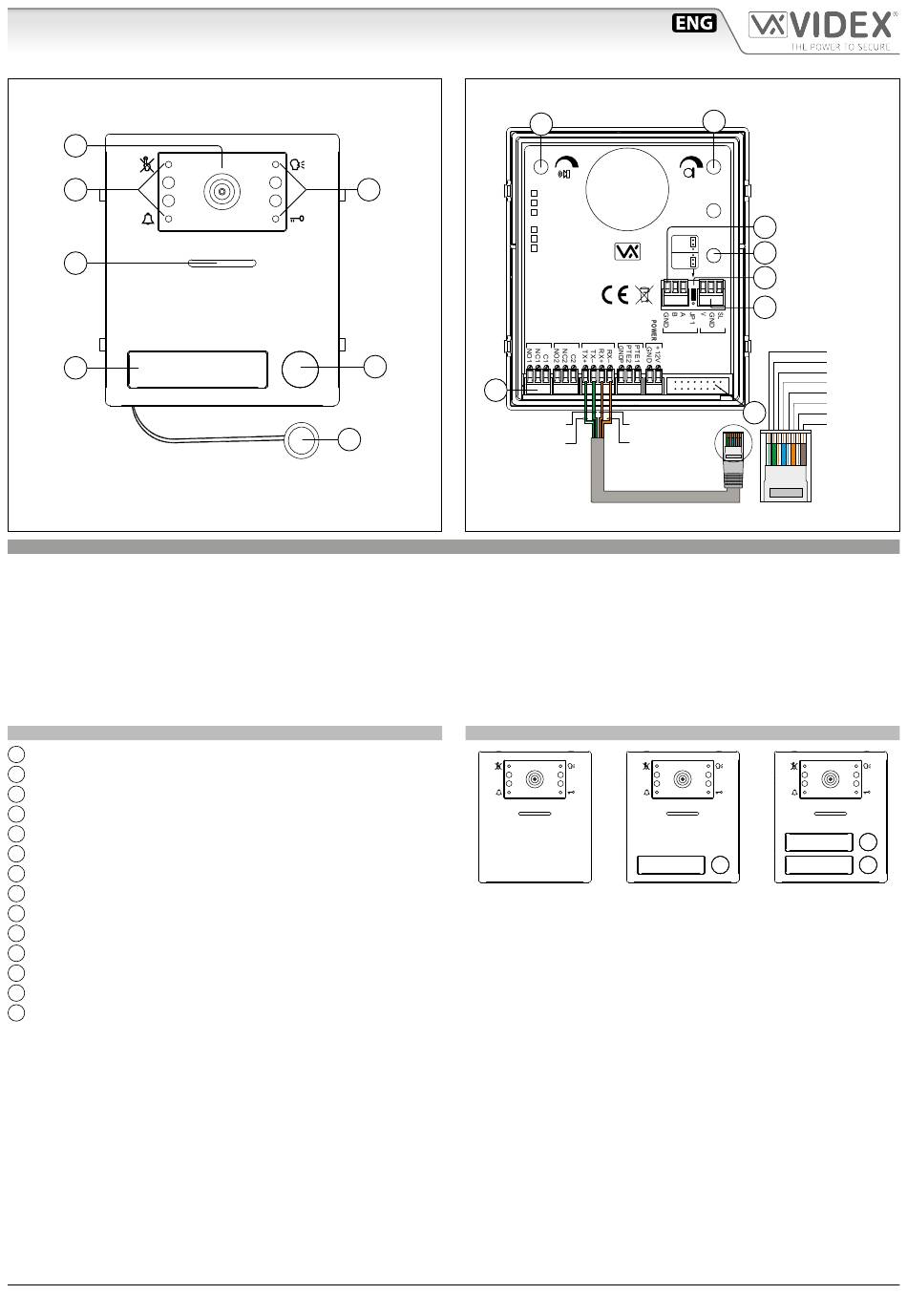

Fig. 1
DESCRIPTION
IP speaker unit module with built-in wide colour day/night camera with autoiris lens and IR illumination LEDs. Depending on the
speaker unit version it includes one or two call push buttons. The unit circuitry incorporates:
• The transmitting amplifier with microphone and volume control;
• The receiving amplifier with volume control;
• Two enslavement relay to enable electric locn and an additional service (3 contacts each: common, normally open and normally closed).
• The call buttons from 1 to a maximum of 2 depending on the module version;
• The illumination LEDs for the card name holder;
• The camera comprised of illumination LEDs.
MODULE DETAILS:
Camera with illumination LEDs;
A
Operation LEDs;
B
Loudspeaker;
C
Card name holder;
D
Call push button (0, 1 or 2 depending on the model);
E
Microphone;
F
Loudspeaker volume control;
G
Microphone volume control;
H
RS485 connection terminals;
I
Boot loader push button for firmware update;
J
RS485 termination jumper;
K
External camera connection terminals;
L
System connection terminals;
M
Button expansion modules connector
N
IPVK/6296 Series - Installation handbook
B
E
M
F
White-green
Fig. 2
AVAILABLE MODULE VERSIONS
Art. 4533-0
- 5 -
G
4533-0
4533-1
4533-2
STEEL
ALI
Close
HIGH BRASS
Open
Made in Italy
RS485
RELAY 1 RELAY 2 ETHERNET INPUTS
EXPANSION
BUTTONS
Green Orange-white
Orange
Art. 4533-1
H
I
RESET?
J
K
L
TIA/EIA-568-A.1-2001 T56AB
EXT CAMERA
Wiring
White-Green
Green
White-Orange
Blue
White-Blue
Orange
N
White-brown
Brown
Art. 4533-2
