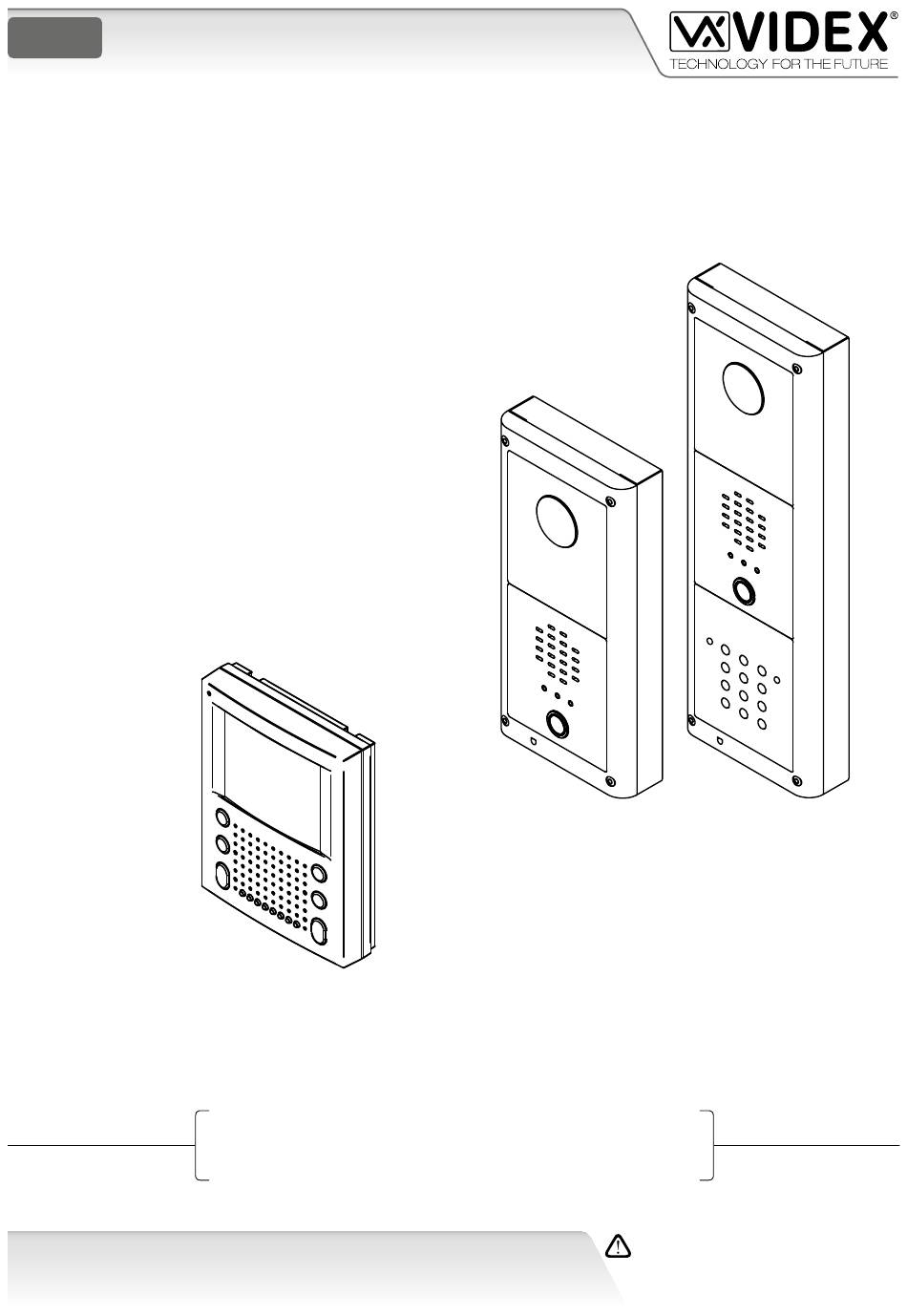

English VIDEOKIT VRVK/5456 SERIES “6 Wire” bus one way, two way vandal resistant videokit VRVK VRVKC 5456 Installation handbook We recommend 66250695-EN This equipment is installed by a V 3.4 Competent Electrician, Security or 31/08/16 Communications Engineer.
VRVK/5456 Series Vandal Resistant “6 wire Bus” videokit Index Introduction ....................................2 System components and available versions ..........................3 General directions for installation ..............................5 Troubleshooting guide .................................. 6 Art. VR4KCM Camera module ................................ 7 Art. VR4KAMK Speaker unit ................................8 Art. VR4KCL Digital codelock ............................... 10 4000 Series surface and flush mounting door station installation ..................

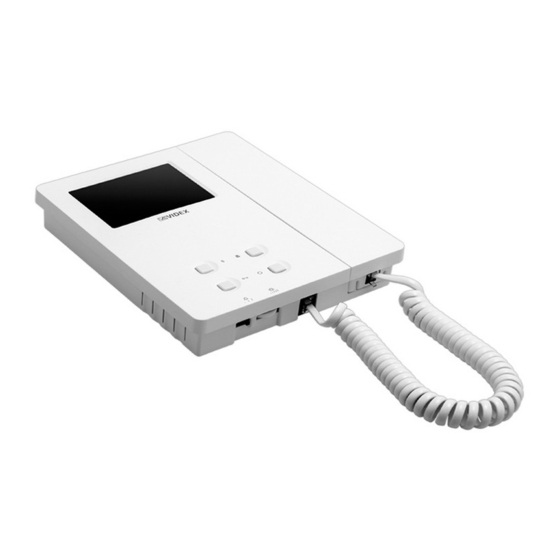

VRVK/5456 Series Vandal Resistant “6 wire Bus” videokit System components and available versions VRVK/5456 Colour videokit. OUTDOOR INDOOR STATION STATION 135,0 45,0 15,70 43,0 Videophone Art. 5456 pag. 15 Camera unit Art. VR4KCM pag. 7 ACCESSORIES Power supply Speaker unit Art. 850K Art. VR4KAMK pag.
Page 4
VRVK/5456 Series Vandal Resistant “6 wire Bus” videokit System components and available versions VRVKC/5456 Colour videokit plus a codelock module. OUTDOOR INDOOR 135,0 45,0 15,70 43,0 STATION STATION Videophone Camera unit Art. 5456 Art. VR4KCM pag. 15 pag. 7 Speaker unit Art. VR4KAMK pag.
VRVK/5456 Series Vandal Resistant “6 wire Bus” videokit General directions for installation CONNECTION TO MAINS The system must be installed according to national rules in force, in particular we recommend to: • Connect the system to the mains through an all-pole circuit breaker which shall have contact separation of at least 3mm in each pole and shall disconnect all poles simultaneously;...
VRVK/5456 Series Vandal Resistant “6 wire Bus” videokit Troubleshooting guide In case of system failure, try the following preliminary checks: • Check that the cables are connected as shown in the installation diagram and that the cables are firmly fixed into the relevant terminals; •...
Page 7
VRVK/5456 Series Vandal Resistant “6 wire Bus” videokit Art. VR4KCM Camera module Art.130 = Active low camera enable = Heater- = Ground = Video Sig. Sync+ = Heater+ = Video Sig. Sync- +20 = +20Vdc power supply = Video Sig. Coax +12 = +12Vdc power supply NC ON COAX SL...
Page 8
VRVK/5456 Series Vandal Resistant “6 wire Bus” videokit Art. VR4KAMK Speaker unit Art.140 Amplifier for VR4KV Series Videokits P1 = Red / Rosso P2 = White / Bianco – .. = Blue / Blu Made in Italy NO NC C PTE SL BS 2 1 +12 +20 Speaker Reassurance Microphone...
VRVK/5456 Series Vandal Resistant “6 wire Bus” videokit Art. VR4KAMK Speaker unit When the door open relay operating mode is set to “capacitor discharge”*, one terminal of the electric lock must be connected to ground while the second must be connected to “NO” terminal. The “NO” terminal will supply a temporary voltage when the speaker unit receives the door open command.
Page 10
GENERAL DIRECTIONS FOR INSTALLATION • In order to achieve the best results from the schematics described it is necessary to install only original VIDEX equipment, strictly keeping to the items indicated on each schematic and follow these General Directions for Installation: •...
VRVK/5456 Series Vandal Resistant “6 wire Bus” videokit Art. VR4KCL Digital codelock BUILT-IN RELAYS – BACK EMF PROTECTION The codelocks includes selectable back EMF protection on the relays. The jumpers marked MOV (One jumper for each relay) are used to select the protection type. When using a fail secure lock with connections C & NO the jumper should be in the NO position. When using a fail open lock with connections C &...
Page 12
VRVK/5456 Series Vandal Resistant “6 wire Bus” videokit Art. VR4KCL Digital codelock FLOW CHART FIRST TIME SIX TIMES 1 ENTER “111111” FACTORY “ENGINEER’S CODE” Press Enter PRESET (Red LED will be ON) TYPE AGAIN SIX TIMES “1” CONFIRM OR CHANGE OR THE NEW ENGINEER’S “ENGINEER’S CODE”...
Page 13
VRVK/5456 Series Vandal Resistant “6 wire Bus” videokit 4000 Series Surface and flush mounting door station installation EXAMPLE: INSTALLING A FOUR MODULE OUTDOOR STATION fig. 1 fig. 2 fig. 3 fig. 4 fig. 5 fig. 6 fig. 7 fig. 8 fig.
VRVK/5456 Series Vandal Resistant “6 wire Bus” videokit 4000 Series Surface and flush mounting door station installation INSTALLING A SURFACE MOUNT DOOR STATION 1. Place the surface box against the wall (165-170cm between the top of the box and the floor level as shown in Fig. 1) and mark the fixing holes for the wall plugs and the hole for the cables E (fig. 2).
Page 15
VRVK/5456 Series Vandal Resistant “6 wire Bus” videokit Art. 5456 Hands free videophone 1 2 3 6 7 8 1 2 3 6 7 8 130,00 Fig. 1 Fig. 2 PUSH BUTTONS Service push button. When pressed shorts terminal “16” to the common terminal “18”. Service push button.
Page 16
VRVK/5456 Series Vandal Resistant “6 wire Bus” videokit Art. 5456 Hands free videophone LEDS CONTROLS Aux LED for generic use (terminal “20”) Loudspeaker volume control Call tone volume control LED relevant to the operation of the button Brightness control LED relevant to the operation of the button Aux LED for generic use (terminal “14”) Colour intensity control...
Page 17
VRVK/5456 Series Vandal Resistant “6 wire Bus” videokit Art. 5456 Hands free videophone SIGNALS ON CONNECTION BOARD Speech line output from videomonitor’s microphone and data signal (About 12V in stand-by, about 5V in conversation) Speech line input toward the videomonitor’s loudspeaker (About 12V in stand-by, about 3V in conversation) Speech line input toward the loudspeaker of the parallel telephone (About 12V in stand-by, about 3V in conversation) Balanced video signal 1 sync.–...
VRVK/5456 Series Vandal Resistant “6 wire Bus” videokit 5000 Series Videomonitor wall mounting instructions 5000 Series Videomonitor wall mounting instructions Fig. 1 Fig. 2 Fig. 3 Fig. 4 1. To install the videomonitor it is necessary to open it. Follow picture Fig. 4: turn screw “G”, pull cover “D” and lift it up (or push it forward if the videomonitor is in horizontal position), then disconnect plug “E”...
This manual has been written and revised carefully. The instructions and the descriptions which are included in it are referred to VIDEX parts and are correct at the time of print. However, subsequent VIDEX parts and manuals, can be subject to changes without notice.
Page 20
Art.140 Art.140 Title: Data creazione: Foglio 23/09/2015 Titolo: Data modifica: 23/09/2015 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 vr4kv-001b-ecl.dwg www.videx.it - info@videx.it VRVK/5456 Series - Installation handbook 66250695-EN - V 3.4 - 31/08/16...
Page 21
VRVK/5456 Series Vandal Resistant “6 wire Bus” videokit Installation diagrams VIDEOKIT VRVK-2/5456, VRVK-2S/5456 23/09/2015 23/09/2015 Marco Rongoni vr4kv-002b-ecl.dwg VRVK/5456 Series - Installation handbook 66250695-EN - V 3.4 - 31/08/16...
Page 22
VR4KAMK-1 Art.140 Title: Data creazione: Foglio 23/09/2015 Titolo: Data modifica: 23/09/2015 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 vr4kv-003b-ecl.dwg www.videx.it - info@videx.it VRVK/5456 Series - Installation handbook 66250695-EN - V 3.4 - 31/08/16...
Page 23
VRVK/5456 Series Vandal Resistant “6 wire Bus” videokit Installation diagrams VIDEOKIT VRVKC-2/CL/5456, VRVKC-2S/CL/5456 23/09/2015 23/09/2015 Marco Rongoni vr4kv-004b-ecl.dwg VRVK/5456 Series - Installation handbook 66250695-EN - V 3.4 - 31/08/16...
Page 24
VRVK/5456 Series Vandal Resistant “6 wire Bus” videokit Installation diagrams VIDEOKIT VRVK-2/5456, VRVK-2S/5456 WITH ART. 316 22/10/2015 22/10/2015 Marco Rongoni vrvk4k54h-001.dwg VRVK/5456 Series - Installation handbook 66250695-EN - V 3.4 - 31/08/16...
Page 25
Art.140 Art.140 Title: Data creazione: Foglio 29/10/2015 Titolo: Data modifica: 29/10/2015 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 vrvk-1-001-2e.d www.videx.it - info@videx.it VRVK/5456 Series - Installation handbook 66250695-EN - V 3.4 - 31/08/16...
Page 26
VRVK/5456 Series Vandal Resistant “6 wire Bus” videokit Notes VRVK/5456 Series - Installation handbook 66250695-EN - V 3.4 - 31/08/16...
Page 27
VRVK/5456 Series Vandal Resistant “6 wire Bus” videokit Notes VRVK/5456 Series - Installation handbook 66250695-EN - V 3.4 - 31/08/16...
Page 28
MANUFACTURER CUSTOMER SUPPORT VIDEX ELECTRONICS S.P.A. All Countries: VIDEX ELECTRONICS S.P.A. Via del Lavoro, 1 - 63846 Monte Giberto (FM) Italy www.videx.it - technical@videx.it Tel (+39) 0734 631669 - Fax (+39) 0734 632475 Tel: +39 0734-631669 - Fax: +39 0734-632475 www.videx.it - info@videx.it...
