3.1 Assembly Group Wheels

3.1.3 Sprung back casters

If the mobile standing device is used in an area without thresholds, it is recommended to set the
wheels so that each wheel has contact with the ground.
If you need to overcome doorways or the like more frequently, it is recommended to set the back
casters so that the front casters are not touching the ground. These adjustments are made by the
height adjustment of the back casters

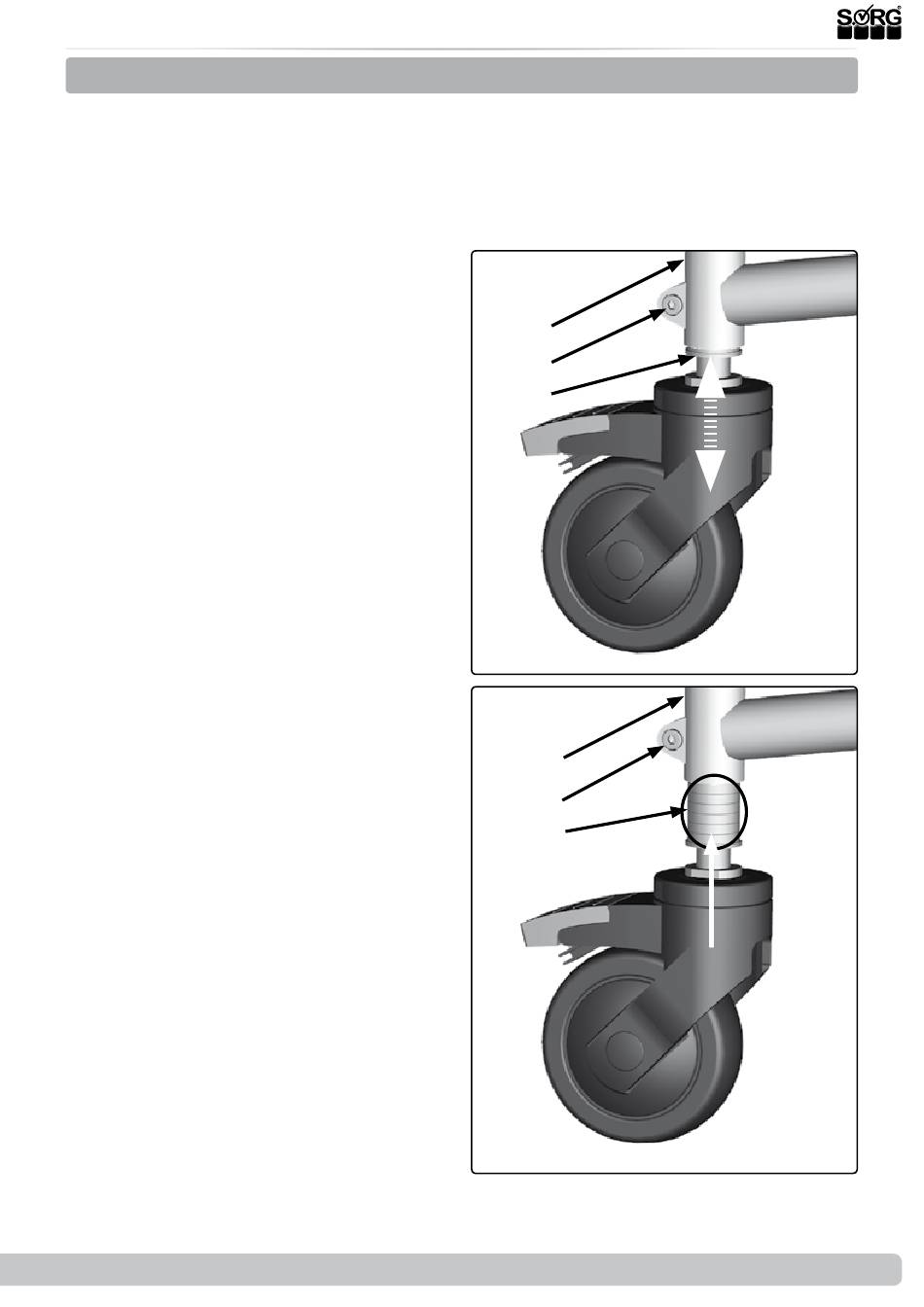

(1+2) The height of the back casters is set as
follows:
• Place the mobile standing device on an
even surface and secure it from rolling
away by locking the drum brake.
• Loosen, on both sides, the screw (A) of
the clamp (B) on the back caster wheels,
• pull the steering gear case (C) as far out
of the clamp (B) or push it in as far until
the desired height is reached.
• First tighten the screw (A) on one side.
• Adjust the steering gear case on the
other side according to this adjustment.
• Proceed as just described
• and also retighten the screws (A) there.
On the steering gear case (C) there are grooves
(D) at a distance of 5 mm with which you can
control the evenness on both sides.
2019-07-16
(1)
(B)
(A)
(C)
(2)
Service Record Boogie Drive
Steering gear case mounted short.
(B)
(A)
(C)
(D)
Steering gear case mounted long.
