5. How to Install
5

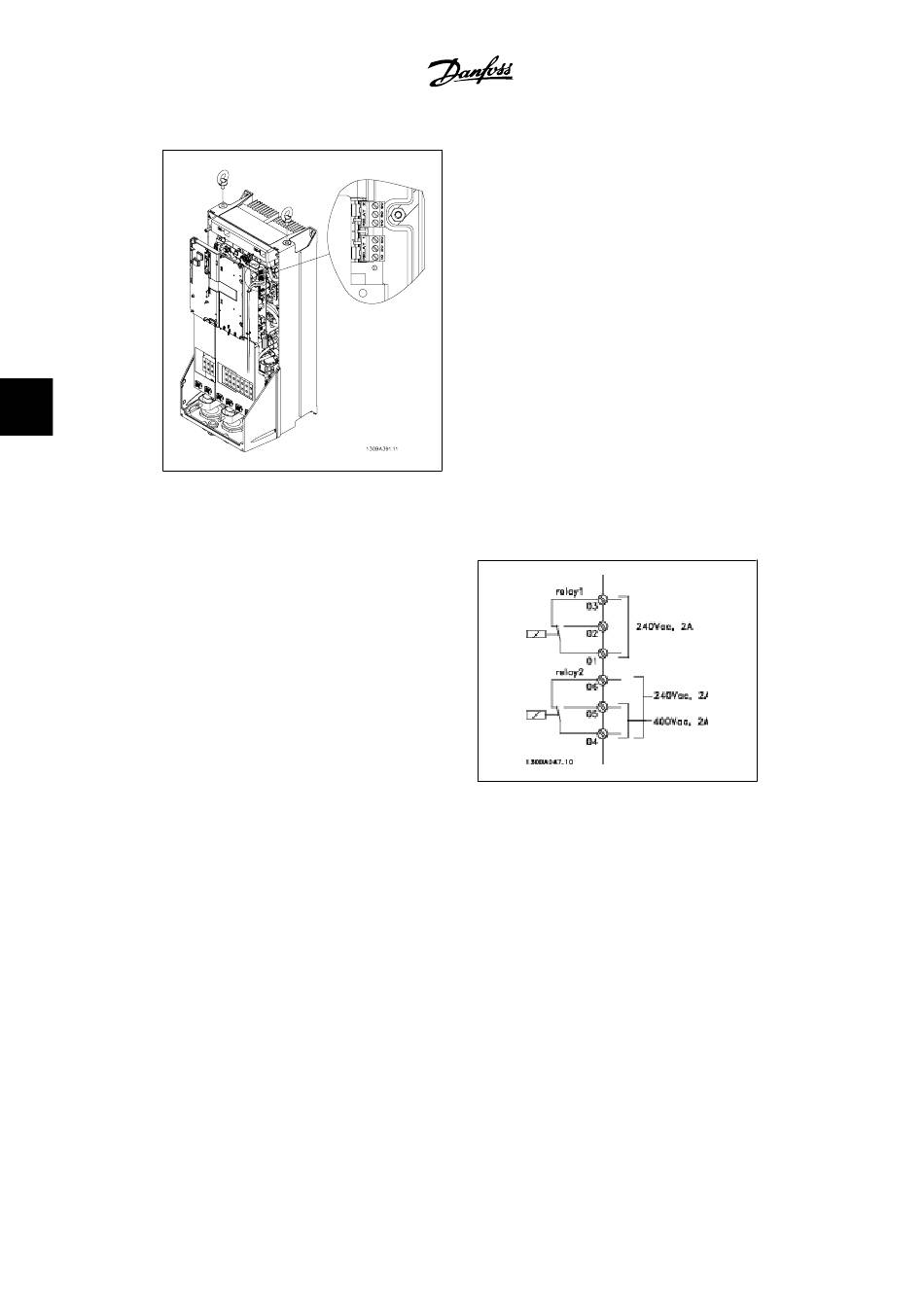

5.19: Terminals for relay connection
5.5.4. Relay Output
Relay 1
•
•
•
Relay 2
•
•
•
Relay 1 and relay 2 are programmed in par.
5-40, 5-41, and 5-42.
Additional relay outputs by using option mod-
ule MCB 105.
102
Terminal 01: common
Terminal 02: normal open 240 V AC
Terminal 03: normal closed 240 V AC
Terminal 04: common
Terminal 05: normal open 400 V AC
Terminal 06: normal closed 240 V AC
MG.20.N2.22 - VLT
(C1 and C2 enclosures).
