5. How to Install
4.
5.
5

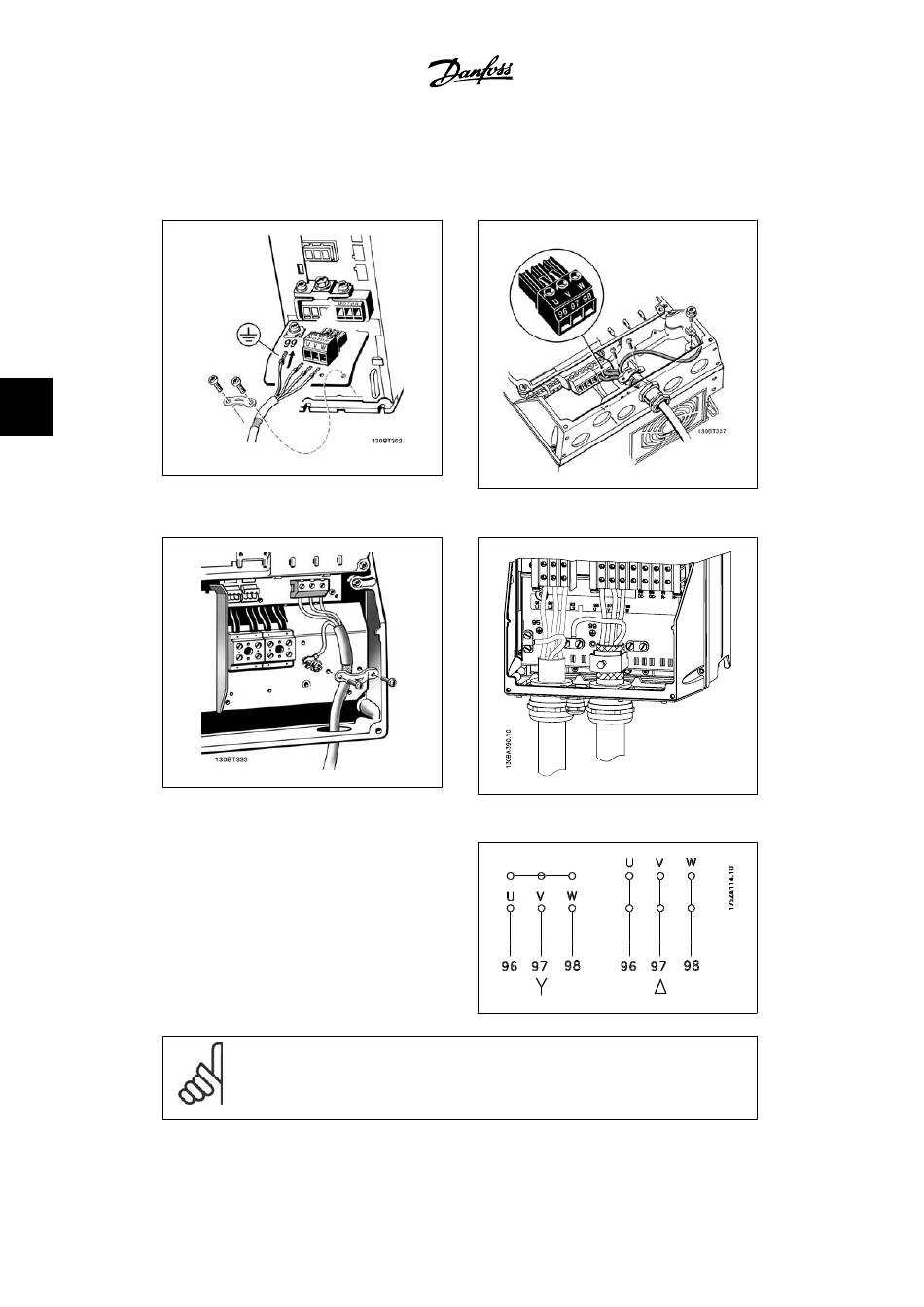

5.8: Motor connection for enclosures A2 and A3
5.10: Motor connection for enclosure B1 and B2
All types of three-phase asynchronous stand-
ard motors can be connected to the adjustable
frequency drive. Normally, small motors are
star-connected (230/400 V, D/Y). Large mo-
tors are delta-connected (400/600 V, D/Y).
Refer to the motor name plate for the correct
connection mode and voltage.
88
Insert terminals 96 (U), 97 (V), 98 (W) and motor cable to terminals labeled MOTOR.
Fasten shielded cable to the decoupling plate with screws and washers from the acces-
sory bag.
NOTE
In motors without phase insulation paper or other insulation reinforcement suitable
for operation with voltage supply (such as an adjustable frequency drive), fit a sine-
wave filter on the output of the adjustable frequency drive.
MG.20.N2.22 - VLT
5.9: Motor connection for enclosure A5
5.11: Motor connection for enclosure C1 and C2
®
is a registered Danfoss trademark.
VLT
®
AQUA Drive Design Guide
