Danfoss VLT AQUA Drive Design Manual page 94

5. How to Install

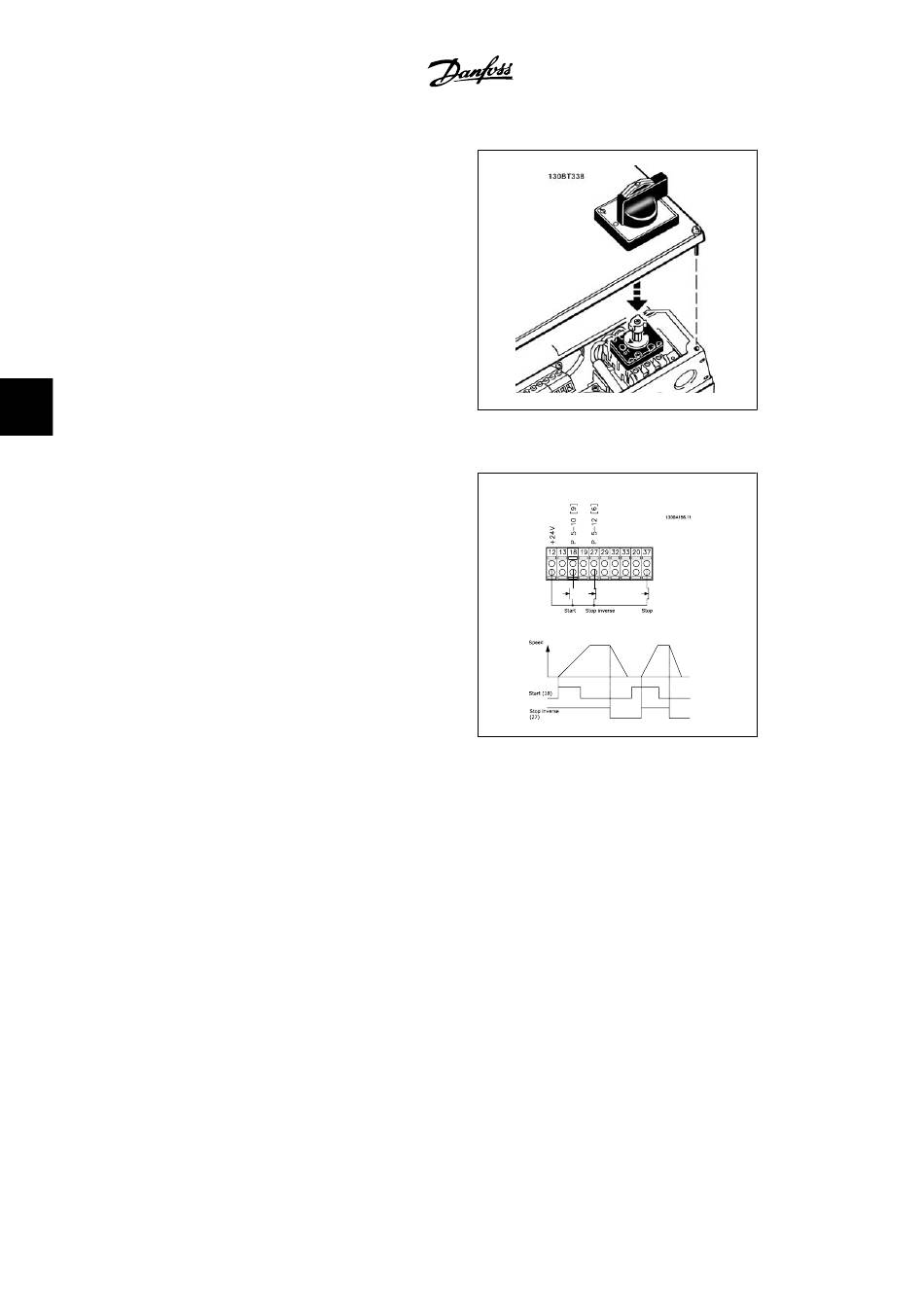

Assembling of IP55 / NEMA TYPE 12 housing
with line power disconnector
5
5.2.11. Basic Wiring Example
1.
2.
Default settings:
18 = Start
27 = stop inverse
94
Mount terminals from the accessory
bag to the front of the adjustable
frequency drive.
Connect terminals 18 and 27 to +24
V (terminal 12/13)
MG.20.N2.22 - VLT
5.15: Terminal 37 available with Safe Stop Func-
tion only!
® is a registered Danfoss trademark.
VLT ® AQUA Drive Design Guide
