3. VLT AQUA Selection
•
•
•
•
3
For B1, B2, C1 and C2 enclosures:
•
•
3.7.2. General Purpose Input Output Module MCB 101
MCB 101 is used for extension of the number
of digital and analog inputs and outputs of the
VLT AQUA Drive.
Contents: MCB 101 must be fitted into slot B
in the VLT AQUA Drive.
•
•
•
66
Remove the knock-out in the extended LCP frame delivered in the option set, so that the
option will fit under the extended LCP frame.
Fit the extended LCP frame and terminal cover.
Fit the LCP or blind cover in the extended LCP frame.
Connect power to the adjustable frequency drive.
Set up the input/output functions in the corresponding parameters, as mentioned in the
General Technical Data
section

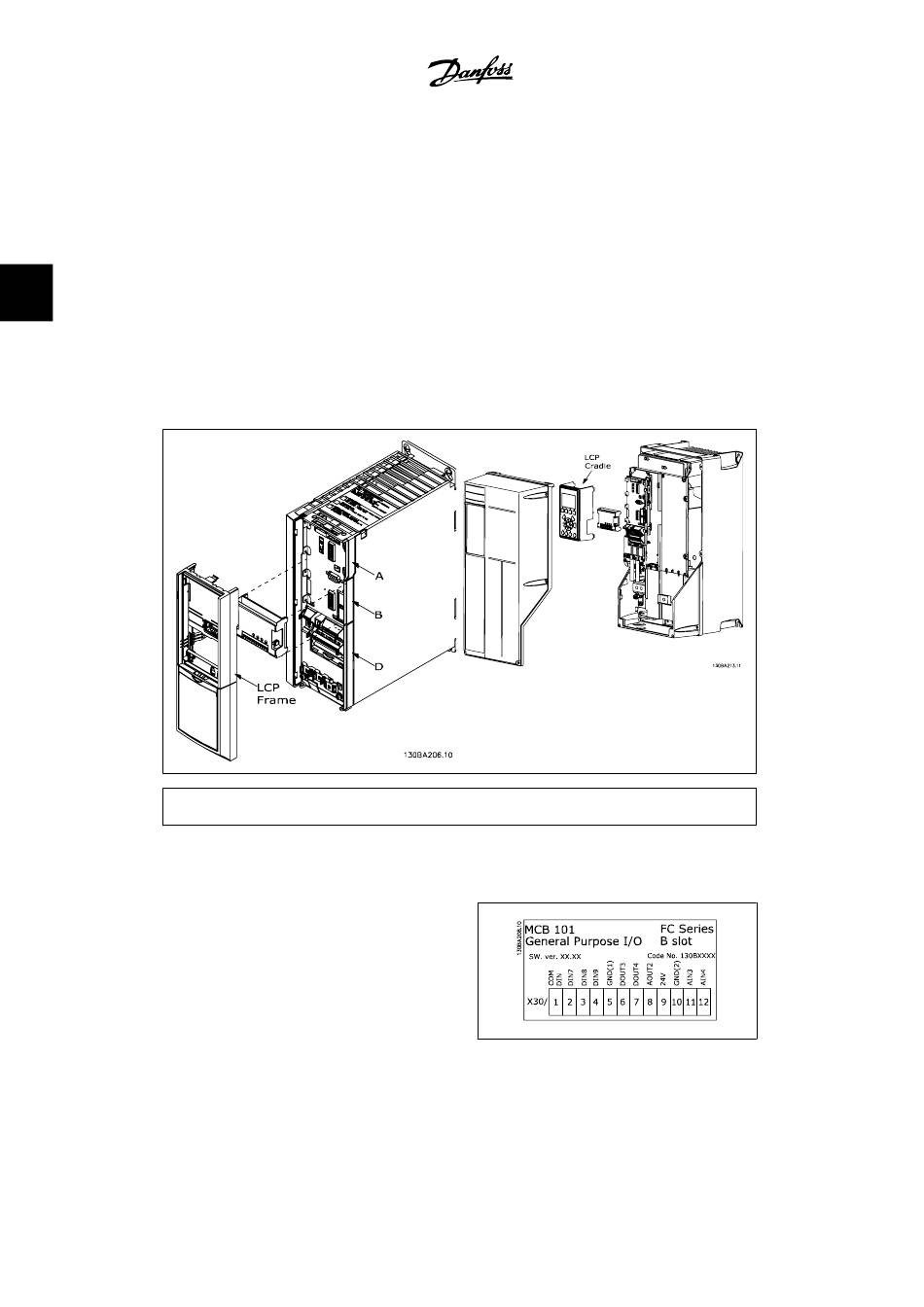

Remove the LCP and the LCP cradle.
Fit the MCB 10x option card into slot
B.
A2 and A3 enclosures
MCB 101 option module
Extended LCP frame
Terminal cover
MG.20.N2.22 - VLT
.
• Connect the control cables and re-
lieve the cable by the enclosed cable
strips.
• Fit the cradle.
• Fit the LCP.
A5, B1, B2, C1 and C2 enclosures
