VLT
Center Winder MCO 352

4 How to Install

4 How to Install

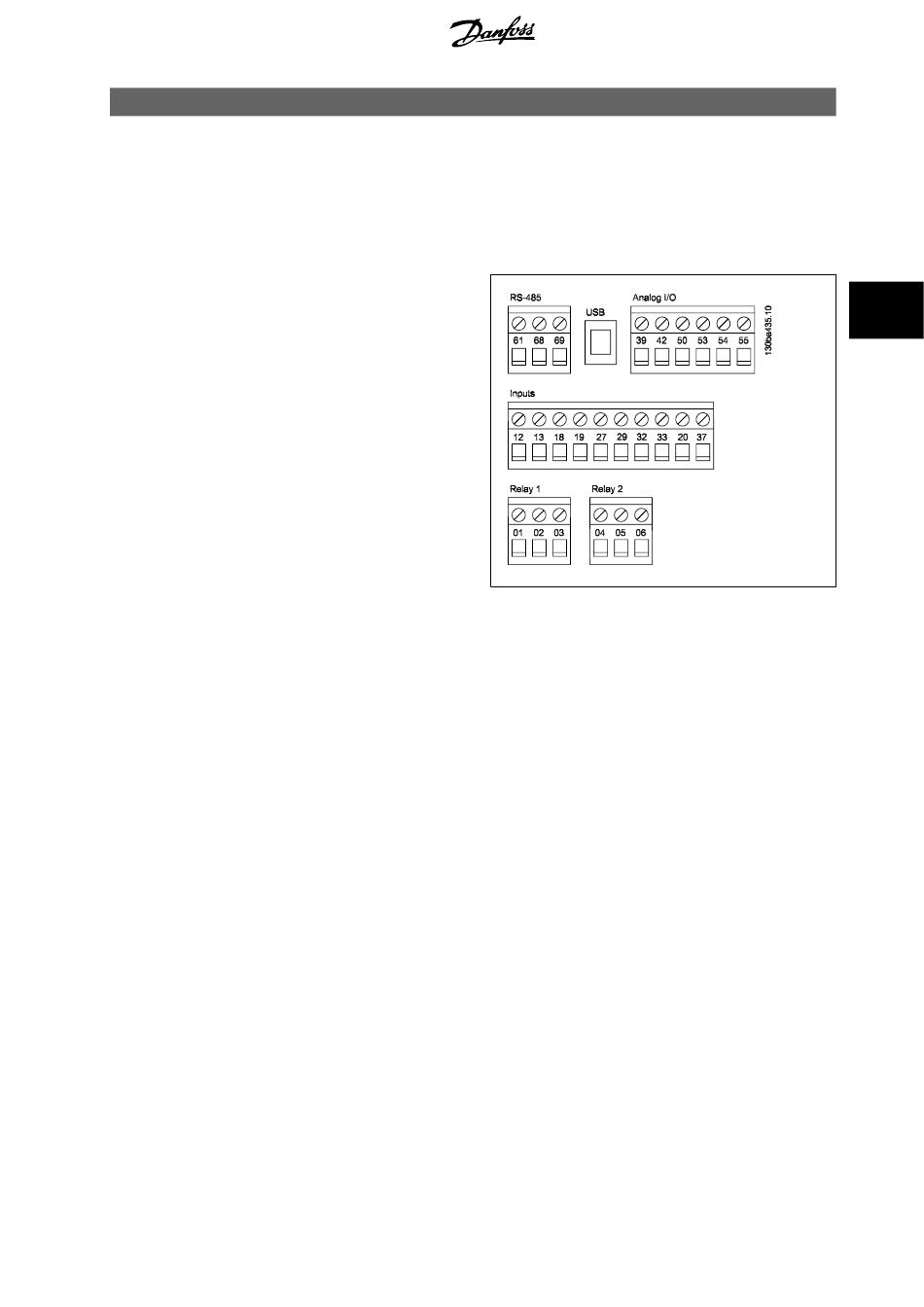

4.1.1 VLT AutomationDrive Terminals

The VLT AutomationDrive control card contains input and output logic terminals used by the Winder Option. The Winder Option does not assign a function
to all of the inputs and outputs on the control card. The terminals required for proper Winder operation are discussed in this manual. See the VLT
AutomationDrive Operating Instructions for further details.
Analog Inputs
4
53 Multifunction input 1
54 Multifunction input 2
55 A/I common
Inputs
27 Quick Stop
37 Safe Stop
Relay 1
Running on tension
Relay 2
Ready
Analog Outputs
42 Taper Tension Setpoint
Supply Voltage
50 10 V DC max. load 15 mA
11
®
MG.33.T1.02 - VLT
is a registered Danfoss trademark
