VLT ® AQUA Drive Design Guide
3.7.12. IP 21/IP 4X/ TYPE 1 Enclosure Kit
IP 20/IP 4X top/ TYPE 1 is an optional enclosure element available for IP 20 Compact units, en-
closure size A2-A3.
If the enclosure kit is used, an IP 20 unit is upgraded to comply with enclosure IP 21/ 4X top/
TYPE 1.
The IP 4X top can be applied to all standard IP 20 VLT AQUA variants.

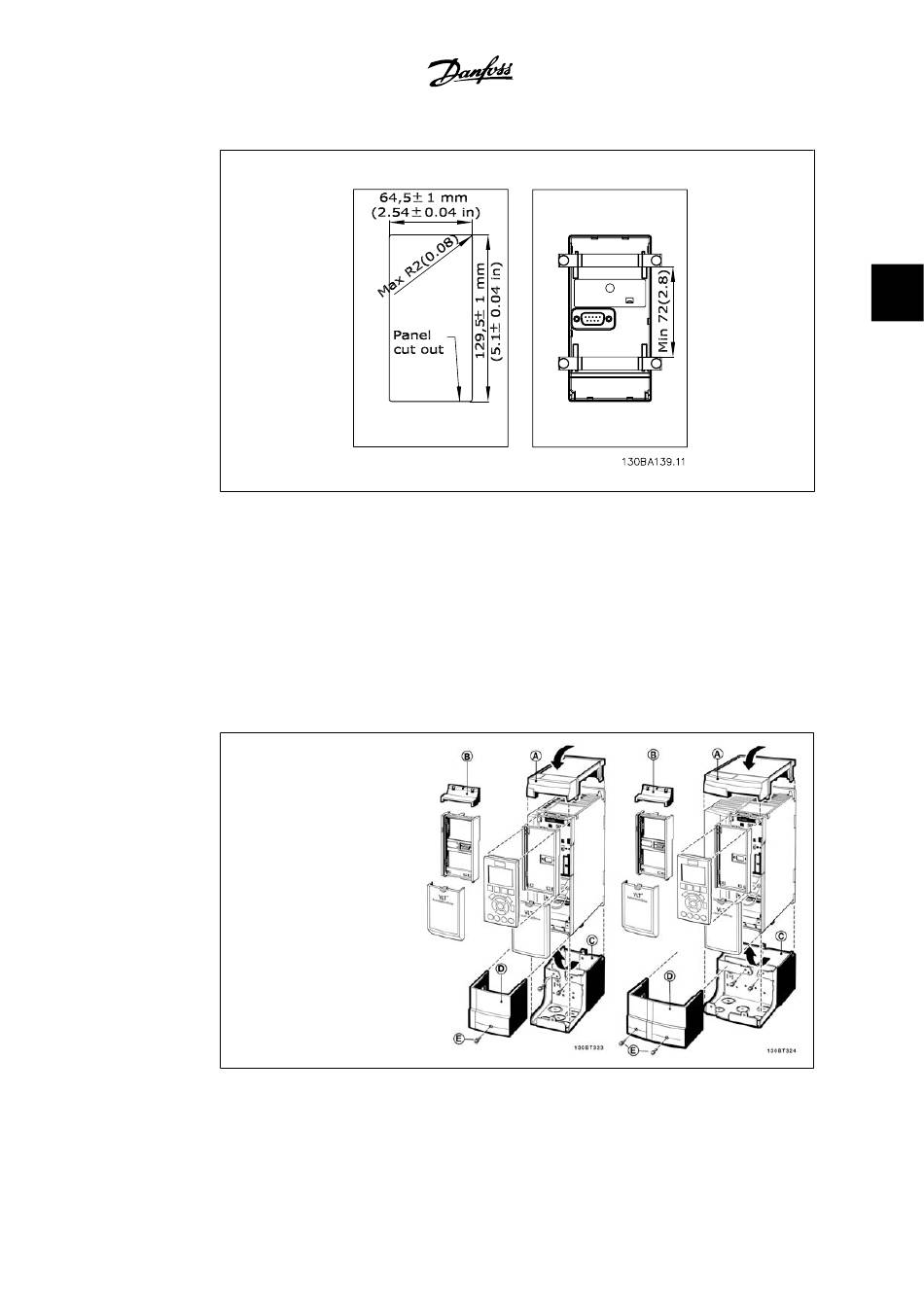

3.7.13. IP 21/Type 1 Enclosure Kit
A – Top cover
B – Brim
C – Base part
D – Base cover
E – Screw(s)
Place the top cover as shown. If an A
or B option is used, the brim must be
fitted to cover the top inlet. Place the
base part C at the bottom of the drive
and use the clamps from the accessory
bag to correctly fasten the cables.
Holes for cable glands:
Size A2: 2x M25 and 3xM32
Size A3: 3xM25 and 3xM32
