5. How to Install
2.
3.
The line supply connection is fitted to the line supply switch, if one is included.
5

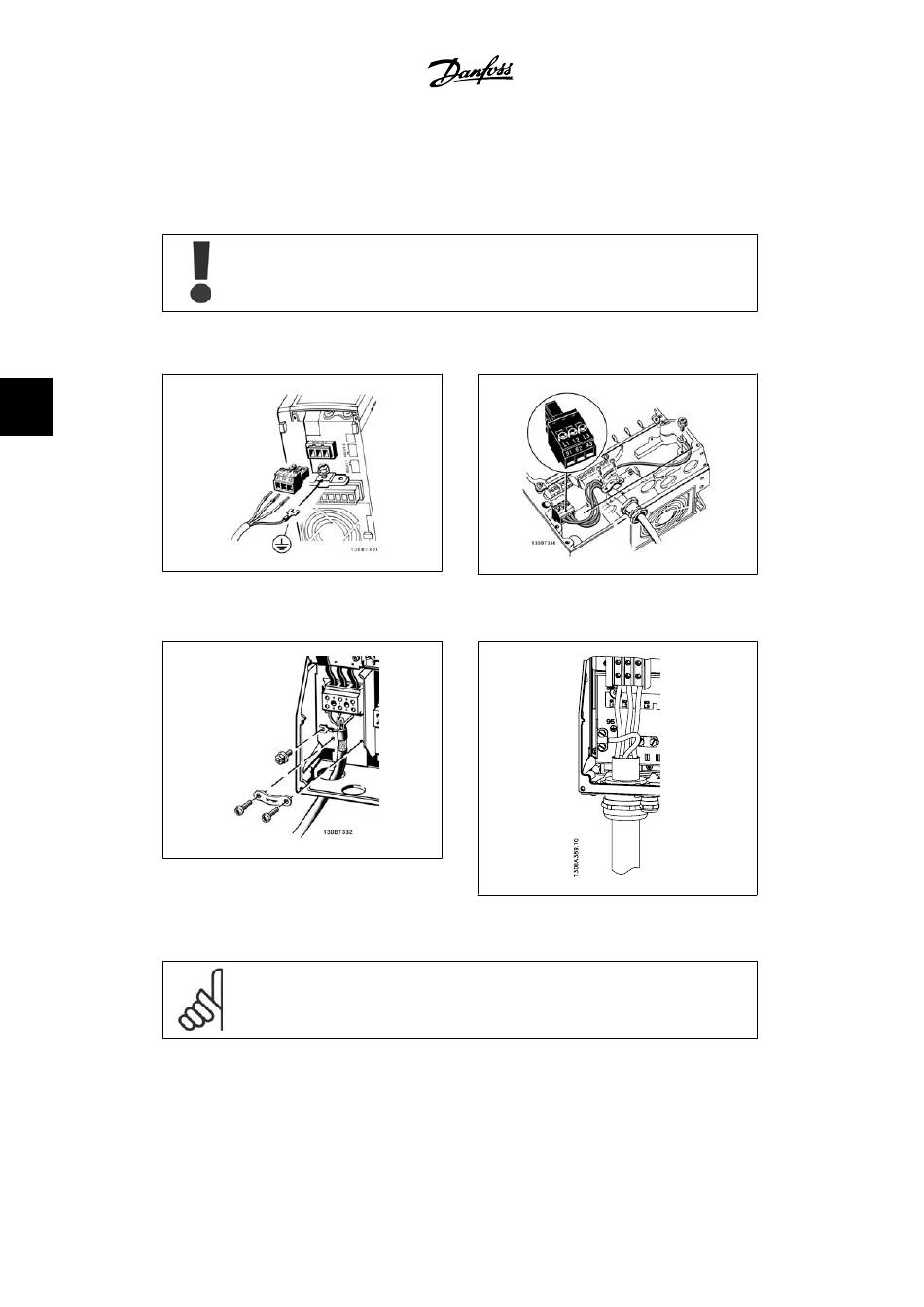

5.1: How to connect to the line supply and
grounding (A2 and A3 enclosure).
5.3: How to connect to the line supply and
grounding (B1 and B2 enclosure).
86
Place plug connector 91, 92, 93 from the accessory bag onto the terminals labeled LINE
at the bottom of the adjustable frequency drive.
Connect line power wires to the line plug connector.
The ground connection cable cross-section must be at least 0.016 in.
have 2 rated line supply wires terminated separately according to EN 50178.
NOTE
Make sure that the line voltage corresponds to the line voltage of the adjustable
frequency drive nameplate.
MG.20.N2.22 - VLT
5.2: How to connect to the line supply and
grounding (A5 enclosure).
5.4: How to connect to the line supply and
grounding (C1 and C2 enclosure).
® is a registered Danfoss trademark.
VLT ® AQUA Drive Design Guide
2 [10 mm 2 ] or
