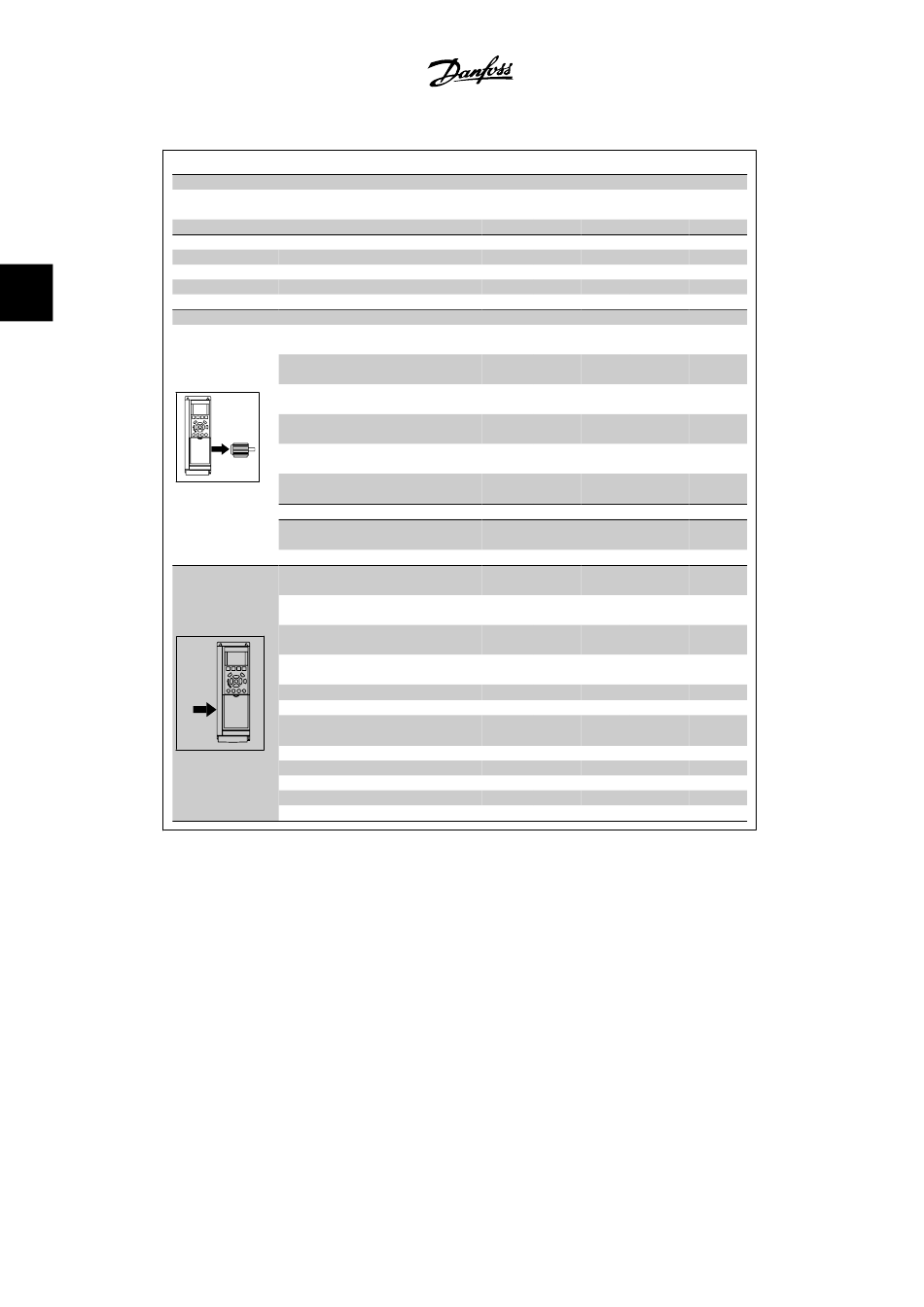

Danfoss VLT AQUA Drive Design Manual page 50

3. VLT AQUA Selection
Normal overload 110% for 1 minute
Line Supply 3 x 380-480 V AC
Adjustable frequency drive
Typical Shaft Output [kW]
Typical Shaft Output [HP] at 460 V
Encapsulation
IP 20
IP 21
3
IP 55
IP 66
Output current
Max. input current
1.
2.
3.
4.
50
Continuous
(3 x 380-440 V) [A]
Intermittent
(3 x 380-440 V) [A]
Continuous
(3 x 440-480 V) [A]
Intermittent
(3 x 440-480 V) [A]
Continuous kVA
(400 V AC) [kVA]
Continuous kVA
(460 V AC) [kVA]
Max. cable size:
(line, motor, brake)
2
[[mm /AWG]
Continuous
(3 x 380-440 V) [A]
Intermittent
(3 x 380-440 V) [A]
Continuous
(3 x 440-480 V) [A]
Intermittent
(3 x 440-480 V) [A]
Max. pre-fuses 1) [A]
Environment
Estimated power loss
at rated max. load [W]
Weight enclosure IP 20 [kg]
Weight enclosure IP 21 [kg]
Weight enclosure IP 55 [kg]
Weight enclosure IP 66 [kg]
Efficiency 4)
For type of fuse, see section Fuses.
American Wire Gauge
Measured using 16.4 ft. [5 m] shielded motor cables at rated load and rated frequency.
The typical power loss is at nominal load conditions and expected to be within +/-15%
(tolerance relates to variety in voltage and cable conditions).
Values are based on a typical motor efficiency (eff2/eff3 border line). Lower efficiency
motors will also add to the power loss in the adjustable frequency drive and vice versa.
If the switching frequency is raised from nominal, the power losses may rise significantly.
LCP and typical control card power consumption values are included. Further options and
customer load may add up to 30W to the losses (though typically only 4W extra for a
fully loaded control card, or options for slot A or slot B, each).
Although measurements are made with state of the art equipment, some measurement
inaccuracy must be allowed for (+/- 5%).
MG.20.N2.22 - VLT
P37K P45K
37 45
50 60
C1 C1
C1 C1
C1 C1
73 90
80.3 99
65 80
71.5 88
50.6 62.4
51.8 63.7
50/1/0
66 82
72.6 90.2
59 73
64.9 80.3
100 125
698 843
4)
45 45
45 45
45 45
0.98 0.98
® is a registered Danfoss trademark.
VLT ® AQUA Drive Design Guide
P55K P75K P90K
55 75 90
75 100 125
C1 C2 C2
C1 C2 C2
C1 C2 C2
106 147 177
117 162 195
105 130 160
116 143 176
73.4 102 123
83.7 104 128
104 128
96 133 161
106 146 177
95 118 145
105 130 160
160 250 250
1083 1384 1474
45 65 65
45 65 65
45 - -
0.98 0.98 0.99
