COMMUNICATIONS - Metasys SUBHEAD

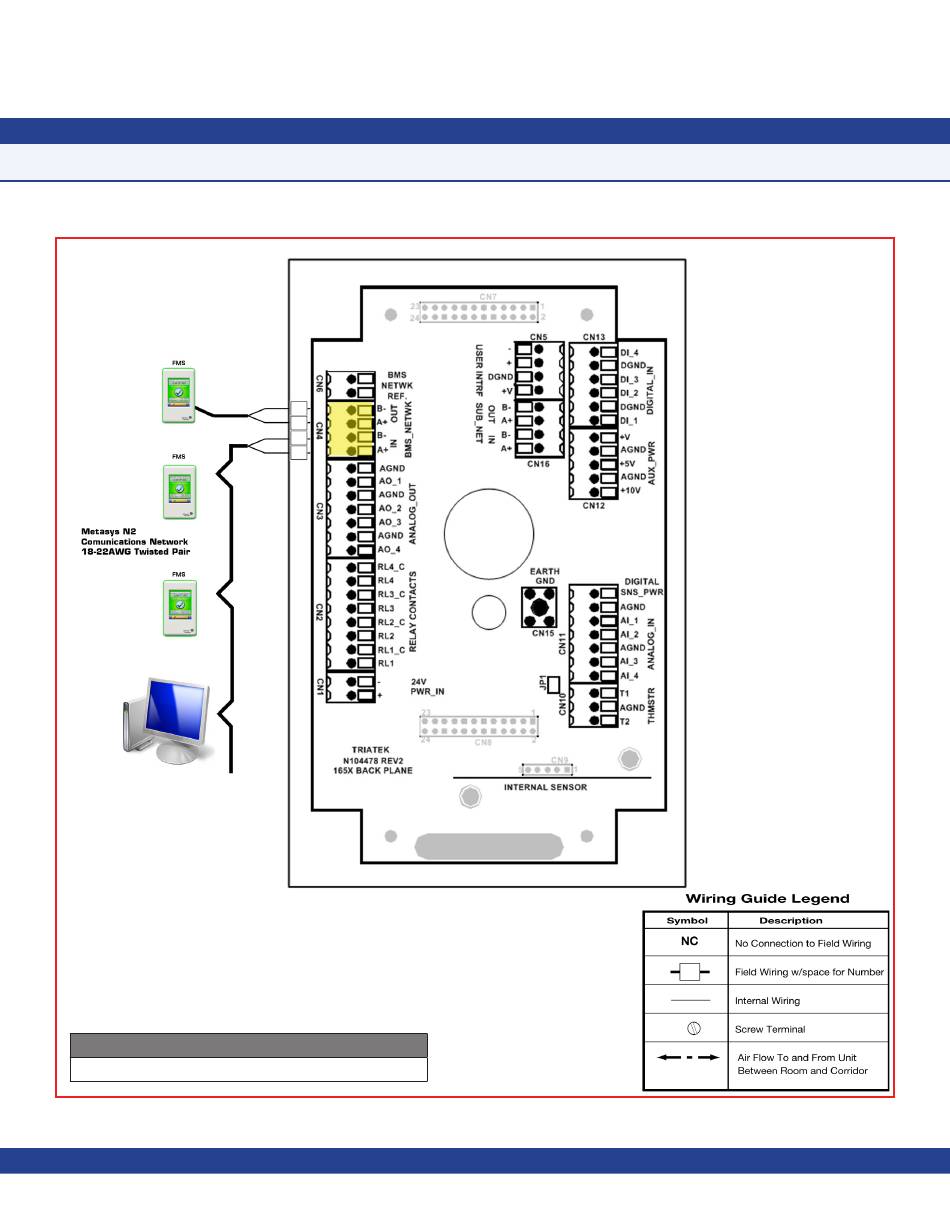

Wiring
NOTE: For optimum network communications, the reference
signal (REF) must be connected to the "NETWK REF"
terminals at the backplane.
Controller Configuration Dipswitch Settings
S3 - 7 = ON, S3 - 8 = OFF (Metasys N2 Open protocol selected)
N2 Open
®
- 37 -
