Analog Output To Electric And Pneumatic Damper Actuator Illustrations (Internal Sensor Model) - Johnson Controls FMS-1655 Series Installation Manual

MOUNTING/WIRING - INTERNAL SENSOR

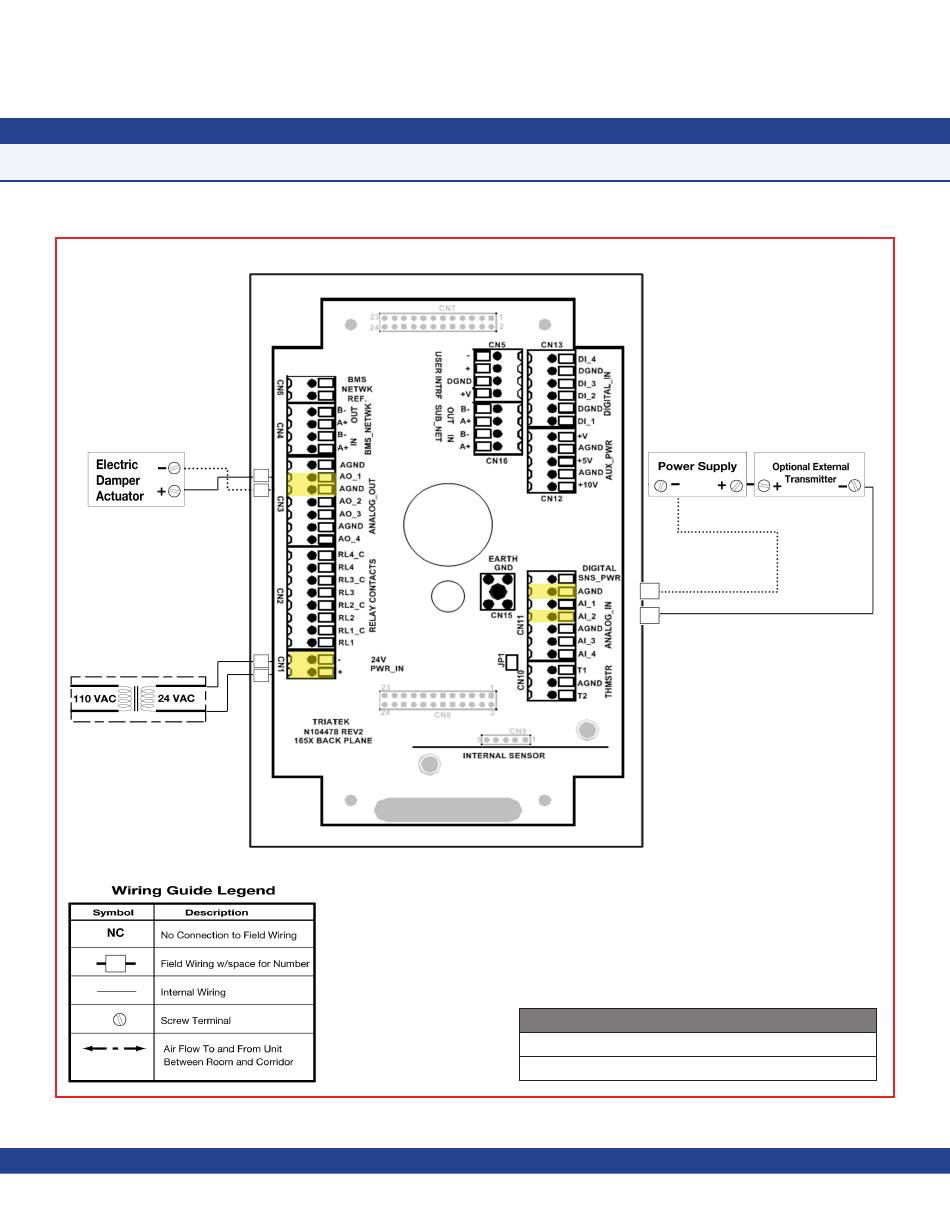

Analog Output to Electric Damper Actuator
Step Down
Isolation Transformer
(provided with FMS Controller)
Controller Configuration Dipswitch Settings
S1 - 2 = ON, S1 - 6 = OFF (AI - 2 set as 4 - 20mA Input)
S4 - 1 = ON (AO - 1 set as Voltage Output)
