MOUNTING/WIRING

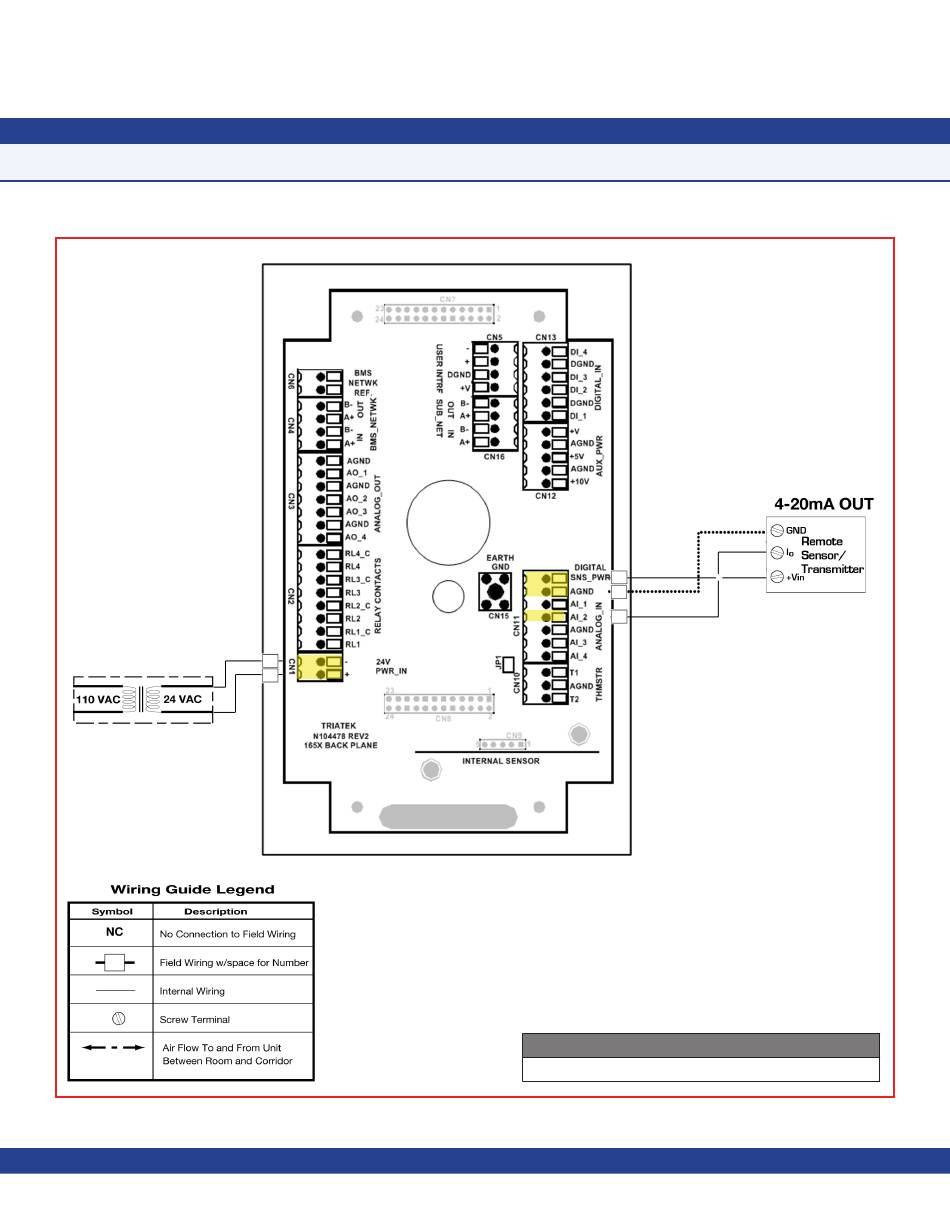

Adding Remote Pressure Sensor with 4-20mA Out to Internal Sensor Model
Step Down
Isolation Transformer
(provided with FMS Controller)
Controller Configuration Dipswitch Settings
S1 - 2 = ON, S1 - 6 = OFF (AI - 2 set as 4 - 20mA Input)
-
19
-
