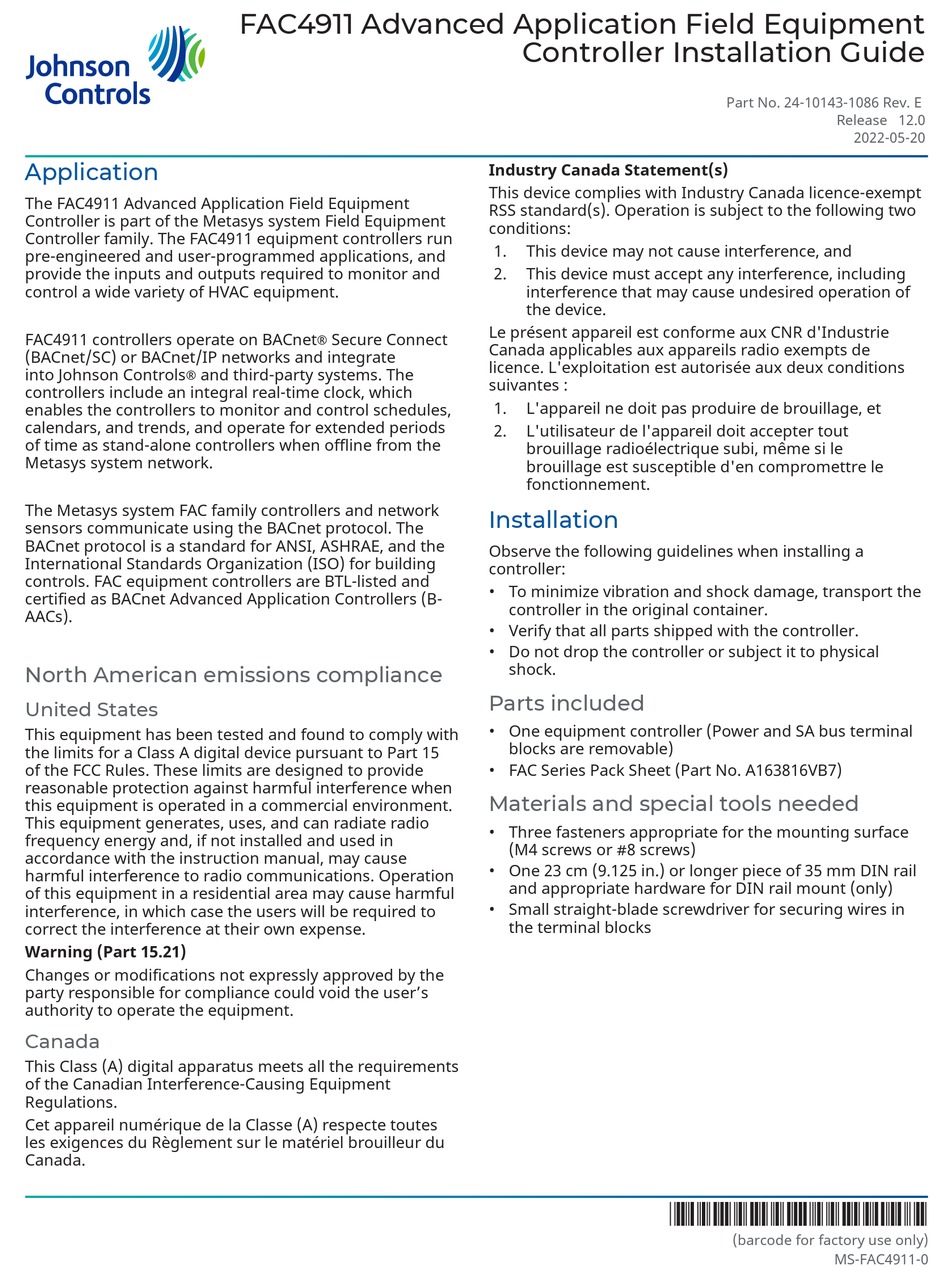

Johnson Controls FAC4911 Installation Manual

Application

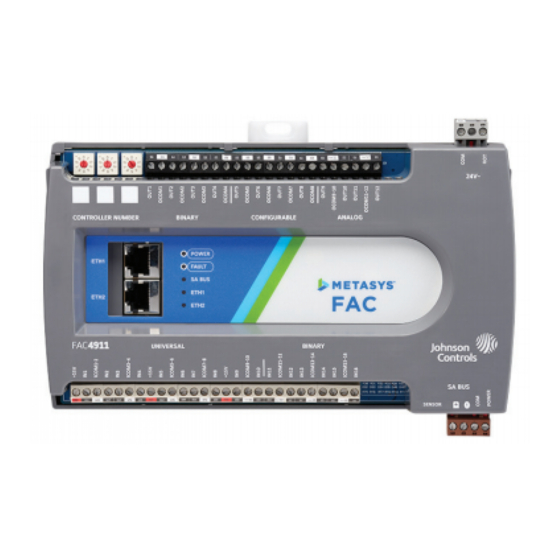

The FAC4911 Advanced Application Field Equipment
Controller is part of the Metasys system Field Equipment
Controller family. The FAC4911 equipment controllers run
pre-engineered and user-programmed applications, and
provide the inputs and outputs required to monitor and
control a wide variety of HVAC equipment.
FAC4911 controllers operate on BACnet
(BACnet/SC) or BACnet/IP networks and integrate
into Johnson Controls and third-party systems. The
®
controllers include an integral real-time clock, which
enables the controllers to monitor and control schedules,
calendars, and trends, and operate for extended periods
of time as stand-alone controllers when offline from the
Metasys system network.
The Metasys system FAC family controllers and network
sensors communicate using the BACnet protocol. The
BACnet protocol is a standard for ANSI, ASHRAE, and the
International Standards Organization (ISO) for building
controls. FAC equipment controllers are BTL-listed and
certified as BACnet Advanced Application Controllers (B-
AACs).
North American emissions compliance
United States
This equipment has been tested and found to comply with
the limits for a Class A digital device pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
this equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications. Operation
of this equipment in a residential area may cause harmful
interference, in which case the users will be required to
correct the interference at their own expense.
Warning (Part 15.21)
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
Canada
This Class (A) digital apparatus meets all the requirements
of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la Classe (A) respecte toutes
les exigences du Règlement sur le matériel brouilleur du
Canada.
FAC4911 Advanced Application Field Equipment
Secure Connect
®
Controller Installation Guide
Industry Canada Statement(s)
This device complies with Industry Canada licence-exempt
RSS standard(s). Operation is subject to the following two
conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including
interference that may cause undesired operation of
the device.
Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions
suivantes :
1. L'appareil ne doit pas produire de brouillage, et
2. L'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le
fonctionnement.
Installation
Observe the following guidelines when installing a
controller:
• To minimize vibration and shock damage, transport the
controller in the original container.
• Verify that all parts shipped with the controller.
• Do not drop the controller or subject it to physical
shock.
Parts included
• One equipment controller (Power and SA bus terminal
blocks are removable)
• FAC Series Pack Sheet (Part No. A163816VB7)
Materials and special tools needed
• Three fasteners appropriate for the mounting surface
(M4 screws or #8 screws)
• One 23 cm (9.125 in.) or longer piece of 35 mm DIN rail
and appropriate hardware for DIN rail mount (only)
• Small straight-blade screwdriver for securing wires in
the terminal blocks
Part No. 24-10143-1086 Rev. E
Release 12.0
*24101431086E*
(barcode for factory use only)
MS-FAC4911-0
2022-05-20
