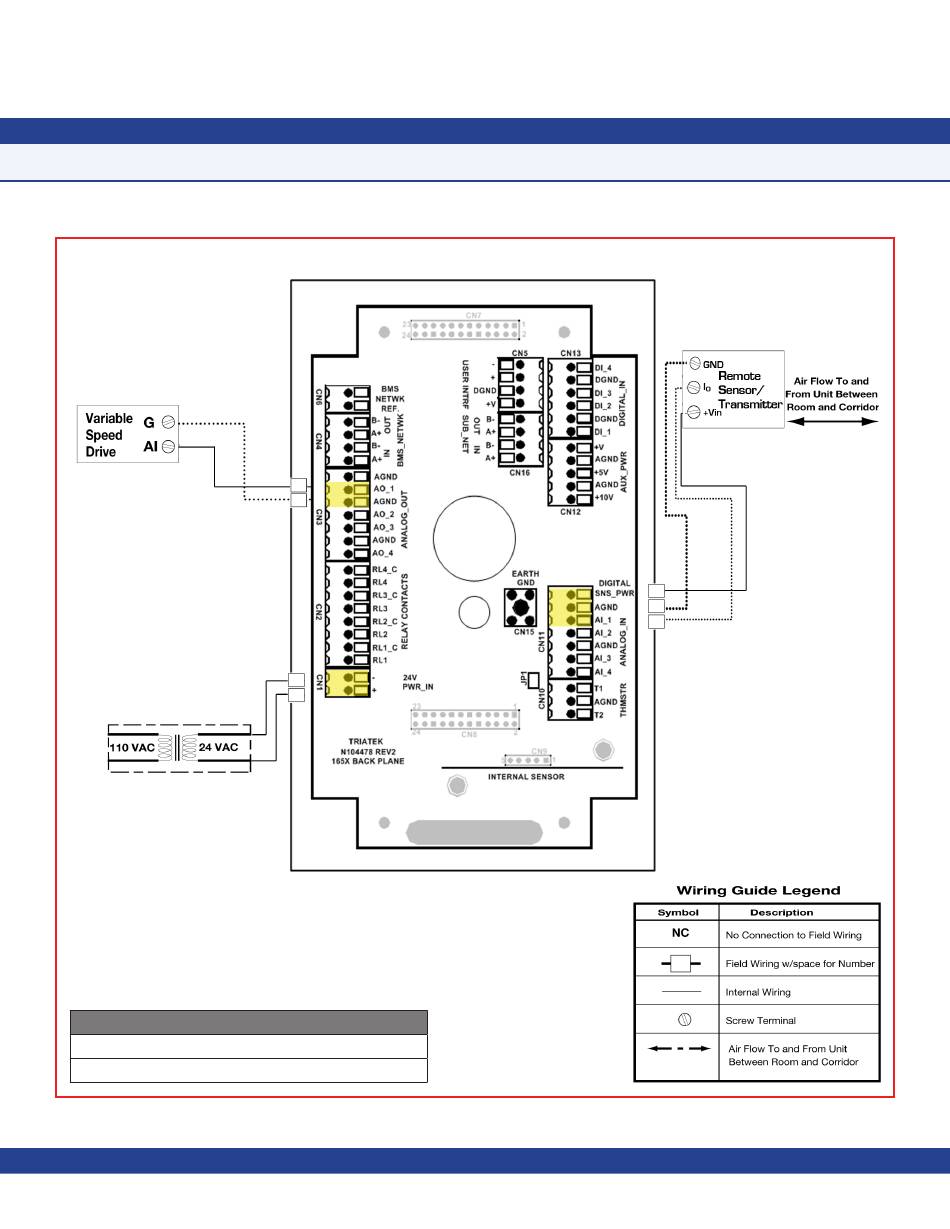

Analog Output To Variable Speed Drive Illustration - Johnson Controls FMS-1655 Series Installation Manual

Step Down
Isolation Transformer
(provided with FMS Controller)
Controller Configuration Dipswitch Settings
S1 - 1 = ON, S1 - 5 = OFF (AI - 1 set as 20mA Input)
S4 - 1 = ON (AO - 1 set as Voltage Output)
Due to continuous improvement, TRIATEK reserves the right to change product specifications without notice.
MOUNTING/WIRING - REMOTE SENSOR
Analog Output to Variable Speed Drive
- 18 -
