Relay Output 2 Illustration - Johnson Controls FMS-1655 Series Installation Manual

Step Down
Isolation Transformer
(provided with FMS Controller)
*

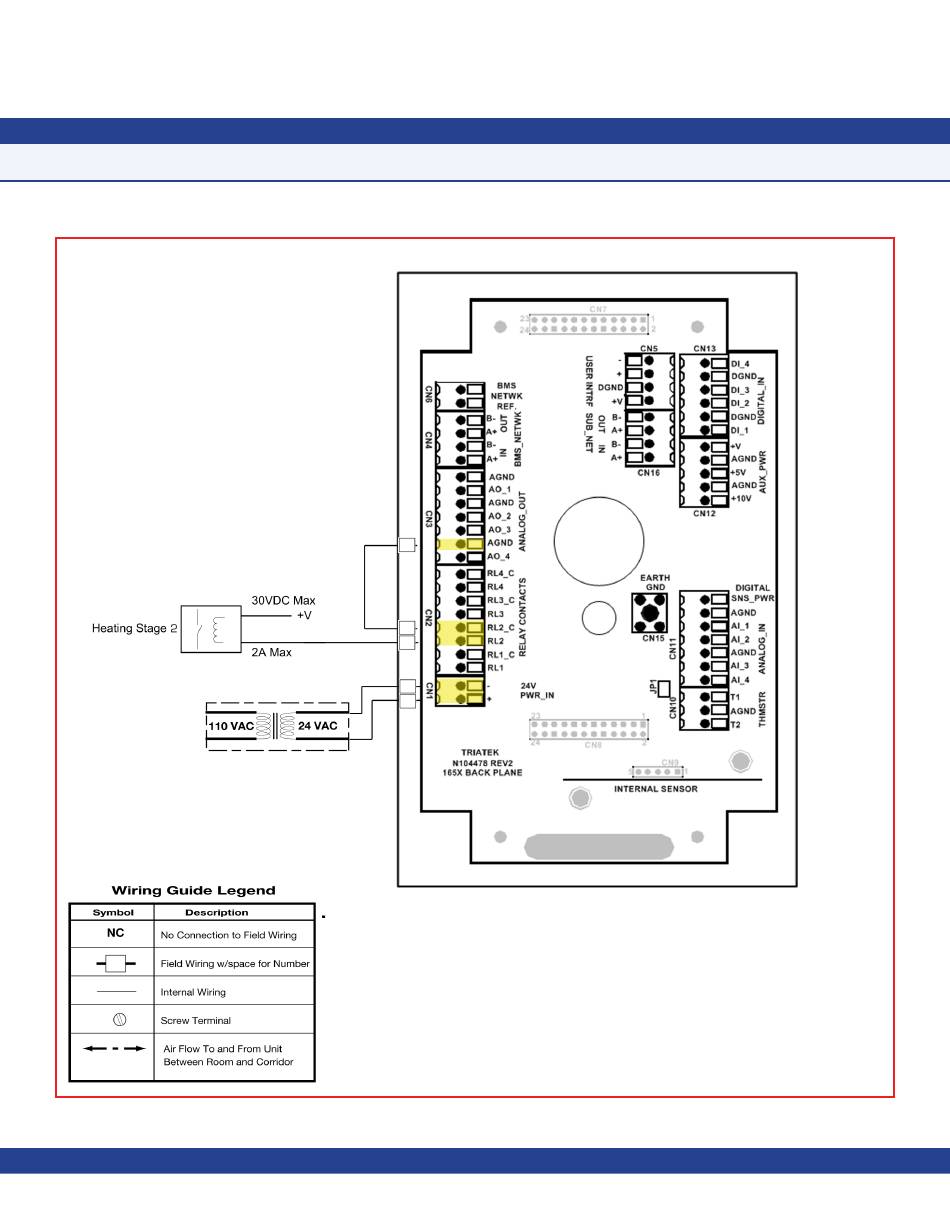

The above example associates Heating State 2 with contacts
RL2 and RL2_C for illustrative purposes only. In fact, any of the
four RL#s (and the corresponding RL#_C) can be used.
- 32 -
MOUNTING/WIRING
Relay Output 2
