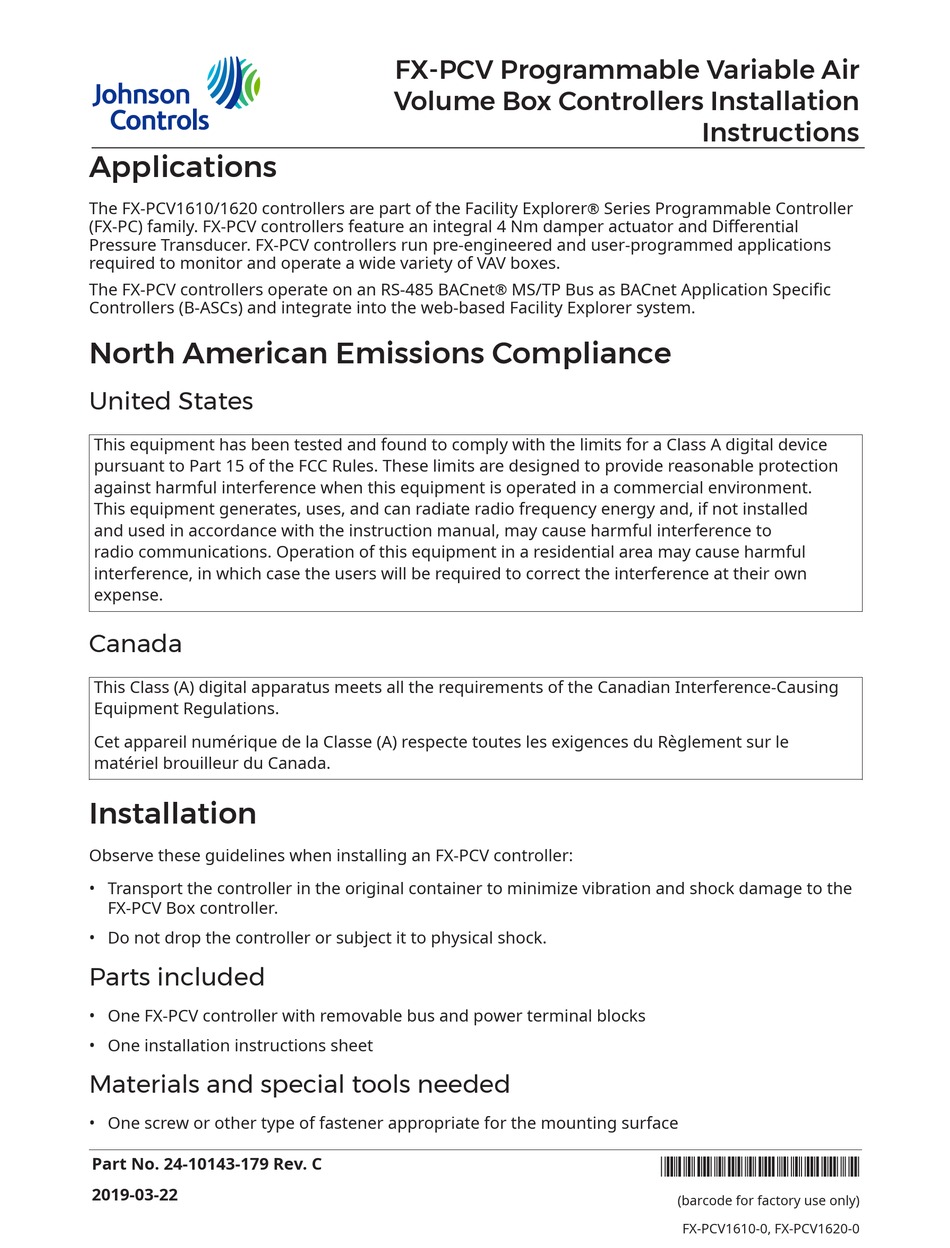

The FX-PCV1610/1620 controllers are part of the Facility Explorer
(FX-PC) family. FX-PCV controllers feature an integral 4 Nm damper actuator and Differential
Pressure Transducer. FX-PCV controllers run pre-engineered and user-programmed applications
required to monitor and operate a wide variety of VAV boxes.
The FX-PCV controllers operate on an RS-485 BACnet
Controllers (B-ASCs) and integrate into the web-based Facility Explorer system.
North American Emissions Compliance
United States
This equipment has been tested and found to comply with the limits for a Class A digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when this equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area may cause harmful
interference, in which case the users will be required to correct the interference at their own
expense.
Canada
This Class (A) digital apparatus meets all the requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la Classe (A) respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
Installation
Observe these guidelines when installing an FX-PCV controller:
• Transport the controller in the original container to minimize vibration and shock damage to the
FX-PCV Box controller.
• Do not drop the controller or subject it to physical shock.
Parts included
• One FX-PCV controller with removable bus and power terminal blocks
• One installation instructions sheet
Materials and special tools needed
• One screw or other type of fastener appropriate for the mounting surface
Part No. 24-10143-179 Rev. C
2019-03-22
FX-PCV Programmable Variable Air
Volume Box Controllers Installation
MS/TP Bus as BACnet Application Specific
®
Instructions
Series Programmable Controller
®
*2410143179C*
(barcode for factory use only)
FX-PCV1610-0, FX-PCV1620-0
Advertisement
Table of Contents
Related Manuals for Johnson Controls FX-PCV Series
Summary of Contents for Johnson Controls FX-PCV Series
- Page 1 FX-PCV Programmable Variable Air Volume Box Controllers Installation Instructions Applications The FX-PCV1610/1620 controllers are part of the Facility Explorer Series Programmable Controller ® (FX-PC) family. FX-PCV controllers feature an integral 4 Nm damper actuator and Differential Pressure Transducer. FX-PCV controllers run pre-engineered and user-programmed applications required to monitor and operate a wide variety of VAV boxes.
- Page 2 • Several 6 mm (1/4 in.) female spade terminals for input and output wiring • Small straight-blade screwdriver for securing wires in the terminal blocks Mounting Observe these guidelines when mounting an FX-PCV. Important: When the air supply to the VAV box is below 10°C (50°F), make sure that any condensation on the VAV box, particularly on the damper shaft, does not enter the FX- PCV electronics.
- Page 3 Figure 1: Typical damper end shaft Iocns 4. Note the direction, clockwise (CW) or counterclockwise (CCW), required to close the damper. Grasp the damper shaft firmly with pliers and either manually close the damper (for 90° boxes) or manually open the damper (for 45° or 60° boxes). 5.
-
Page 4: Wiring Diagram
Wiring diagram Figure 2: FX-PCV Controller physical features and wiring terminations Table 1: FX-PCV Controller physical features Number Feature Pneumatic tubing Controller coupler Coupler bolt Manual override switch Binary Outputs (24 VAC Triacs) Configurable outputs can be defined as: • Voltage Analog Output (0-10 VDC) •... - Page 5 Table 1: FX-PCV Controller physical features Number Feature Device Address DIP Switch Block Universal Input can be defined as: Voltage Analog Input (0-10 VDC) • Resistive Analog Inputs (0-600k ohm) • 0-2K Potentiometer • RTD: 1k Nickle 1k Platinum or A99B SI •...
-
Page 6: Input And Output Terminals
Input and Output terminals The input spade terminals are located on the side of the FX-PCV near the device address switch. The output spade terminals are located on the opposite side of the controller near the power supply terminal block. See Table 2 for more information. FC bus terminal block The FC Bus terminal block is a blue, removable, 4-terminal plug that fits into a board-mounted jack. -
Page 7: Sensor Port
Sensor port The Sensor (SA Bus) port on the left side of the FX-PCV (Figure 2) is an RJ-12, 6-position modular jack that provides a connection for the VAV Balancing Tool, specified network sensors, or other SA Bus devices with RJ-12 plugs. The Sensor port is connected internally to the SA Bus terminal block. -
Page 8: Input And Output Wiring Guidelines
To wire the FX-PCV controller: 1. Terminate wiring per engineering drawings. 2. Wire network sensors and other devices to the FX-PCV'sSA Bus. 3. Wire the FC Bus in a daisy chain. 4. Ensure that the FX-PCV’s device address DIP switches are set to the appropriate device address. (See Setting the device address.) - Page 9 Analog Input - Resistive Mode (0– See Guideline A in Table 600k ohm) Internal 12 V, 15k ohm pull up Qualified Sensors: 0–2k potentiometer, RTD (1k Nickel [Johnson Controls sensor], 1k Platinum, and A99B Silicon Temperature Sensor) Negative Temperature Coefficient (NTC) Sensor 10K Type L (10K JCI Type II is equivalent to Type L) or 2.252K Type II...
- Page 10 Table 2: I/O terminal blocks, functions, ratings, requirements, and cables Terminal block Terminal Function, ratings, and To determine wire size label labels requirements and maximum cable length OCOMn Binary Output - 24 VAC Triac (Internal Power) Connects OCOMn to 24~ COM when activated.
- Page 11 Table 2: I/O terminal blocks, functions, ratings, requirements, and cables Terminal block Terminal Function, ratings, and To determine wire size label labels requirements and maximum cable length OCOMn Analog Output Signal Common: Same as (Configurable) All Configurable Outputs defined as OUTn.
-
Page 12: Termination Details
Termination details A set of Johnson Controls termination diagrams provides details for wiring inputs and outputs to the controllers. See the figures in this section for the applicable termination diagrams. Table 4: Termination details Type of field Type of Termination diagrams... - Page 13 Table 4: Termination details Type of field Type of Termination diagrams device Input/ Output 0–10 VDC Output CO or AO to Actuator (External Source) 0–10 VDC Output CO or AO to Actuator (Internal Source) Analog Output CO or AO (Voltage) 24 VAC Triac CO or AO Output (Switch...
-
Page 14: Maximum Cable Length Versus Load Current
Table 4: Termination details Type of field Type of Termination diagrams device Input/ Output Incremental Control to Actuator (Switch Low, Internal Source) Network Stat with SA Bus Phone Jack (Fixed Address = 199) Network Stat SA Bus with Terminals Addressable Network Stat with SA Bus Terminals (Fixed... -
Page 15: Maximum Wire Length By Current And Wire Size Figure
Maximum wire length by current and wire size figure Figure 7: Maximum wire length by current and wire size FC and SA bus and supply power wiring guidelines Table 5 provides information about terminal block functions, ratings, and requirements. Table 5 also provides wire size, cable type, and cable length guidelines for wiring the FX-PCV communication buses and supply power. -
Page 16: Communication Bus And Supply Power Table
Communication bus and supply power table Table 5: Communication bus and supply power terminal blocks, functions, ratings, requirements, and cables Terminal Terminal labels Function, electrical ratings/ Recommended cable block/Port Requirements type label FC Bus Communications 0.6 mm (22 AWG) FC BUS stranded, 3-wire twisted, shielded cable Signal Reference (Common) for bus... -
Page 17: Setup And Adjustments
Setup and adjustments Important: Electrostatic discharge can damage controller components. Use proper electrostatic discharge precautions during installation, setup, and servicing to avoid damaging the controller. Setting the device address FX-PCV controllers are master devices on BACnet MS/TP (SA or FC) buses. Before operating controllers on a bus, you must set a valid and unique device address for each controller on the bus. -
Page 18: Setting The Eol Switch
Refer to the FX-PC Series Controllers MS/TP Communications Bus Technical Bulletin (LIT-12011670) for more information on field controller device addresses and how to set them on MS/TP buses. Table 6 describes the valid FC Bus and SA Bus devices addresses for Johnson Controls MS/TP ®... -
Page 19: Troubleshooting
On Steady = Communication lost, waiting to join communication ring Repair information If the FX-PCV controller fails to operate within its specifications, contact the Johnson Controls Repair Center in Louisville, Kentucky, at 1-502-671-7312. Accessories Use Table 8 to order accessories. -
Page 20: Technical Specifications
Table 8: FX-PCV accessories (order separately) Product code number Description AP-TBK4SA-0 Replacement MS/TP SA Bus Terminal, 4-Position Connector, Brown (Bulk Pack of 10) AP-TBK4FC-0 Replacement MS/TP FC Bus Terminal, 4-Position Connector, Blue (Bulk Pack of 10) AP-TBK3PW-0 Replacement Power Terminal, 3-Position Connector, Gray (Bulk Pack of TL-BRTRP-0 BACnet IP to MS/TP Router for Connecting a Computer with CCT to MS/ TP Field Controllers... - Page 21 Table 9: FX-PCV16 Controllers Controller Addressing DIP switch set; valid controller device addresses 4–127 (Device addresses 0–3 and 128–255 are reserved and not valid controller addresses.) Communications Bus BACnet MS/TP, RS-485: 3-wire FC Bus between the supervisory controller and controllers 4-wire SA Bus between FX-PCV controller, network sensors and other sensor/actuator devices;...
-
Page 22: Points Of Single Contact
NO. 32 CHANGJIJANG RD NEW DISTRICT 45143 ESSEN MILWAUKEE WI 53202 WUXI JIANGSU PROVINCE 214028 GERMANY CHINA © 2019 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision and are subject to change without notice. www.johnsoncontrols.com...
