Step Down
Isolation Transformer
(provided with FMS Controller)

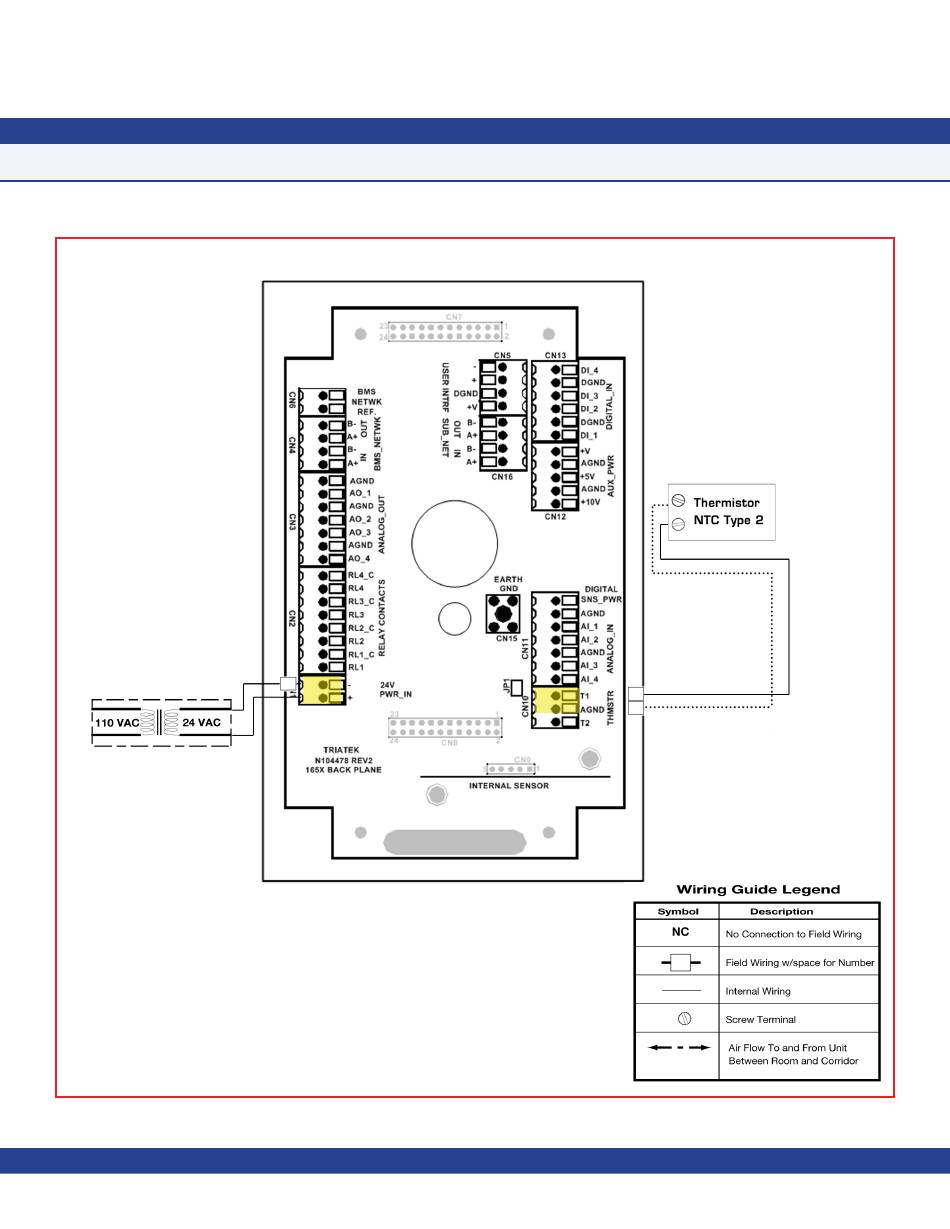

* The above example associates the Thermistor with contacts T1
and AGND for illustrative purposes only. In fact, either of the two
T#s can be used.
Due to continuous improvement, TRIATEK reserves the right to change product specifications without notice.
Analog Input to Temperature Sensor
-
24
-
MOUNTING/WIRING
**
*
