Wiring communications to Metasys N2 open

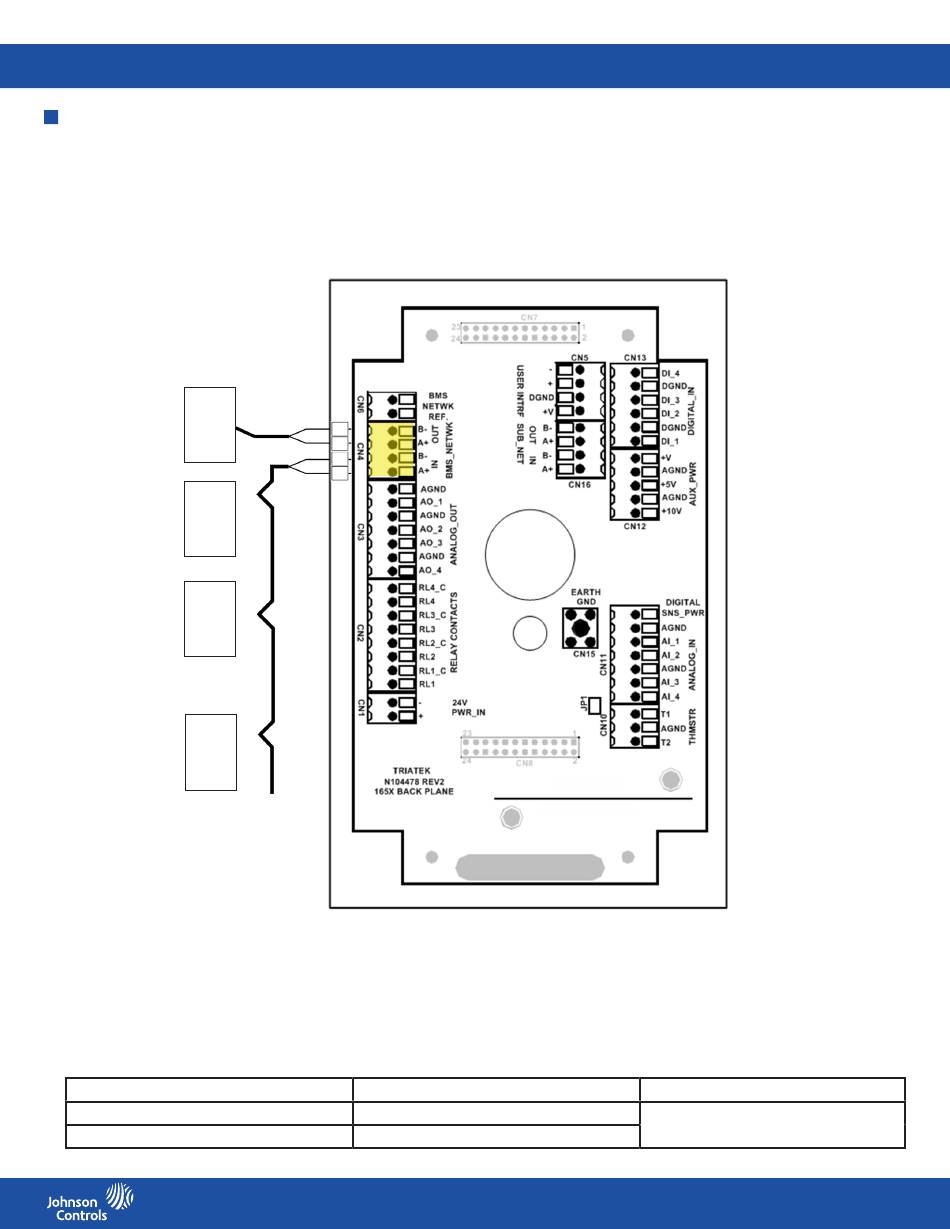

Figure 33: Metasys N2 open wiring diagram
Controller
Controller
Controller
Supervisory Device
Note: For optimum network communications, connect the reference signal REF to the NETWK REF terminals at the backplane.
Table 19: Controller configuration DIP switch settings
DIP switch
S3 position 7
S3 position 8
ON or OFF
ON
OFF
39
Protocol
Metasys N2 protocol selected
