Digital Input To Door Switch Illustration - Johnson Controls FMS-1655 Series Installation Manual

A switch having normally-open or normally close contacts may be used with the FMS-1655 to serve as a timed alarm buzzer inhibit, when the
room door has been opened. An optional door switch may be purchased from JCI for this specific purpose.
After the switch has been installed at the door and connected to the FMS unit, its operation may be programmed as described on page 39.
Step Down
Isolation Transformer
(provided with FMS Controller)
Due to continuous improvement, TRIATEK reserves the right to change product specifications without notice.

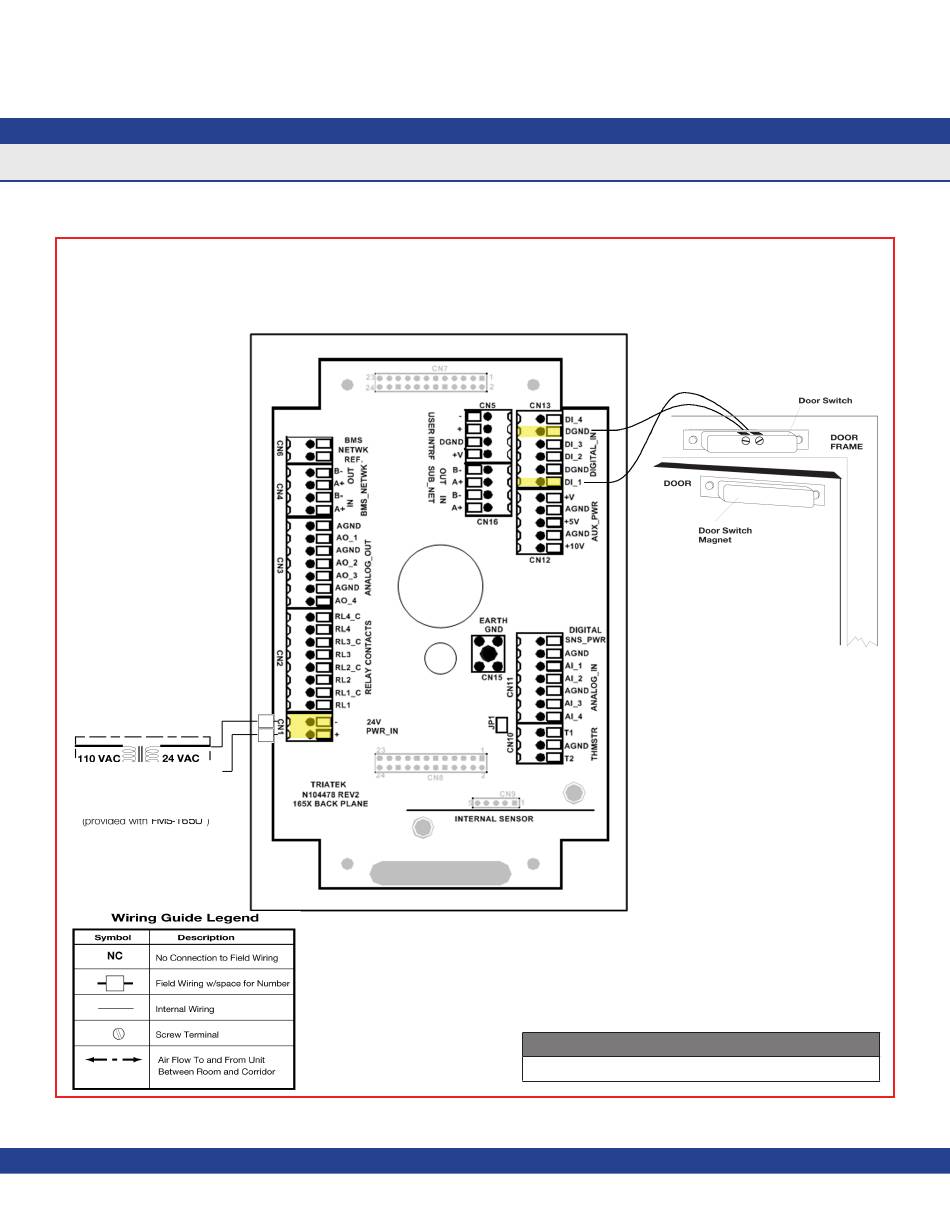

Digital Input to Door Switch
Controller Configuration Slideswitch Settings
S5 = Left (Active - Low Digital Input)
- 26 -
MOUNTING/WIRING
