Johnson Controls FMS-1655 Series Installation Manual page 21

Step Down
Isolation Transformer
(provided with FMS Controller)
Controller Configuration Dipswitch Settings
S1 - 2 = ON, S1 - 6 = OFF (AI - 2 set as 4 - 20mA Input)
S4 - 1 = ON (AO - 1 set as Voltage Output)
Due to continuous improvement, TRIATEK reserves the right to change product specifications without notice.

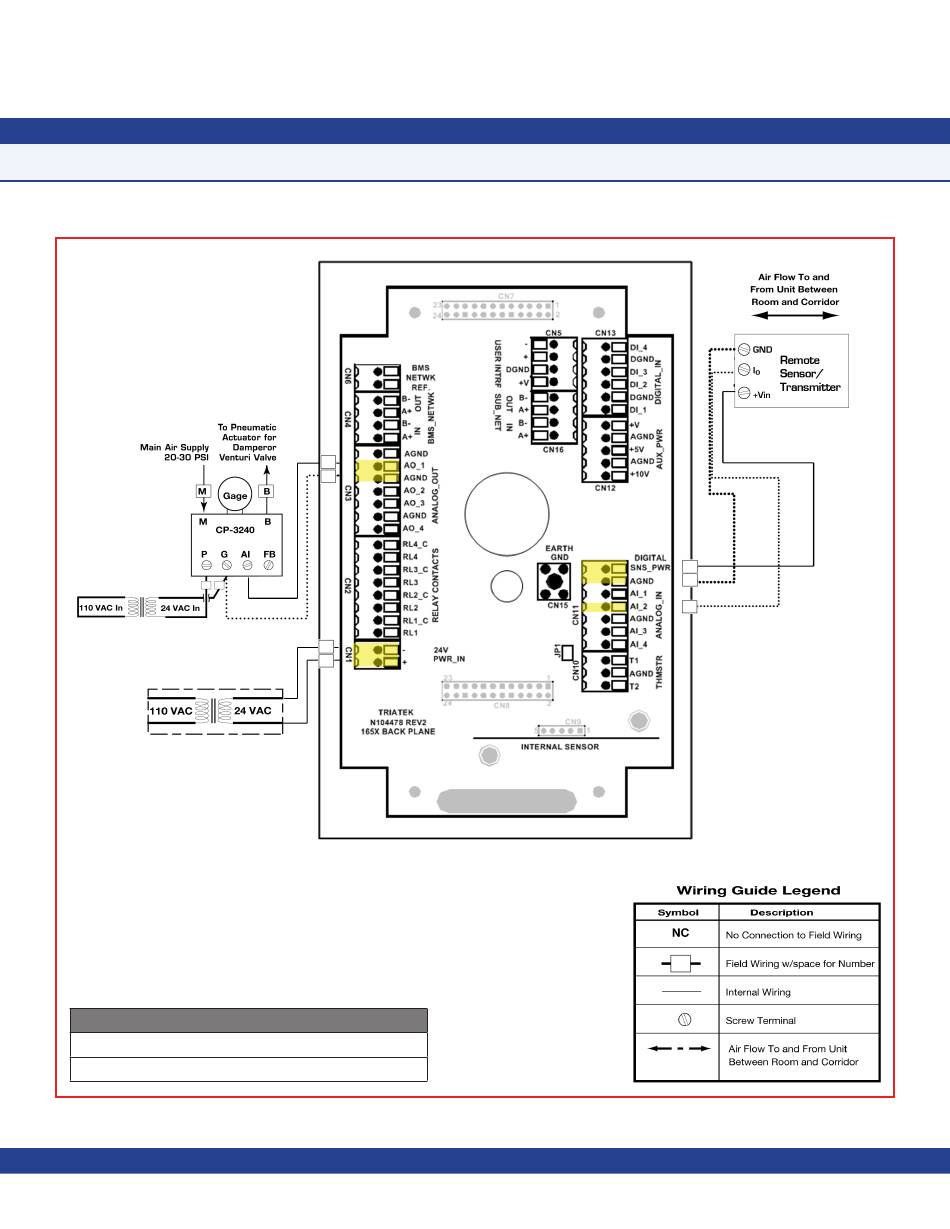

MOUNTING/WIRING - INTERNAL SENSOR
Analog Output to Pneumatic Damper Actuator
- 14 -
Optional remote sensor
