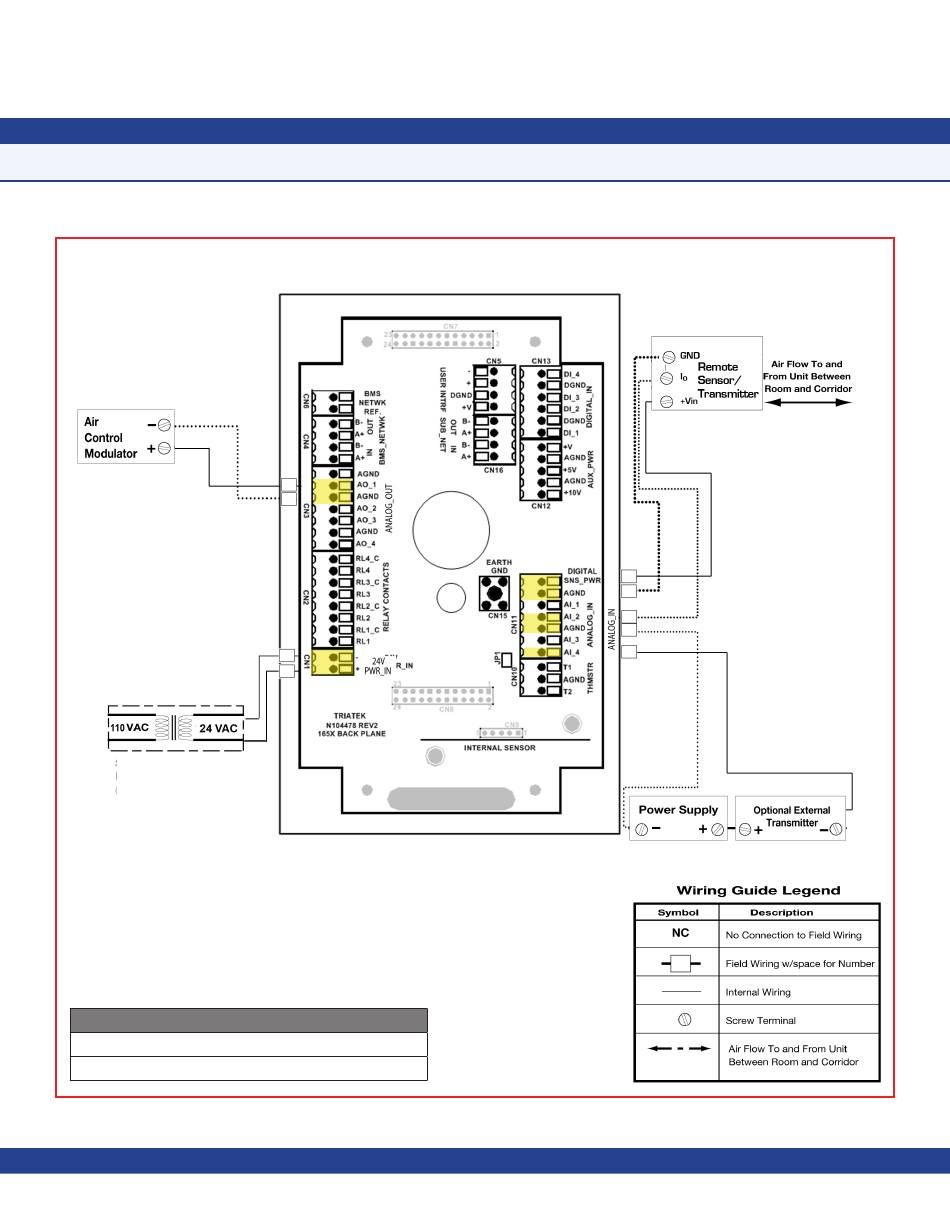

Analog Output To Modulated Air Controller Illustration (Internal Sensor Model) - Johnson Controls FMS-1655 Series Installation Manual

Step Down
Isolation Transformer
(provided with FMS Controller)
Controller Configuration Dipswitch Settings
S1 - 2 = ON, S1 - 6 = OFF (AI - 2 set as 4 - 20mA Input)
S1 - 4 = ON, S1 - 8 = OFF (AI - 4 set as 4 - 20mA Input
Due to continuous improvement, TRIATEK reserves the right to change product specifications without notice.
MOUNTING/WIRING - INTERNAL SENSOR
Analog Output to Modulated Air Controller
- 16 -
Optional remote sensor
