FW-14 overview
The FW-14 is an input/output controller with IP network,
Ethernet, and Wi-Fi connectivity. Use this guide to
complete the following tasks:
•
Understand the controller components.
•
Mount the controller on a DIN rail or enclosure base
plate.

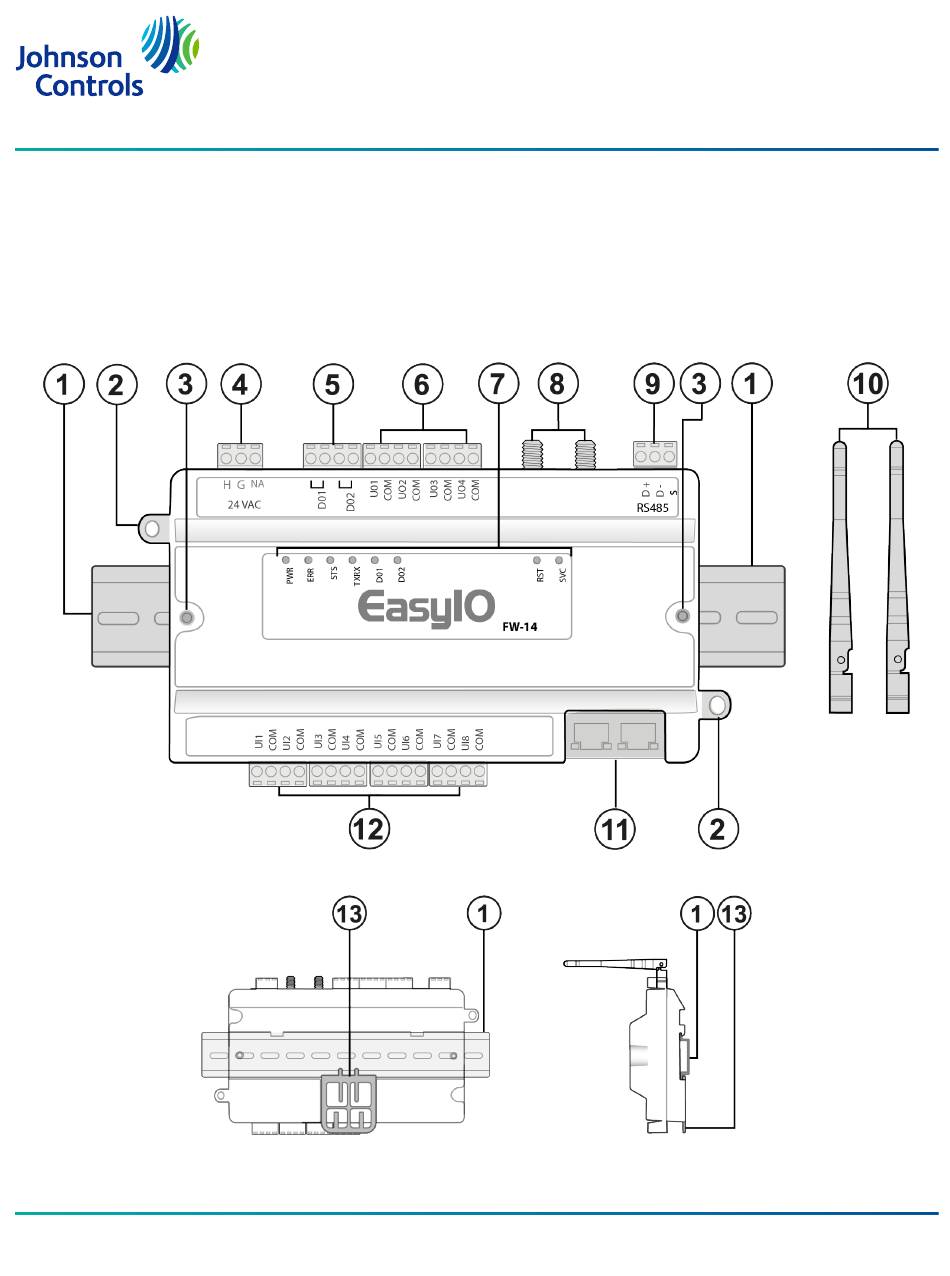

Figure 1: Legend, front view
Figure 2: Legend, back and side view
FW-14 Quick Start Guide
•
Install the antennas.
•
View a wiring diagram of the controller in a system.
•
Connect to the controller with a LAN or Wi-Fi
connection.
•
Connect to the controller with the Controller
Programming Tools (CPT) application.
•
Connect to the controller's web server dashboard with
CPT Graphics.
LIT-12013878
Version 1.0
2023-04-25
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Johnson Controls FW-14
Summary of Contents for Johnson Controls FW-14
- Page 1 Install the antennas. • View a wiring diagram of the controller in a system. The FW-14 is an input/output controller with IP network, • Connect to the controller with a LAN or Wi-Fi Ethernet, and Wi-Fi connectivity. Use this guide to connection.
-
Page 2: Mounting Guidelines
DIN rail. Figure 6: Placing the controller on the DIN rail Parts included • One FW-14 controller with removable terminal blocks • Two Wi-Fi 2.4 Ghz, 2.2dBi antennas • One Pack Sheet... -
Page 3: Installing The Antennas
Note: For a secure connection hold the metal part of the RP-SMA male connector. A poor connection reduces reception when you tighten the antennas to the female RP-SMA jack. Figure 8: Screwing on the antennas FW-14 Quick Start Guide... - Page 4 CAUTION FW-14 basic input, output, power, and Complete the wiring and check all wiring connections serial device wiring setup before you connect the power supply to the controller,...
- Page 5 Figure 11: FW-14 wiring diagram Figure 12: 24 VAC Class 2 transformer power input Callout Description Input power General purpose digital output Voltage-controlled actuator Connection to serial devices Voltage transmitter 0 V to 10 V or 0 V to 5 V...
- Page 6 22 AWG copper stranded twisted wire up to Field device 100 m (328 ft) in length 20 AWG copper stranded twisted wire up to Controller 100 (328 ft) m in length UI terminal DO terminal COM terminal COM terminal Controller FW-14 Quick Start Guide...
- Page 7 However, when you need to ground the secondary of the 24 VAC transformer, make only one ground connection near the transformer. For more information, see the following figure. Figure 18: Transformer grounding FW-14 Quick Start Guide...
- Page 8 You can connect to your UI jumper setting controller with a device through Ethernet or though Wi-Fi. The FW-14 UI jumper includes 16 sets of UI and supports Note: Use the following procedures to set up both resistance and voltage field devices.
- Page 9 For more information on CPT, Refer to EasyIO CPT User To download the CPT application, contact support Guide (LIT-12013978). for the latest release. Unzip the folder and double-click the cpt.exe file. FW LED states The following table displays the LED's blink rate descriptions: FW-14 Quick Start Guide...
-
Page 10: Troubleshooting
0 V to 10 V output results in an Measure the output and verify that it matches the unwanted offset of up to 1 V. command. Disconnect the connected device and verify the The Common Reference is commanded value is present. incorrect. FW-14 Quick Start Guide... -
Page 11: Technical Specifications
Technical specifications Table 5: FW-14 UL input, output, and communication ratings Description Specification Terminal Power supply • 24 VAC, plus or minus 5% H and G • 24 VDC, plus 20% or minus 15% 12 VA, Class 2 Universal Voltage... - Page 12 Compliance Table 7: FW-14 Compliance North America: UL 916 Energy Management Equipment; FCC Class B, Part 15, Subpart C 15.247 This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). This device complies with part 15 of the FCC Rules.
-
