HAND BRAKE

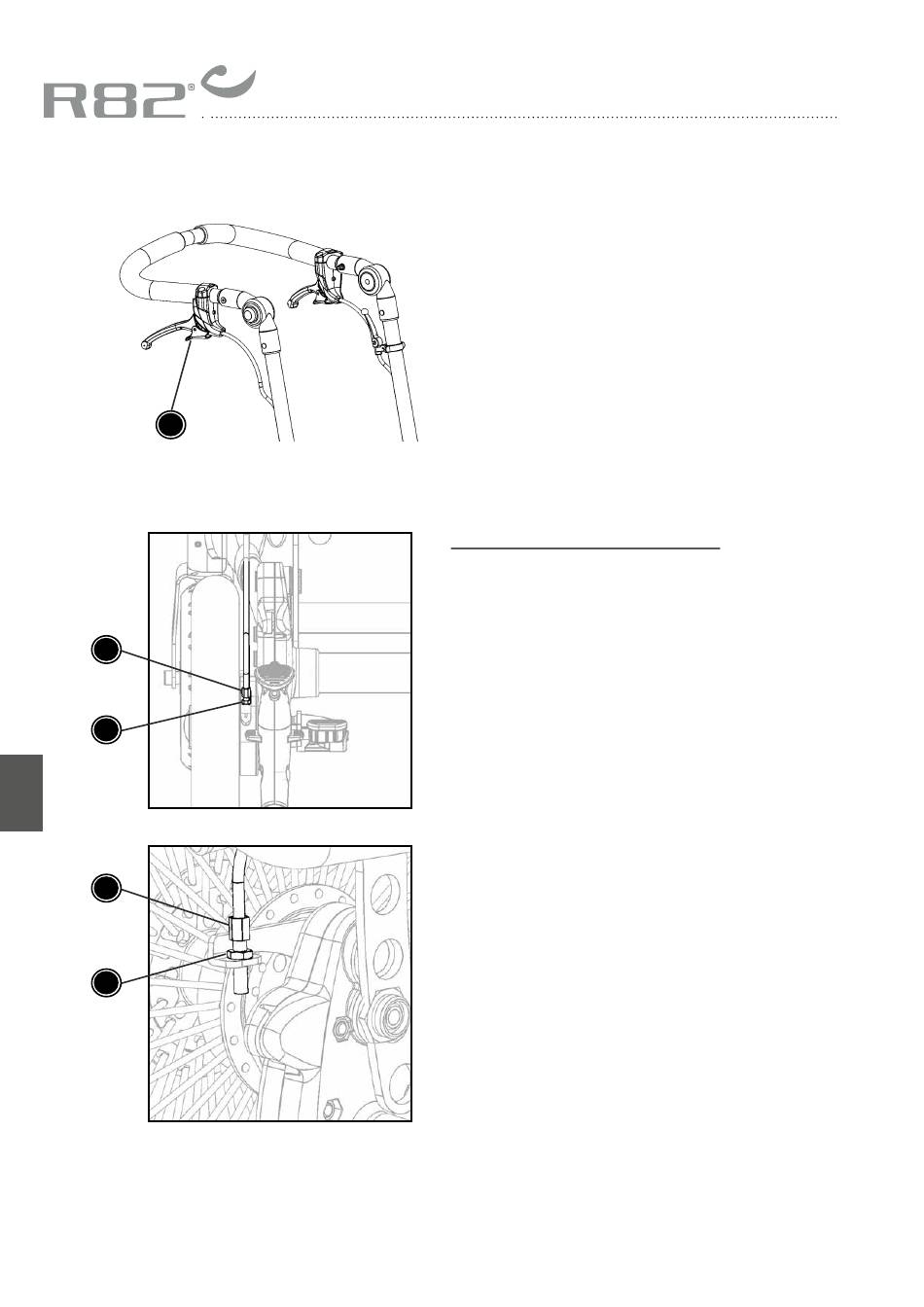

The hand brake handles are installed on the
push brake and are operated by the helper.
* Squeeze the handle to activate the brake.
* Pull the red handle at the same time releasing
the main handle (A) to disengage the brake.
Adjustment of the hand brake:
12,5"
The strength of the brake can be adjusted by
doing following:
1) Loosen the nut (B) with a 8 mm spanner.
2) Turn the cable tightener (C) up to tighten the
brake or turn it down to loosen the brake
3) Tighten the nut (B) again.
