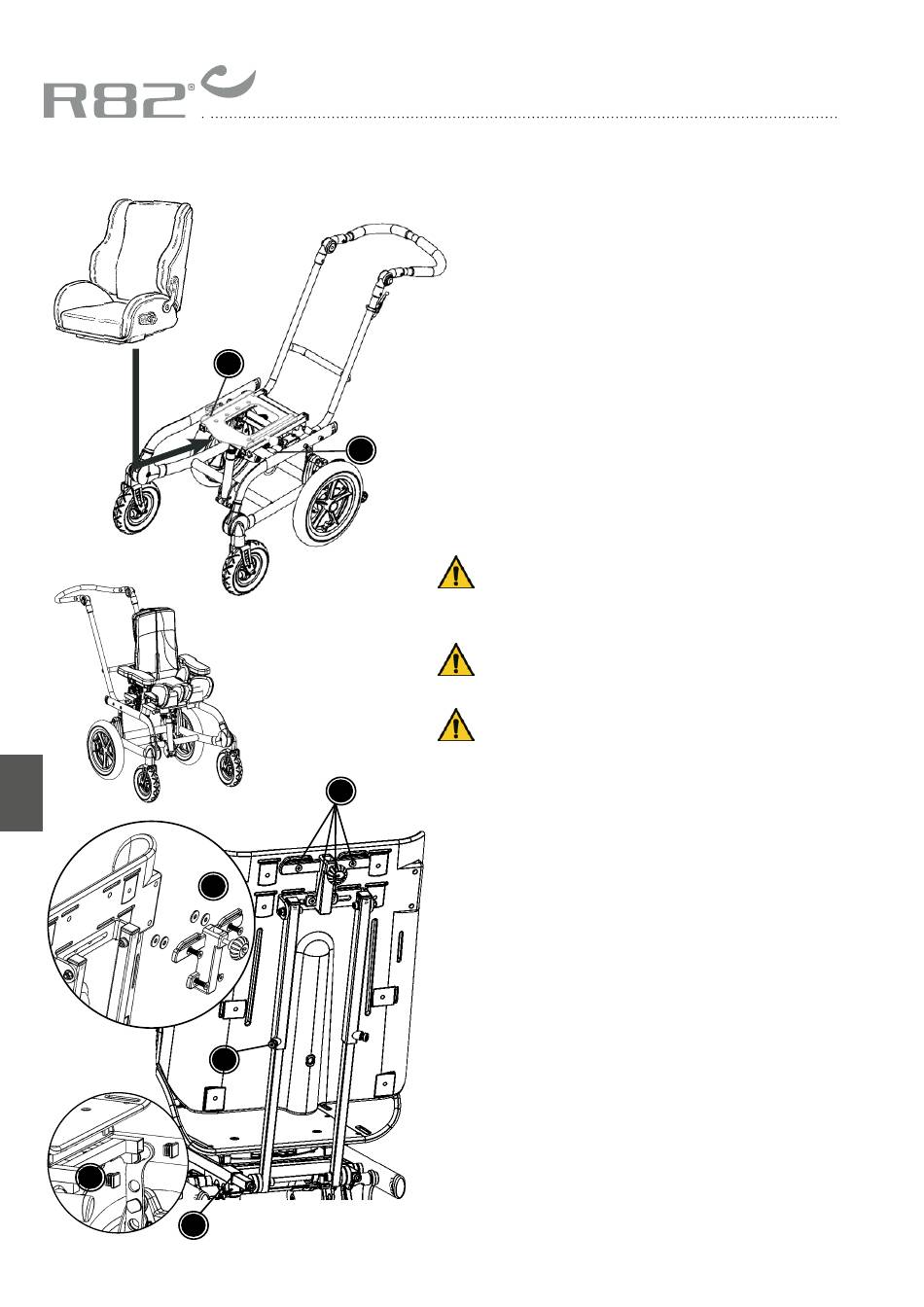

MOUNTING A X:PANDA
OR PANDA FUTURA
SEAT IN AN INTERFACE
Mount an x:panda or Panda Futura seat on Multi
Frame:
The seat is slid into in the adapter and should
be pushed back until it "clicks". Then pull out
the green knob and push the seat back until the
green knob (A) clicks into the second safety hole.
Lock with the red handle (B) on the opposite side
by levering the red handle towards the rear of
the frame.
Do not use the first hole the seat is "clicking"
into. This is a safety hole, that catches the
seat if the handle (B) is released by mistake.
Always check that the seat is securely
mounted before placing a child in the chair
When mounting the seat, please be carefull
not to get fingers caught!
BACK FIXTURE WHEN
USING PANDA FUTURA
SZ.3+4 ON MULTI
FRAME IN VEHICLE
1. Dismount the plastic plugs located on the
Multi Frame (A)
2. Dismount the headrest fitting (B)
3. Fasten the back fixture in the Multi Frame slide
(C). Mount the upper part of the back fixture
on the back of the seat, together with fitting
(B) the enclosed 4 screws and 4 washers (D).
Use the bolts (E) to adjust the height and
tighten afterwards!
4. Make sure to tighten all of the screws after
the correct position is achieved.
