ADJUSTING THE PUSH
BRACE
The push brace can be adjusted into four po-
sitions to make a bigger distance between the
push brace and seat.

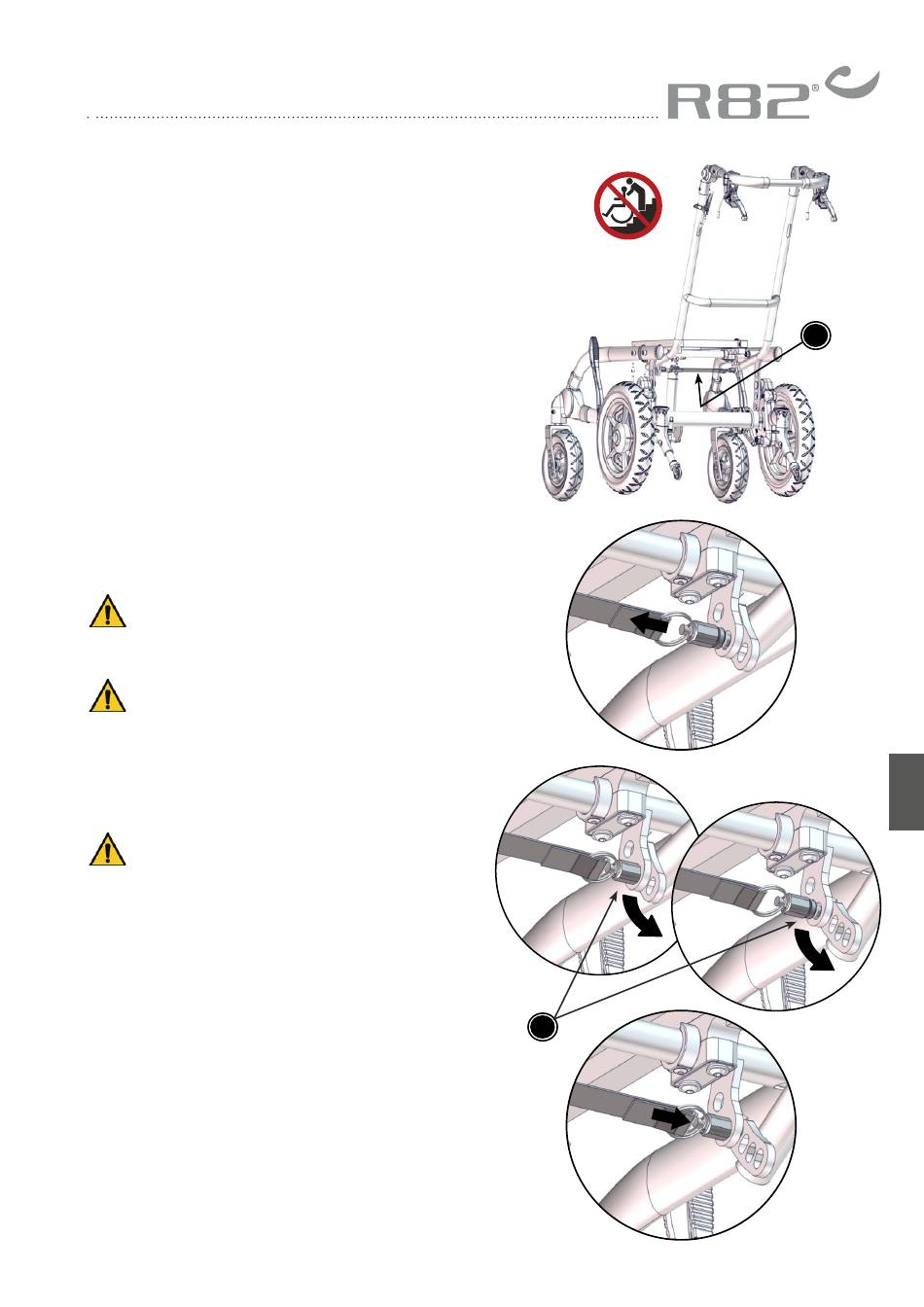

1) The push brace is angled by twisting the strap
(A) under the basic frame whilst pushing the
push brace forward or backward.
2) When the pushbrace has been moved to a
new position, let go of the strap and the lock-
ing pins (D) click into the fitting.
Be aware that the locking pins (D) are com-
pletely locked in both sides before using
the wheel chair.
Do not ever use the push brace to lift/pull
the frame up or down stairs, landings,
curbs ect. The frame can only be lifted by
two persons taking hold of the frame evenly
on either side. Never use the push brace
to lift the frame.
Warning - Entrapment hazards! Avoid
squeezing fingers between the push brace
and a mounted seat.
