INDIVIDUAL
FOOTSUPPORTS FOR
X:PANDA

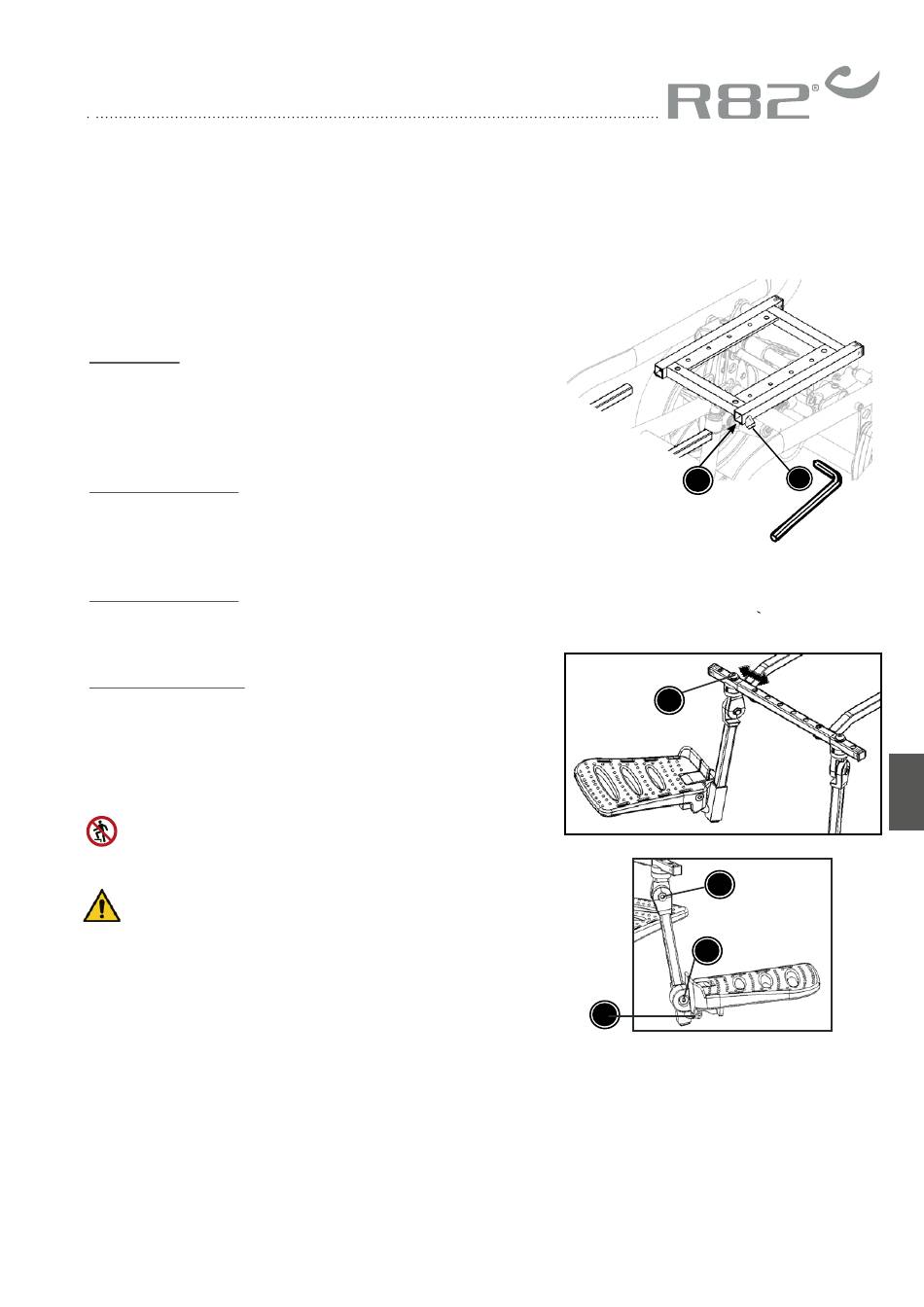

Mounting:
Loosen the screws (B) with a 5 mm allen key
and the foot support is mounted by placing the
bars in the interface (A). Then refasten the
screws (B).
Width adjustment:
Remove the screws (C) using the 5 mm Allen
key. Place the footsupport as required and re-
mount the screws.
Angle adjustment:
Loosen the screws (D or E) using the 5 mm Allen
key, replace screws and tighten.
Height adjustment:
Loosen the screws (F) using the 5 mm Allen key,
set the height and tighten.
Do not use the footsupports as a step.
When angling the footrests, please be
careful not to get fingers caught!
F
23
A
B
C
D
E
E
N
