INDIVIDUAL FOOT
SUPPORTS

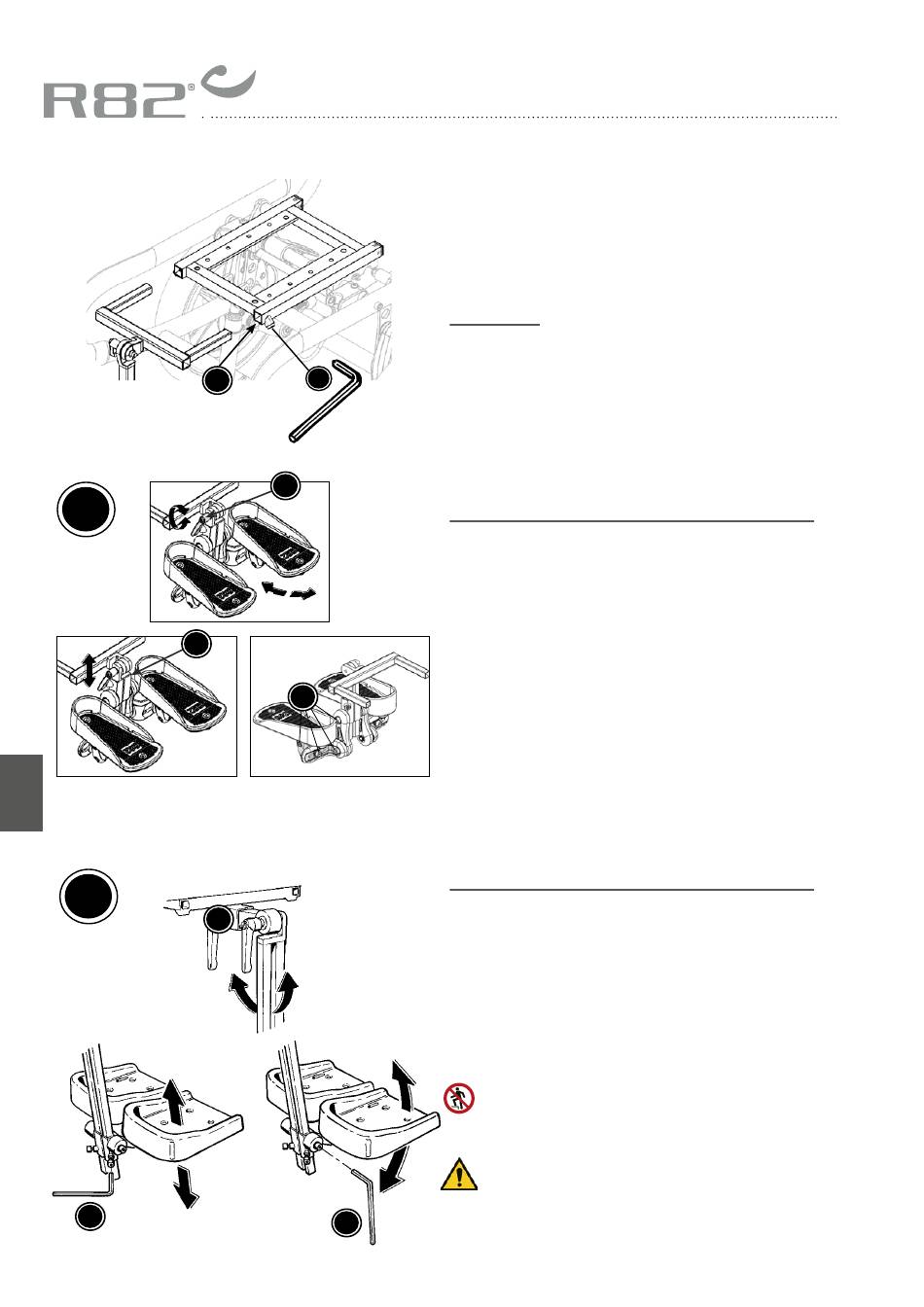

Mounting:
Loosen the screws (B) with a 5 mm allen key
and the foot support is mounted by placing the
bars in the interface (A). Then refasten the
screws (B).
Adjustment of individual foot supports 1:
Angle adjustment - foot support bar:
Loosen the handle (A).
Height adjustment - foot support bar:
Loosen the screw (B) using a 6 mm Allen key.
Multi adjustment:
Loosen the screws (C) to angle, width, depth
and height adjust the foot support.
Adjustment of individual foot supports 2:
A) Use the handle to angle the footrest bar.
B) Use a 6 mm Allen key to height adjust the
footrest.
C) Use a 6 mm Allen key to angle the footrest.
Do not use the footrest as a step
When angling the footrests, please be
careful not to get fingers caught!
