Make The Multi Frame Ready For Transport; Transfer - R82 multi frame Series User Manual

E
N
LIFTING AND TRANSFER
Always use the correct transfer and lifting
techniques for this purpose
4.
A
4.

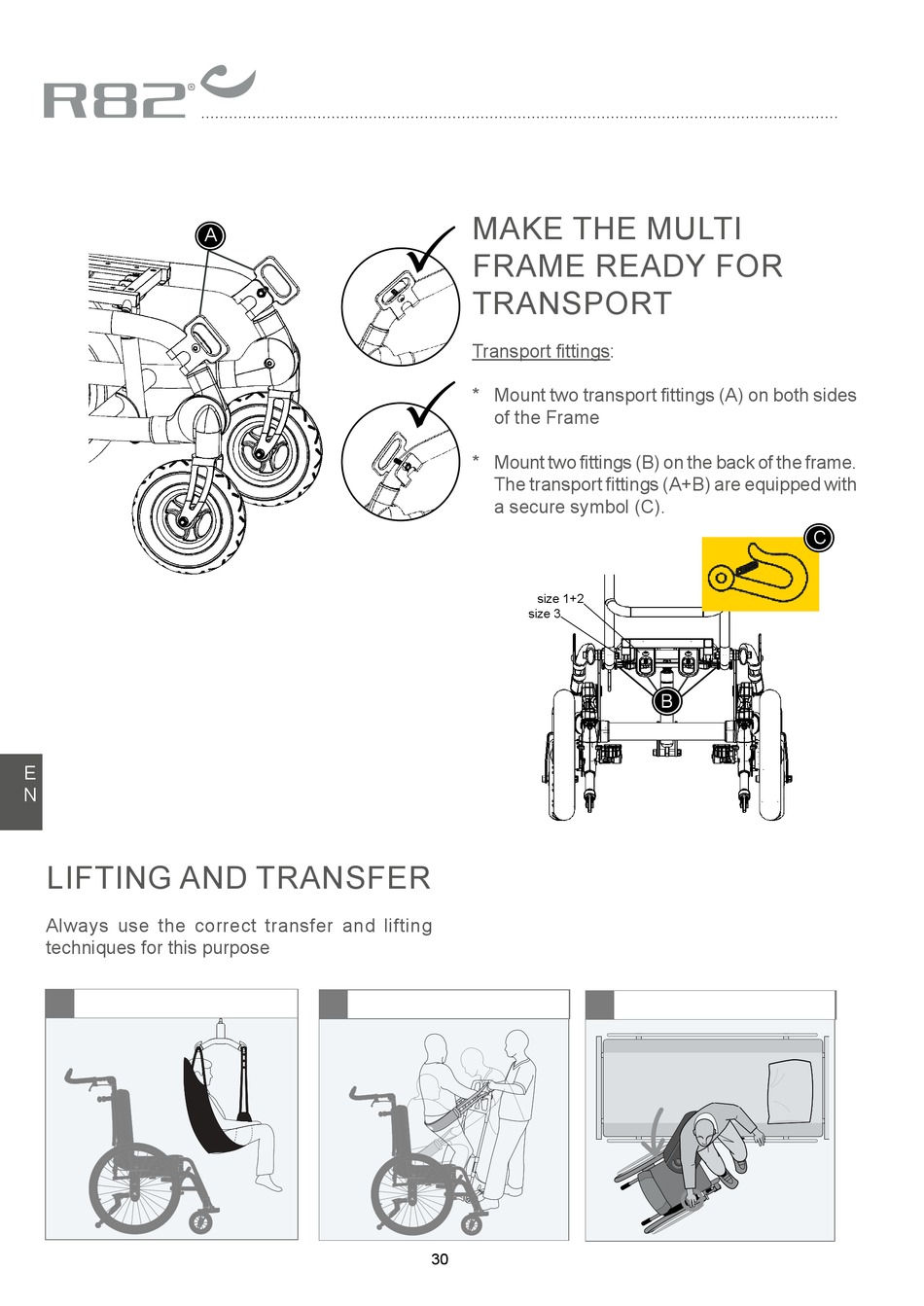

MAKE THE MULTI

FRAME READY FOR
TRANSPORT
Transport fittings:

* Mount two transport fittings (A) on both sides
of the Frame
* Mount two fittings (B) on the back of the frame.
The transport fittings (A+B) are equipped with
a secure symbol (C).
size 1+2
size 3
30
B
4.
C
