Vent Tray For Ventilator - R82 multi frame Series User Manual

VENT TRAY FOR
VENTILATOR
The vent tray can only be mounted on Multi
Frame sizes 2 and 3.

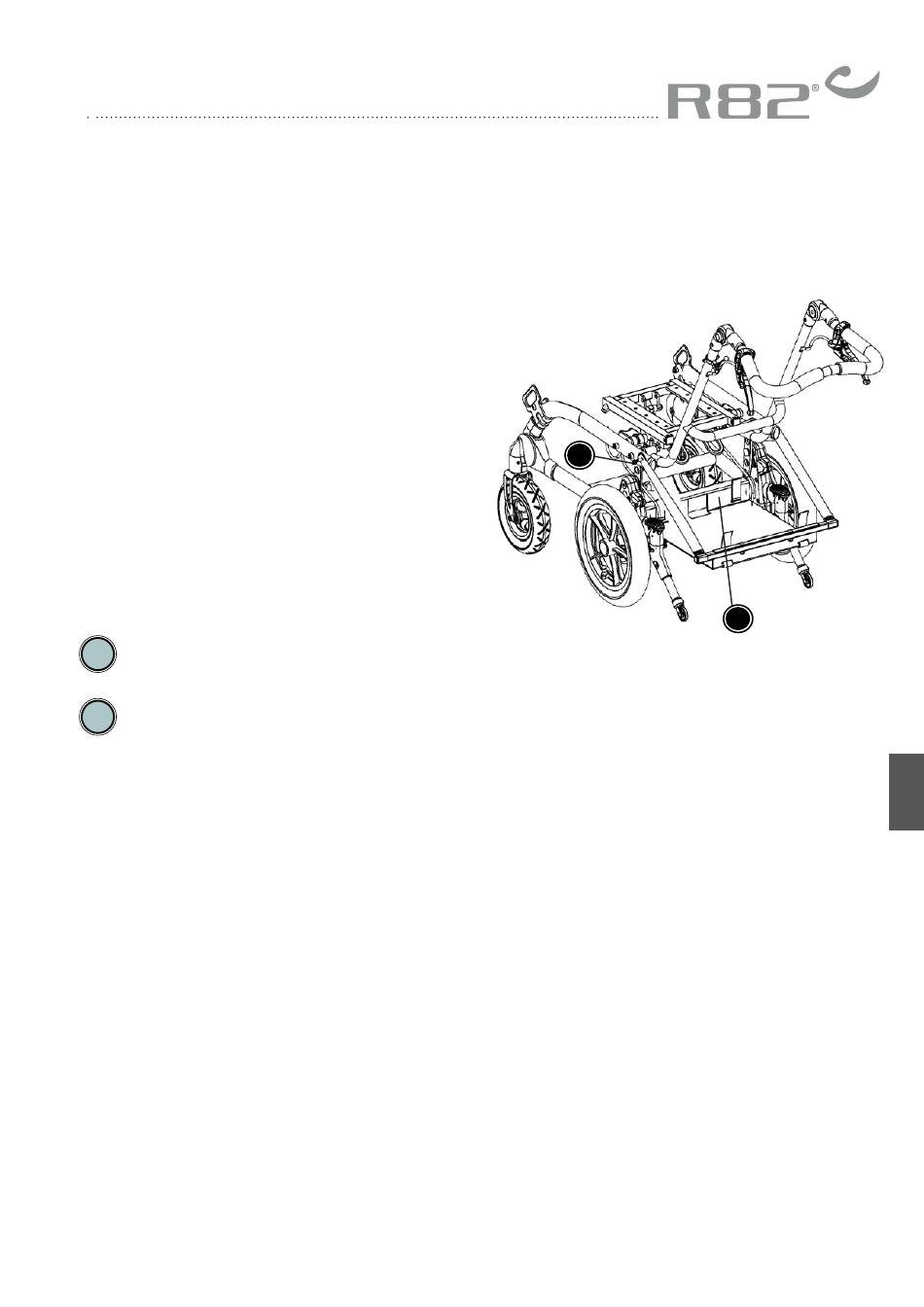

* Place the vent tray on the bottom bar on the
frame (A).
* Drill a 5 mm hole on each side of the frame and
mount the straps with the enclosed bolts (B).
* Adjust the quick release straps to place the
vent tray in horizontal position. Please note
that when used in transportation the vent
tray has been designed for quick and easy
removal.
i
Once set the Ventilator can be secured
using the restraining straps provided.
i
You could ask your local dealer for help on
mounting the vent tray.
