MOUNTING HAND
BRAKE ON 22" WHEEL

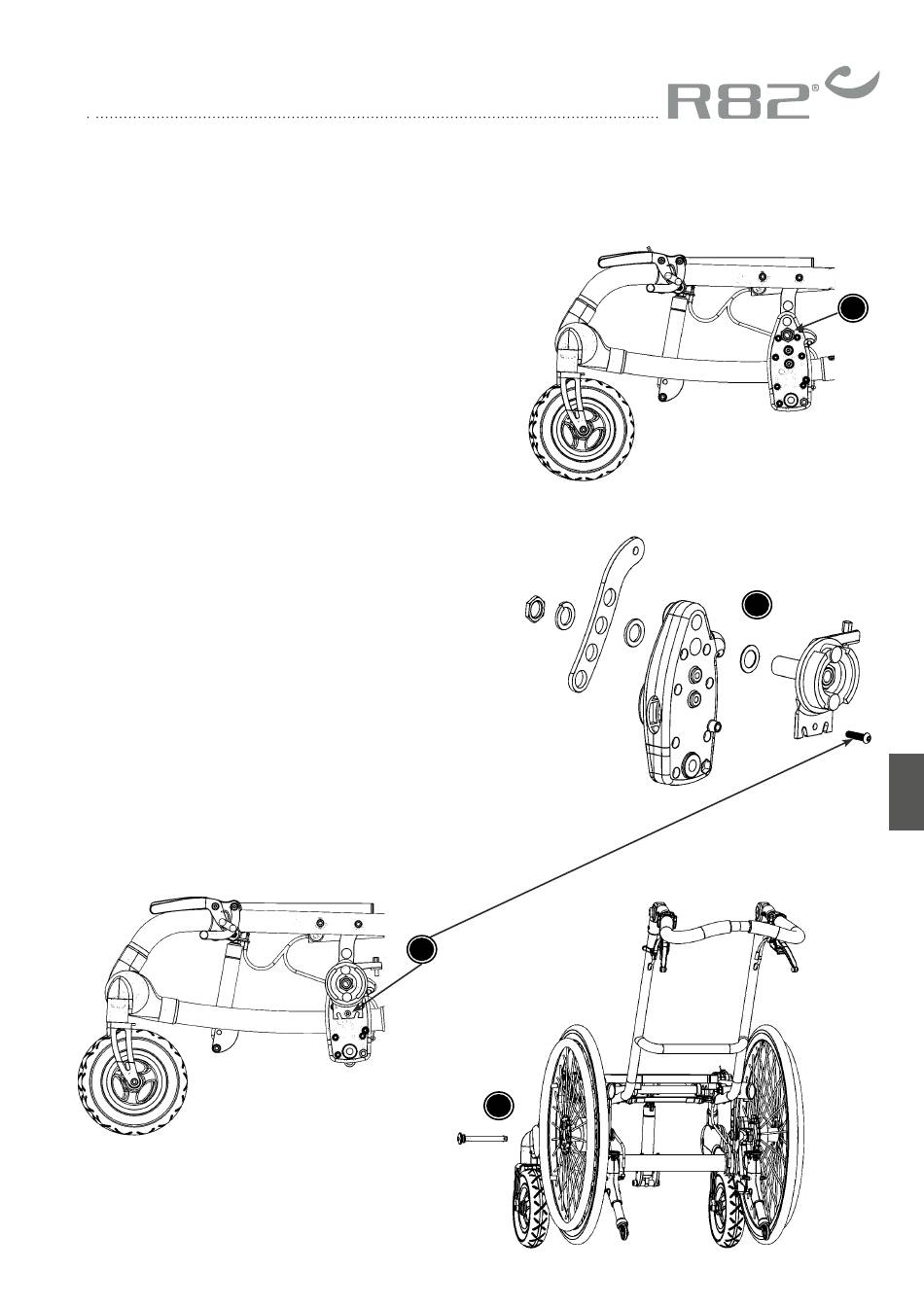

Follow these directions to mount a hand brake on
22" back wheels.
1) Remove the back wheel by using Quick release
axle pin
2) Remove the Quick release bushing (A) with 2
24 mm spanners
3) Mount the drum brake with the enclosed nuts
and washers in the order as shown (B). Tighten
the inner nut
4) Fasten the drum brake with the screw (C) with
a 4 mm allen key
5) Mount a drum brake wheel and click in the Quick
release axle (D)
The above has to be done on both back wheels.
