XBee API mode

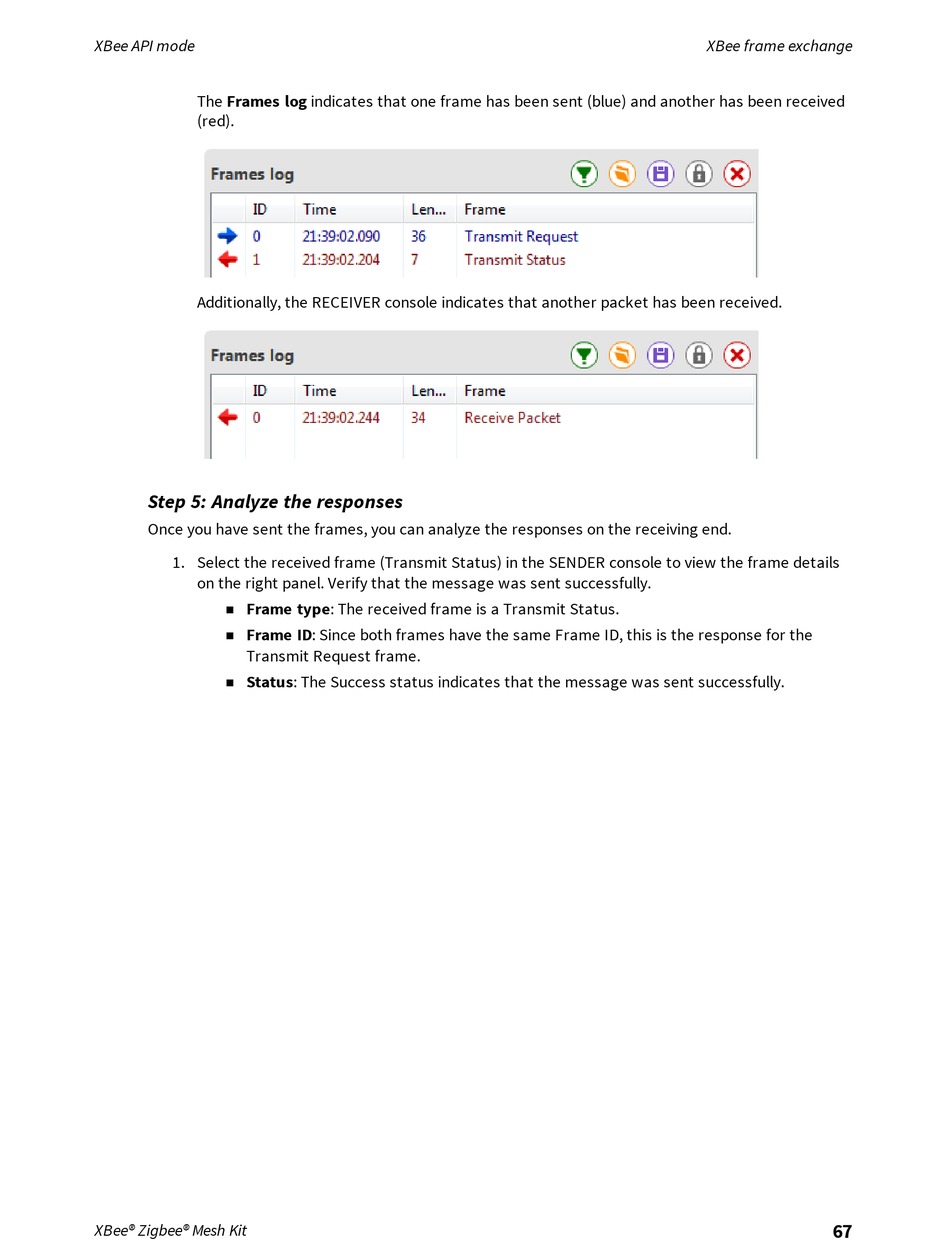

The Frames log indicates that one frame has been sent (blue) and another has been received
(red).
Additionally, the RECEIVER console indicates that another packet has been received.
Step 5: Analyze the responses
Once you have sent the frames, you can analyze the responses on the receiving end.
1. Select the received frame (Transmit Status) in the SENDER console to view the frame details
on the right panel. Verify that the message was sent successfully.
Frame type: The received frame is a Transmit Status.
n
Frame ID: Since both frames have the same Frame ID, this is the response for the
n
Transmit Request frame.
Status: The Success status indicates that the message was sent successfully.
n
