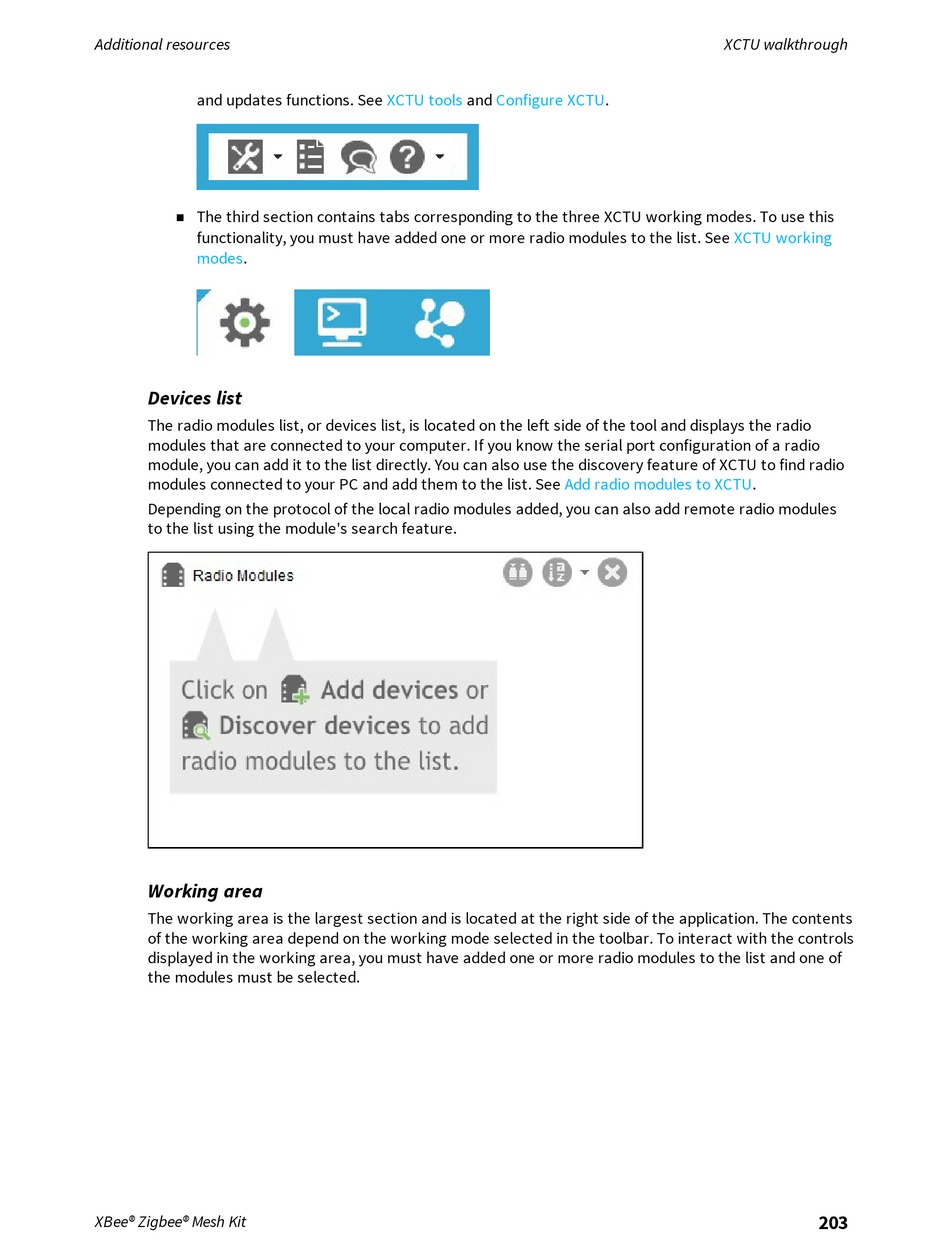

Additional resources
and updates functions. See
The third section contains tabs corresponding to the three XCTU working modes. To use this
n
functionality, you must have added one or more radio modules to the list. See
modes.
Devices list
The radio modules list, or devices list, is located on the left side of the tool and displays the radio
modules that are connected to your computer. If you know the serial port configuration of a radio
module, you can add it to the list directly. You can also use the discovery feature of XCTU to find radio
modules connected to your PC and add them to the list. See
Depending on the protocol of the local radio modules added, you can also add remote radio modules
to the list using the module's search feature.
Working area
The working area is the largest section and is located at the right side of the application. The contents
of the working area depend on the working mode selected in the toolbar. To interact with the controls
displayed in the working area, you must have added one or more radio modules to the list and one of
the modules must be selected.
XBee® Zigbee® Mesh Kit
XCTU tools and Configure
XCTU walkthrough
XCTU.
XCTU working
Add radio modules to XCTU.
