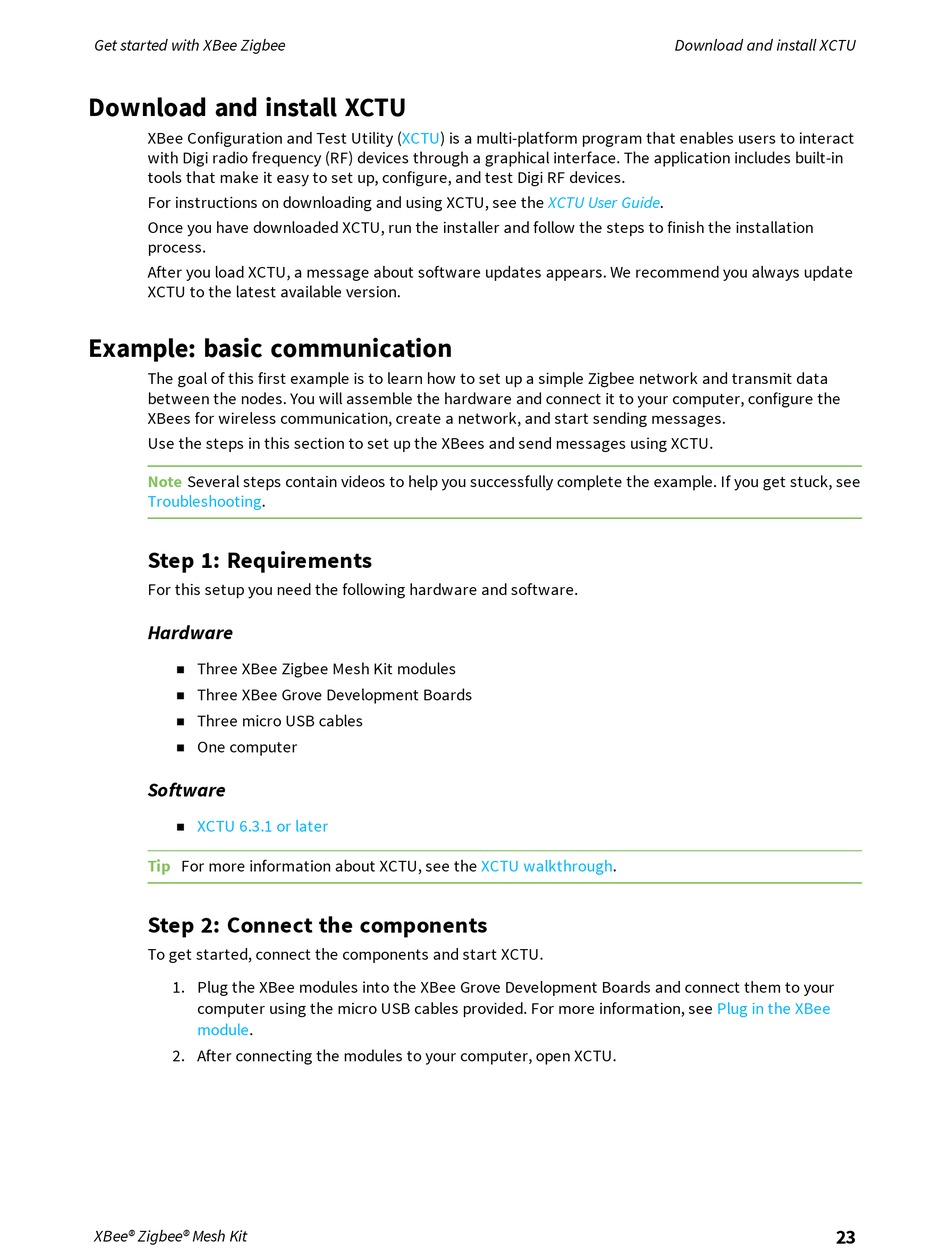

Get started with XBee Zigbee

Download and install XCTU

XBee Configuration and Test Utility (XCTU) is a multi-platform program that enables users to interact
with Digi radio frequency (RF) devices through a graphical interface. The application includes built-in
tools that make it easy to set up, configure, and test Digi RF devices.
For instructions on downloading and using XCTU, see the
Once you have downloaded XCTU, run the installer and follow the steps to finish the installation
process.
After you load XCTU, a message about software updates appears. We recommend you always update
XCTU to the latest available version.

Example: basic communication

The goal of this first example is to learn how to set up a simple Zigbee network and transmit data
between the nodes. You will assemble the hardware and connect it to your computer, configure the
XBees for wireless communication, create a network, and start sending messages.
Use the steps in this section to set up the XBees and send messages using XCTU.
Note Several steps contain videos to help you successfully complete the example. If you get stuck, see
Troubleshooting.
Step 1: Requirements
For this setup you need the following hardware and software.
Hardware
Three XBee Zigbee Mesh Kit modules
n
Three XBee Grove Development Boards
n
Three micro USB cables
n
One computer
n
Software
XCTU 6.3.1 or later
n
Tip For more information about XCTU, see the
Step 2: Connect the components
To get started, connect the components and start XCTU.
1. Plug the XBee modules into the XBee Grove Development Boards and connect them to your
computer using the micro USB cables provided. For more information, see
module.
2. After connecting the modules to your computer, open XCTU.
XBee® Zigbee® Mesh Kit
XCTU User Guide.
XCTU walkthrough.
Download and install XCTU
Plug in the XBee
23
