Frame Examples - Digi XBee Zigbee Mesh Kit User Manual

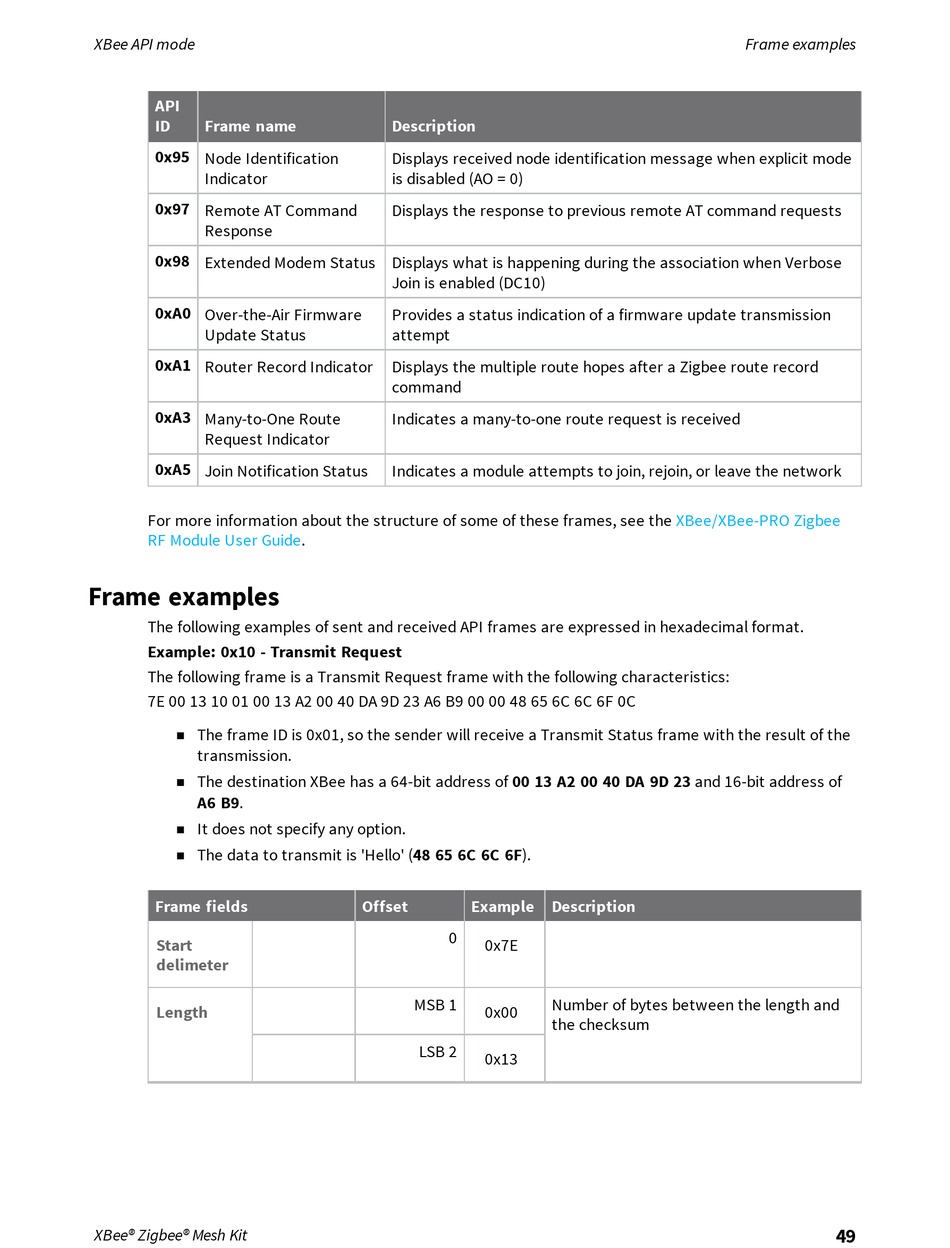

XBee API mode
API
ID Frame name
0x95 Node Identification
Indicator
0x97 Remote AT Command
Response
0x98 Extended Modem Status Displays what is happening during the association when Verbose
0xA0 Over-the-Air Firmware
Update Status
0xA1 Router Record Indicator
0xA3 Many-to-One Route
Request Indicator
0xA5 Join Notification Status
For more information about the structure of some of these frames, see the
RF Module User Guide.

Frame examples

The following examples of sent and received API frames are expressed in hexadecimal format.
Example: 0x10 - Transmit Request
The following frame is a Transmit Request frame with the following characteristics:
7E 00 13 10 01 00 13 A2 00 40 DA 9D 23 A6 B9 00 00 48 65 6C 6C 6F 0C
The frame ID is 0x01, so the sender will receive a Transmit Status frame with the result of the
n
transmission.
The destination XBee has a 64-bit address of 00 13 A2 00 40 DA 9D 23 and 16-bit address of
n
A6 B9.
It does not specify any option.
n
The data to transmit is 'Hello' (48 65 6C 6C 6F).
n
Frame fields
Start
delimeter
Length
XBee® Zigbee® Mesh Kit
Description
Displays received node identification message when explicit mode
is disabled (AO = 0)
Displays the response to previous remote AT command requests
Join is enabled (DC10)
Provides a status indication of a firmware update transmission
attempt
Displays the multiple route hopes after a Zigbee route record
command
Indicates a many-to-one route request is received
Indicates a module attempts to join, rejoin, or leave the network
Offset Example
0
0x7E
MSB 1
0x00
LSB 2
0x13
XBee/XBee-PRO Zigbee
Description
Number of bytes between the length and
the checksum
Frame examples
49
