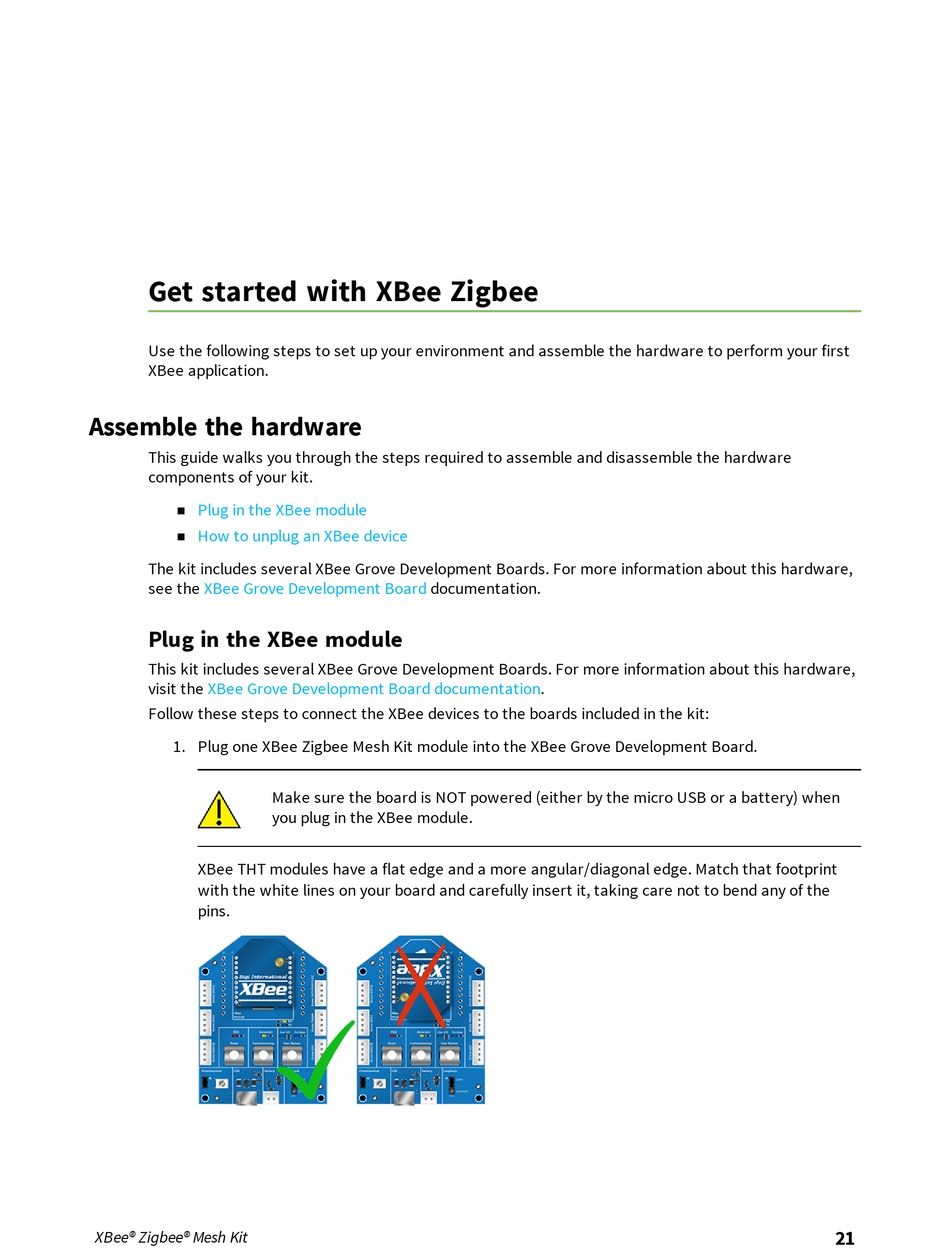

Get started with XBee Zigbee

Use the following steps to set up your environment and assemble the hardware to perform your first
XBee application.

Assemble the hardware

This guide walks you through the steps required to assemble and disassemble the hardware
components of your kit.

Plug in the XBee module

n
How to unplug an XBee device
n
The kit includes several XBee Grove Development Boards. For more information about this hardware,
see the XBee Grove Development Board
Plug in the XBee module
This kit includes several XBee Grove Development Boards. For more information about this hardware,
visit the XBee Grove Development Board
Follow these steps to connect the XBee devices to the boards included in the kit:
1. Plug one XBee Zigbee Mesh Kit module into the XBee Grove Development Board.
XBee THT modules have a flat edge and a more angular/diagonal edge. Match that footprint
with the white lines on your board and carefully insert it, taking care not to bend any of the
pins.
XBee® Zigbee® Mesh Kit
documentation.
documentation.
Make sure the board is NOT powered (either by the micro USB or a battery) when
you plug in the XBee module.
