Zigbee communication in depth
Param XBee A
NI COORD
AP API
enabled
[1]
AO Explicit
[1]
Note The dash (—) in the table means to keep the default value. Do not change the default value.

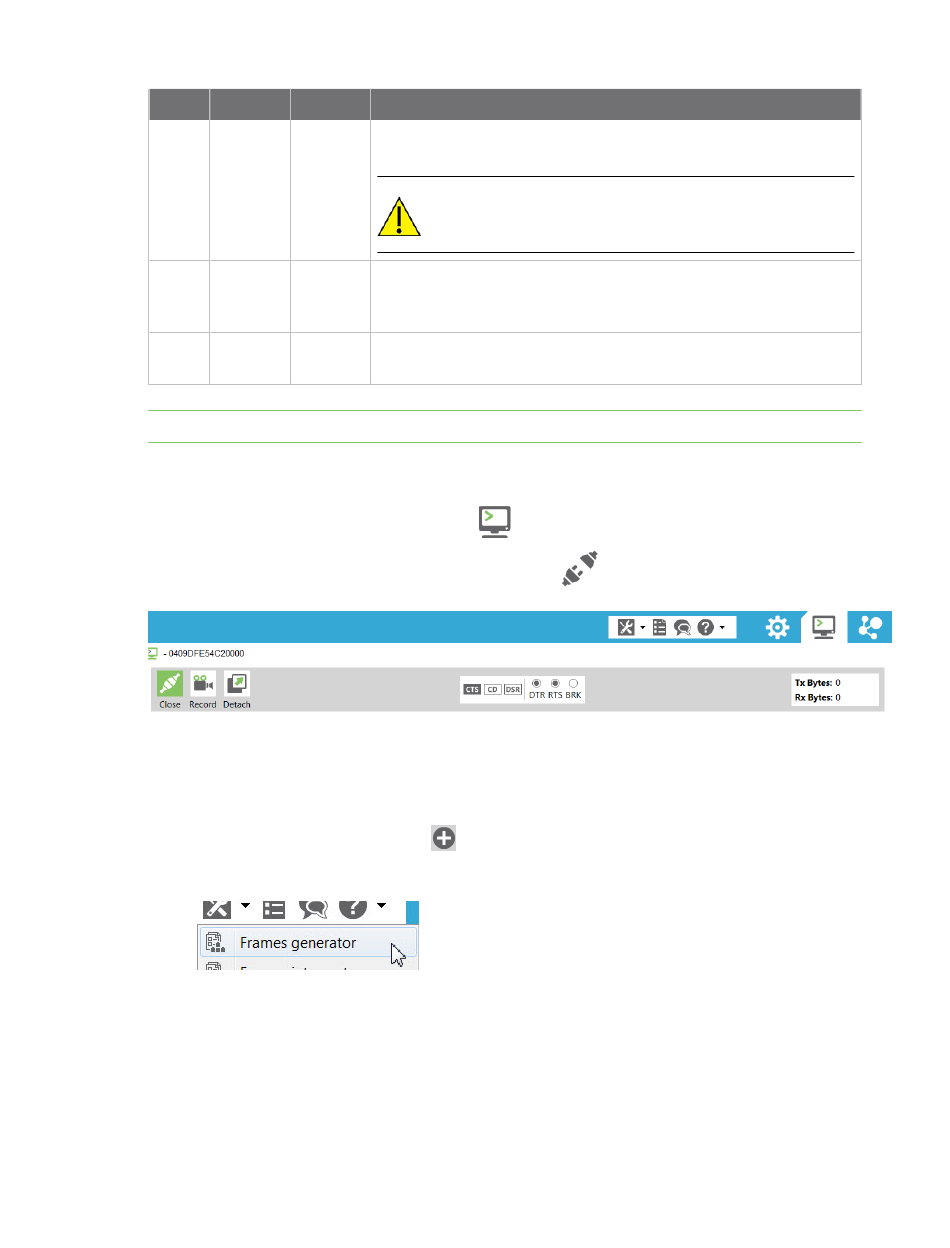

Step 4: Open the XCTU console
1. Switch to the Consoles working mode
2. Open the serial connection with the COORD module
Step 5: Generate the frame
Next, generate the Explicit Addressing Command Frame in the COORD console. To create it, follow
these steps:
1. Click Add new frame to the list
2. Open the Frames Generator tool.
3. In the Frame type section, select 0x11 - Explicit Addressing Command Frame.
4. In the 64-bit dest. address box, type 0013A200XXXXXXXX, the 64-bit address of ROUTER.
In the Source endpoint box, type 00.
5. In the Destination endpoint box, type 00.
6. In the Cluster ID box, type 0031.
XBee® Zigbee® Mesh Kit
XBee B Effect
ROUTER Defines the node identifier, a human-friendly name for the module.
The default NI value is a blank space. Make sure to delete
the space when you change the value.
API Enables API mode.
enabled
[1]
— Enables the explicit receive API frame.
.
Examples: explicit data and ZDO
.
.
