Overview
RSSI led
The XBee Grove Development Board provides an LED connected to the RSSI/PWM0 pin of the XBee
module. The RSSI/PWM signal is also connected to the PWM Grove connector.
If the PWM0 pin (P0) is configured as RSSI, the brightness of this LED displays the signal strength of
the last packet received.

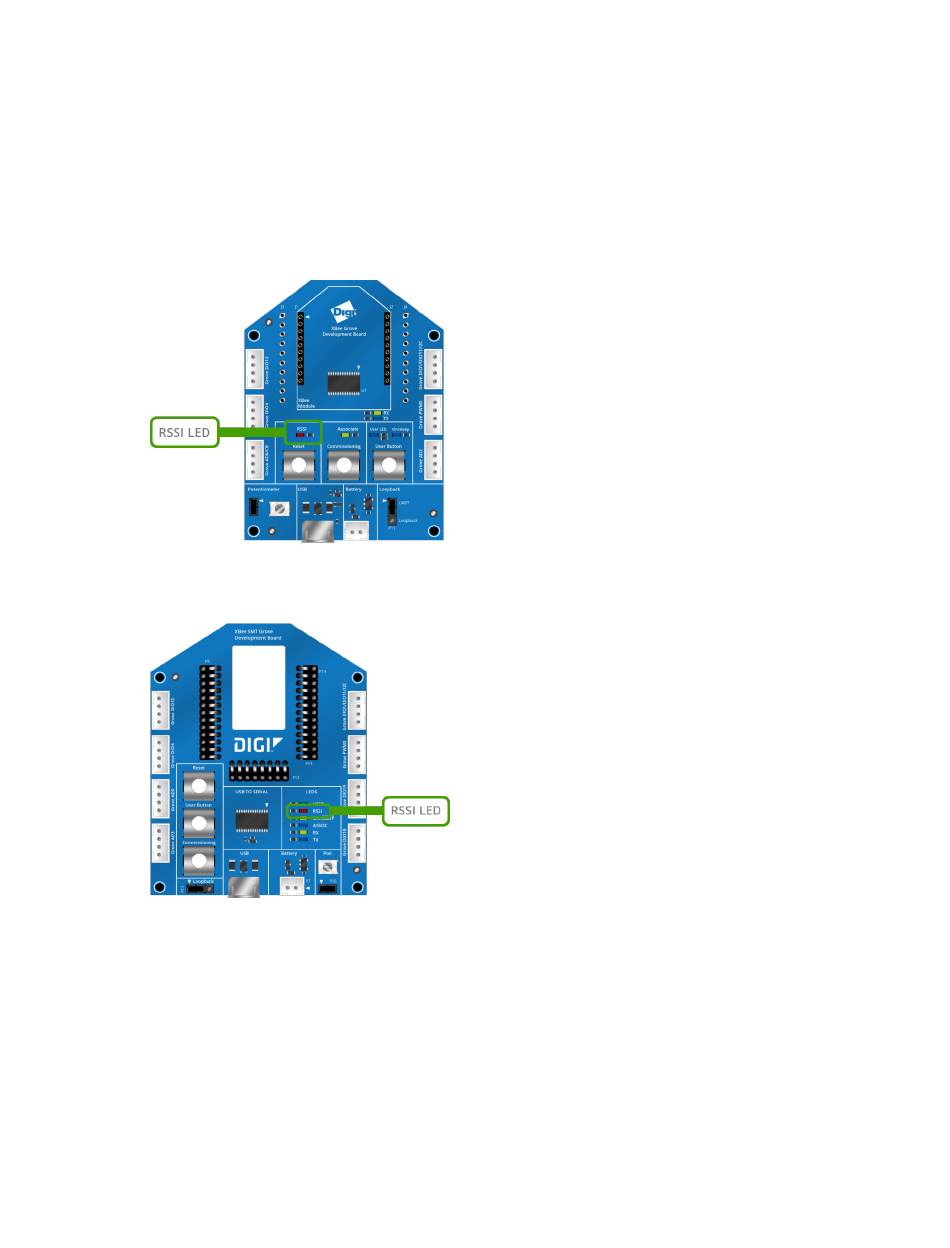

XBee THT Grove Development Board RSSI LED
XBee SMT Grove Development Board RSSI LED
XBee® Zigbee® Mesh Kit
RSSI led
225
