Overview

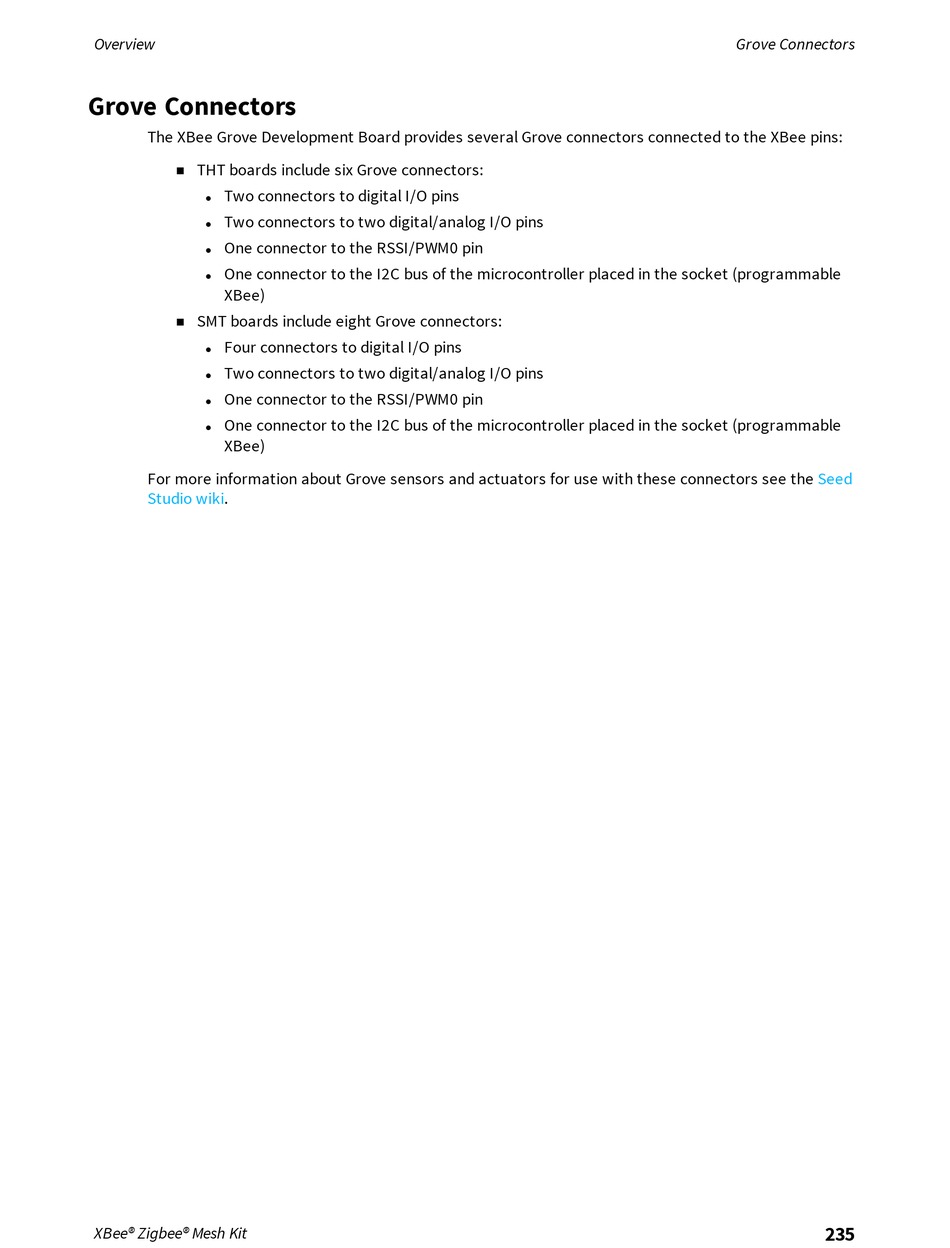

Grove Connectors

The XBee Grove Development Board provides several Grove connectors connected to the XBee pins:
THT boards include six Grove connectors:
n
Two connectors to digital I/O pins
l
Two connectors to two digital/analog I/O pins
l
One connector to the RSSI/PWM0 pin
l
One connector to the I2C bus of the microcontroller placed in the socket (programmable
l
XBee)
SMT boards include eight Grove connectors:
n
Four connectors to digital I/O pins
l
Two connectors to two digital/analog I/O pins
l
One connector to the RSSI/PWM0 pin
l
One connector to the I2C bus of the microcontroller placed in the socket (programmable
l
XBee)
For more information about Grove sensors and actuators for use with these connectors see the
Studio wiki.
