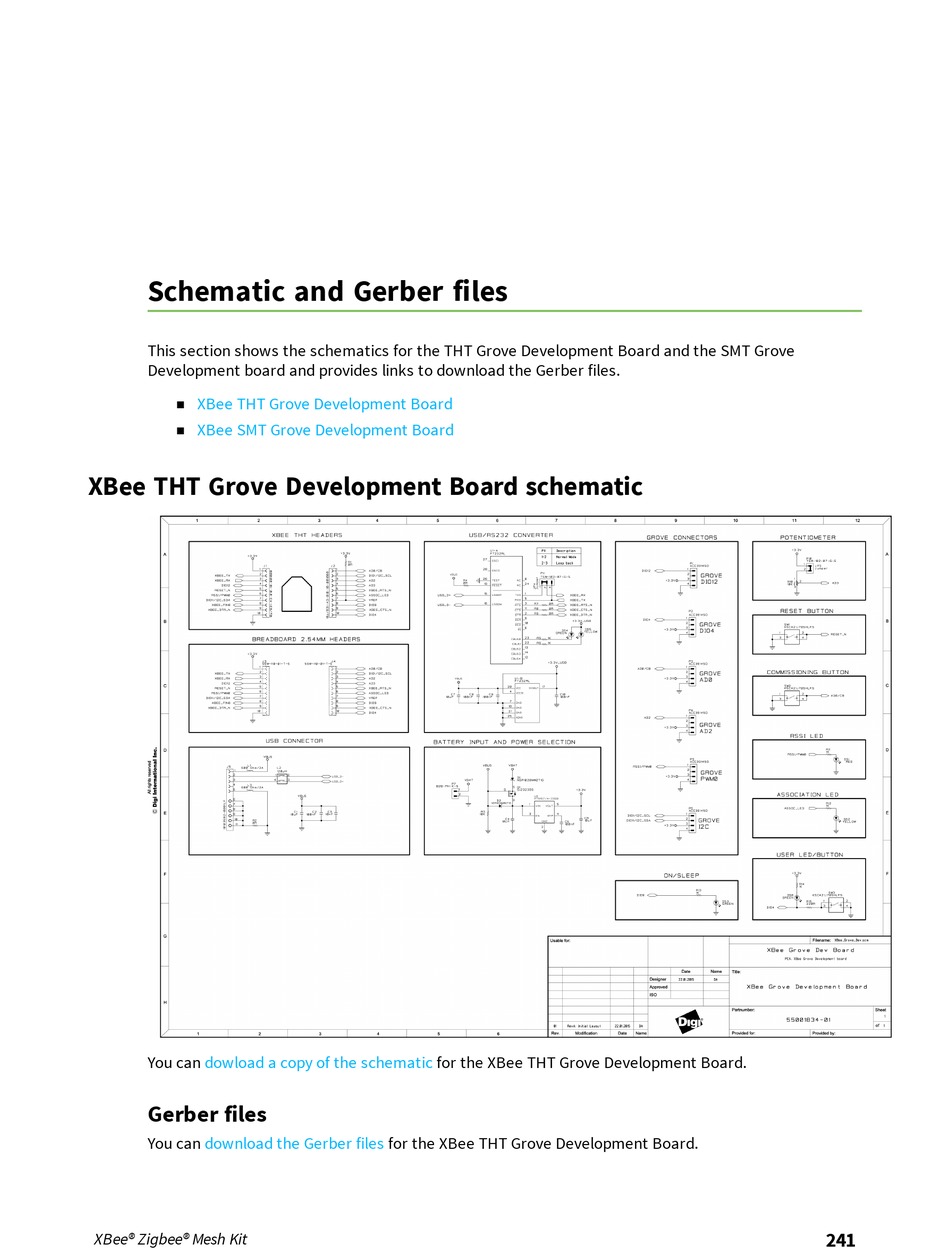

Schematic and Gerber files

This section shows the schematics for the THT Grove Development Board and the SMT Grove
Development board and provides links to download the Gerber files.
XBee THT Grove Development Board
n
XBee SMT Grove Development Board
n

XBee THT Grove Development Board schematic

You can dowload a copy of the schematic

Gerber files

You can download the Gerber files
XBee® Zigbee® Mesh Kit
for the XBee THT Grove Development Board.
for the XBee THT Grove Development Board.
