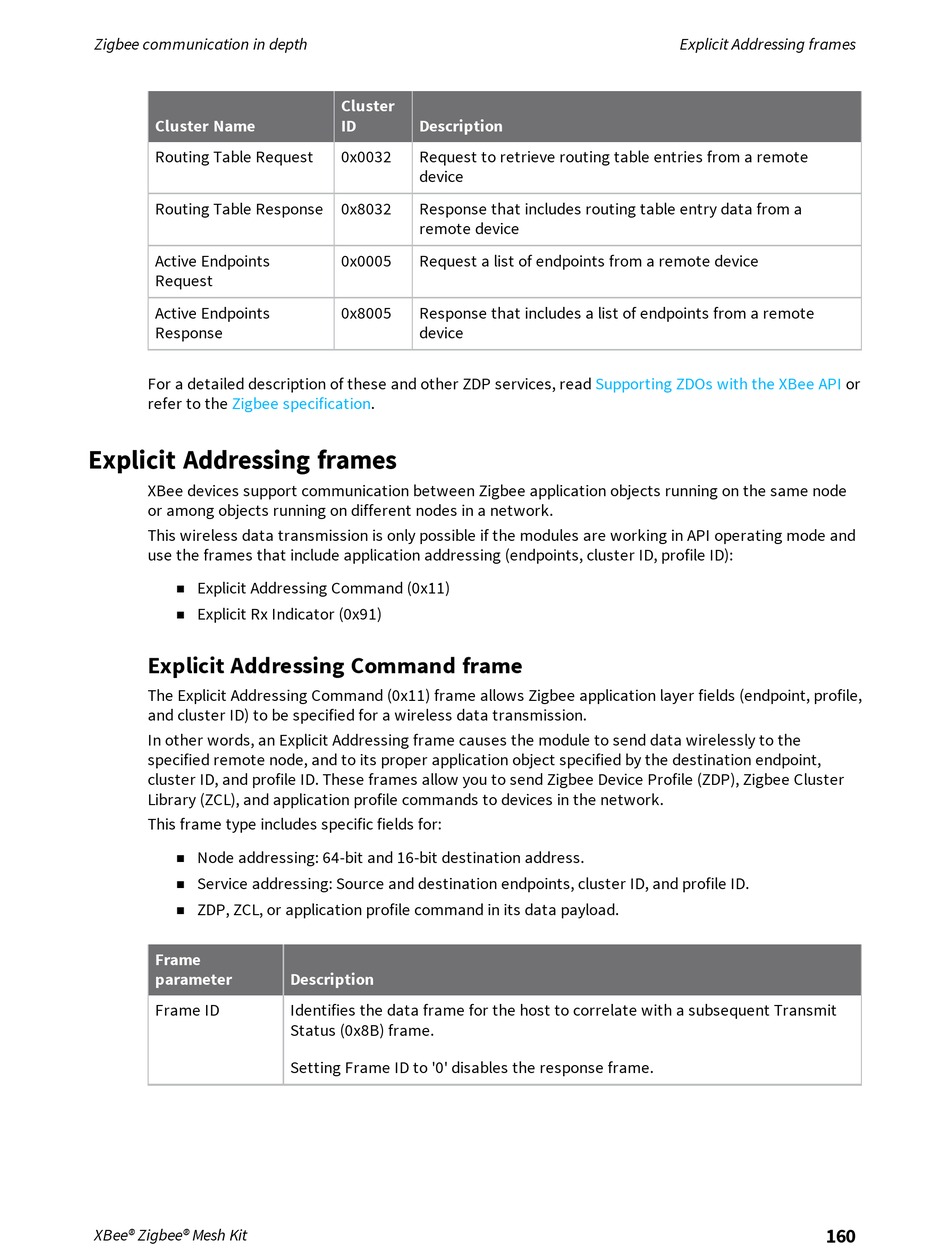

Explicit Addressing Frames; Explicit Addressing Command Frame - Digi XBee Zigbee Mesh Kit User Manual

Zigbee communication in depth
Cluster Name
Routing Table Request
Routing Table Response
Active Endpoints
Request
Active Endpoints
Response
For a detailed description of these and other ZDP services, read
refer to the Zigbee

Explicit Addressing frames

XBee devices support communication between Zigbee application objects running on the same node
or among objects running on different nodes in a network.
This wireless data transmission is only possible if the modules are working in API operating mode and
use the frames that include application addressing (endpoints, cluster ID, profile ID):
Explicit Addressing Command (0x11)
n
Explicit Rx Indicator (0x91)
n

Explicit Addressing Command frame

The Explicit Addressing Command (0x11) frame allows Zigbee application layer fields (endpoint, profile,
and cluster ID) to be specified for a wireless data transmission.
In other words, an Explicit Addressing frame causes the module to send data wirelessly to the
specified remote node, and to its proper application object specified by the destination endpoint,
cluster ID, and profile ID. These frames allow you to send Zigbee Device Profile (ZDP), Zigbee Cluster
Library (ZCL), and application profile commands to devices in the network.
This frame type includes specific fields for:
Node addressing: 64-bit and 16-bit destination address.
n
Service addressing: Source and destination endpoints, cluster ID, and profile ID.
n
ZDP, ZCL, or application profile command in its data payload.
n
Frame
parameter
Frame ID
XBee® Zigbee® Mesh Kit
Cluster
ID Description
0x0032 Request to retrieve routing table entries from a remote
device
0x8032 Response that includes routing table entry data from a
remote device
0x0005 Request a list of endpoints from a remote device
0x8005 Response that includes a list of endpoints from a remote
device
specification.
Description
Identifies the data frame for the host to correlate with a subsequent Transmit
Status (0x8B) frame.
Setting Frame ID to '0' disables the response frame.
Explicit Addressing frames
Supporting ZDOs with the XBee API or
160
