Vision Engraving & Routing Systems Express User Manual page 97

Step by Step Operation 97

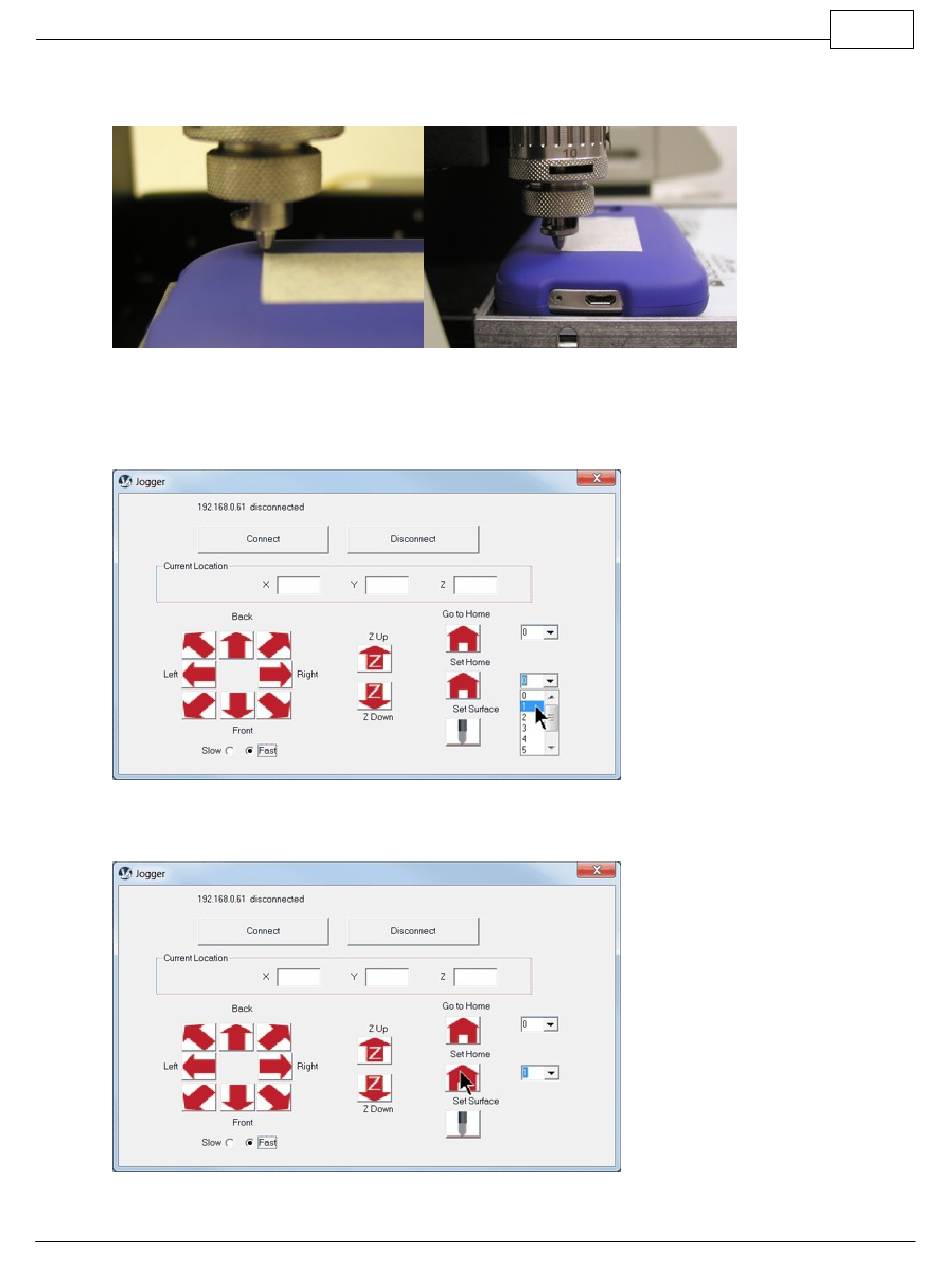

The pictures below show the cutter tip positioned in the upper left corner of the engraving area.
To set this point as the Home Position, you must select a home position number other than 0 in the
Jogger window. In this example, the home position 1 was selected. Use the drop down list next to the Set
Home icon and select a Home Position number. You can set up to 7 different custom home positions.
These custom home positions are stored in the machine, even if the machine is powered off.
Once the home position number is selected, click on the Set Home icon, then click on Disconnect and
close the Jogger window.
