Network Connection - Vision Engraving & Routing Systems Express User Manual

Installation 23
3.2.2

Network Connection

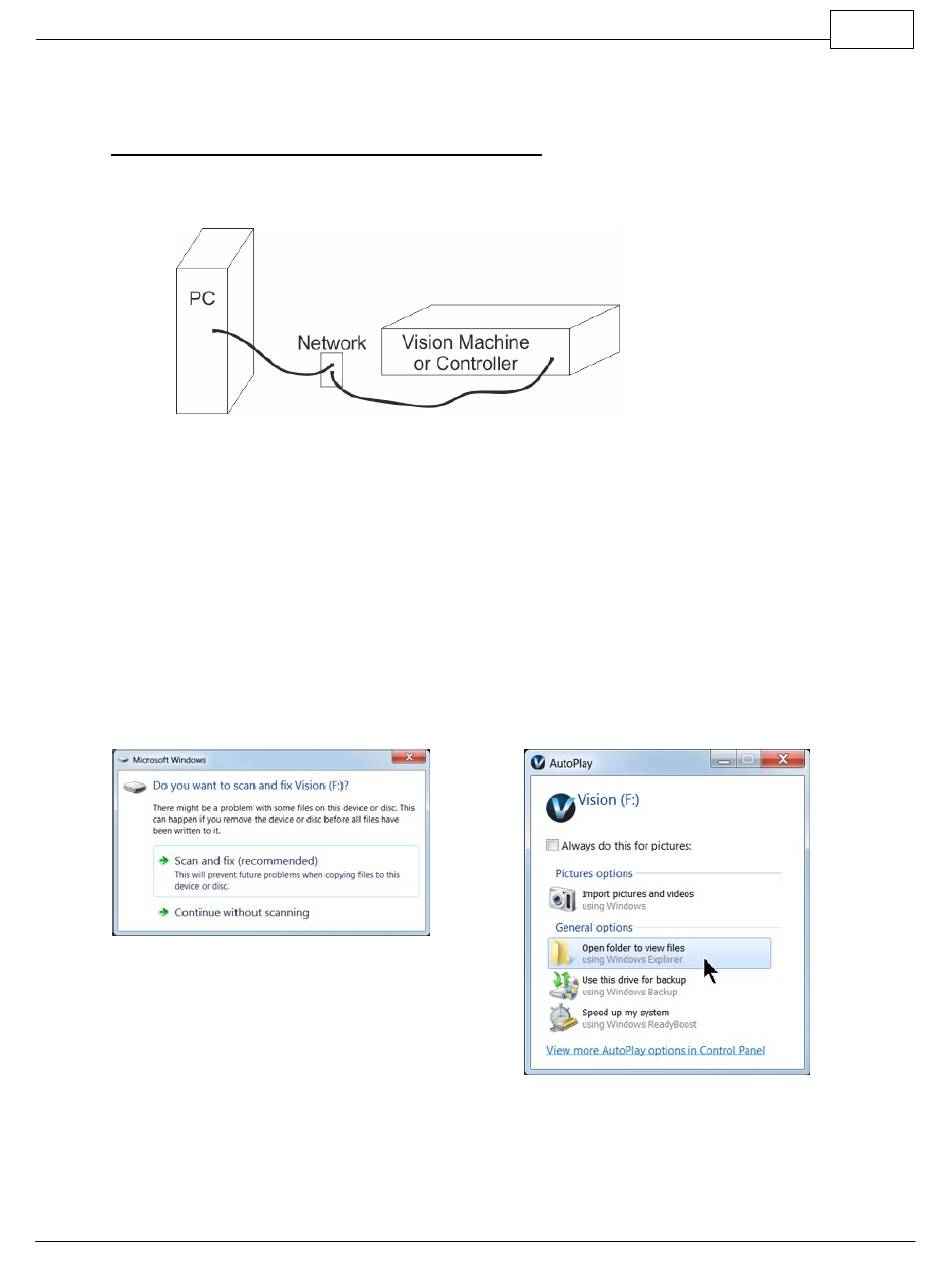

Connecting via Standard Network Cable to Network
Once the machine is connected to your network, turn the machine on. The power switch for the Vision
Express is located on the power supply box for the machine. Once the machine has initialized (an
audible "bump" will indicate that initialization is complete), plug the supplied Vision USB drive into an
available USB port on your computer.
NOTE - This installation is performed on a Windows 7 PC. For Windows XP, Windows 8, Windows 8.1
or Windows 10, the screens are slightly different.
The computer will recognize the USB drive
Select Open folder to view files.
and the following screen will appear.
Select Continue without scanning.
© 2015 Vision Engraving & Routing Systems
