60 Vision Express User Manual
Once the file has been set up, select the Engrave Icon from the left toolbar, click on the Tool Setup icon
and from the Materials selection drop down list, select Engravers Plastic(Engraving), then click on OK.

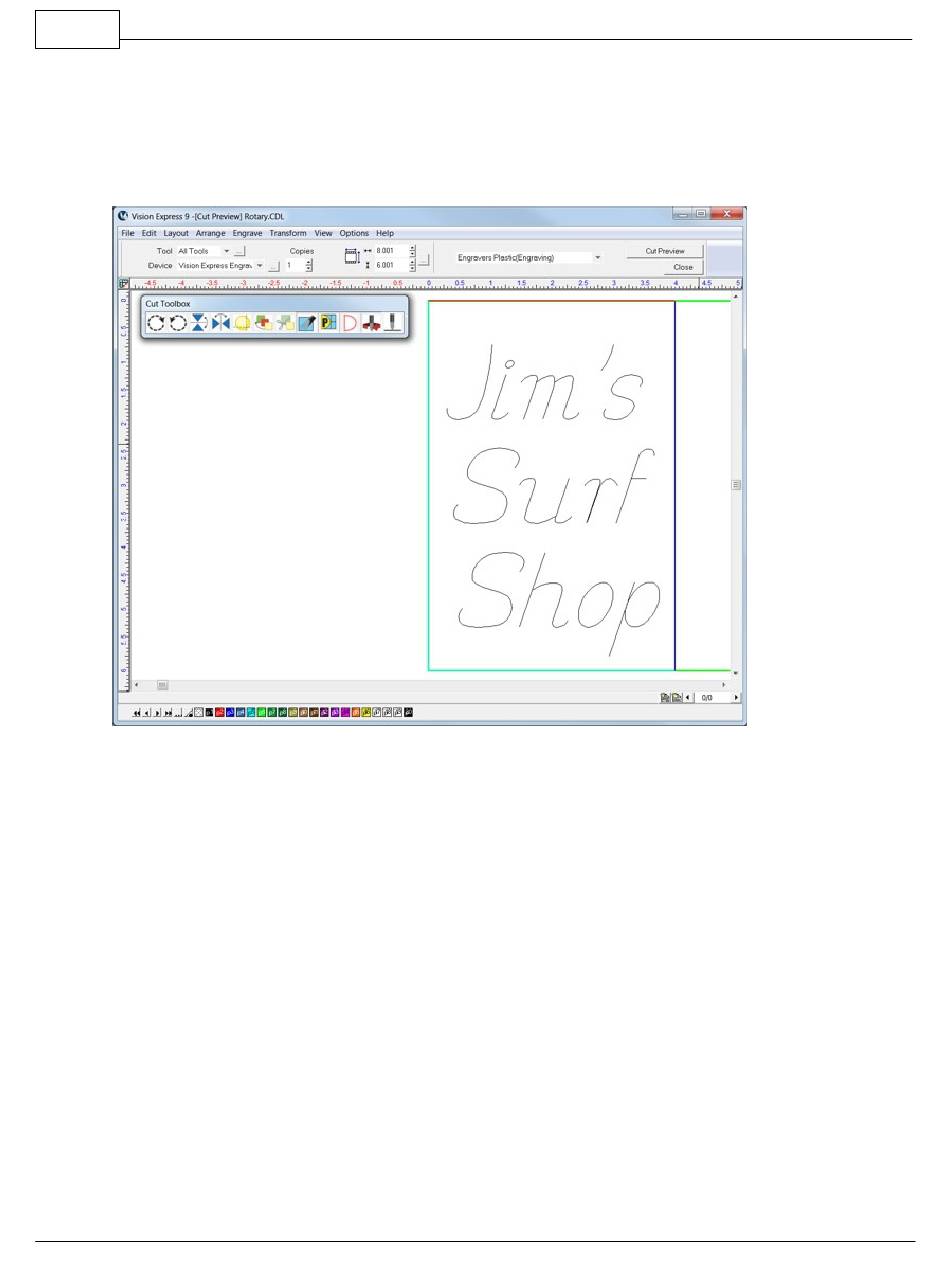

In the picture below, the Cut Toolbox shows that the Vacuum, Prox, Dry Run, and Spindle are all
enabled. Since this is the second example job, sending a Dry Run job to the engraver is suggested.
Select the Engrave Icon to send the file to the engraver.
If the Dry Run showed no set up errors, the job can be re-sent to the engraver with the Dry Run
disabled.
Place the material on the table (shown with Multi Mat on the t-slot table to hold the engraving material in
place), and press the start button on the machine to begin engraving.
