120 Vision Express User Manual
6 Optional Accessories
6.1

Vacuum Chip Removal System

The process of engraving or cutting plastics, acrylics, sign foam and wood, produce a significant
amount of debris that can clog the nose cone and/or get trapped between the nose cone and the
material, which will cause engraving/cutting depth inconsistencies as well as potentially scratch the
surface of the material. The vacuum chip removal system is designed to simplify the engraving process
and minimize wear and tear on the engraver. It uses a vacuum nose cone to remove chips created
during the engraving process before they have the chance to create problems. The quiet pump, coupled
with the microfine-layered filters assures that your unwanted chips are whisked away effortlessly. The
vacuum pump canister uses replaceable/reusable filters to assure maximum efficiency and cost-
effectiveness.
The system allows prompt removal of chips and dust created in the engraving process, reducing
contamination and overheating in the spindle area. Chip removal also prevents the cutter from skipping
over letters due to stray particles. This vacuum chip removal system is available with or without a Vision
vacuum nose cone.

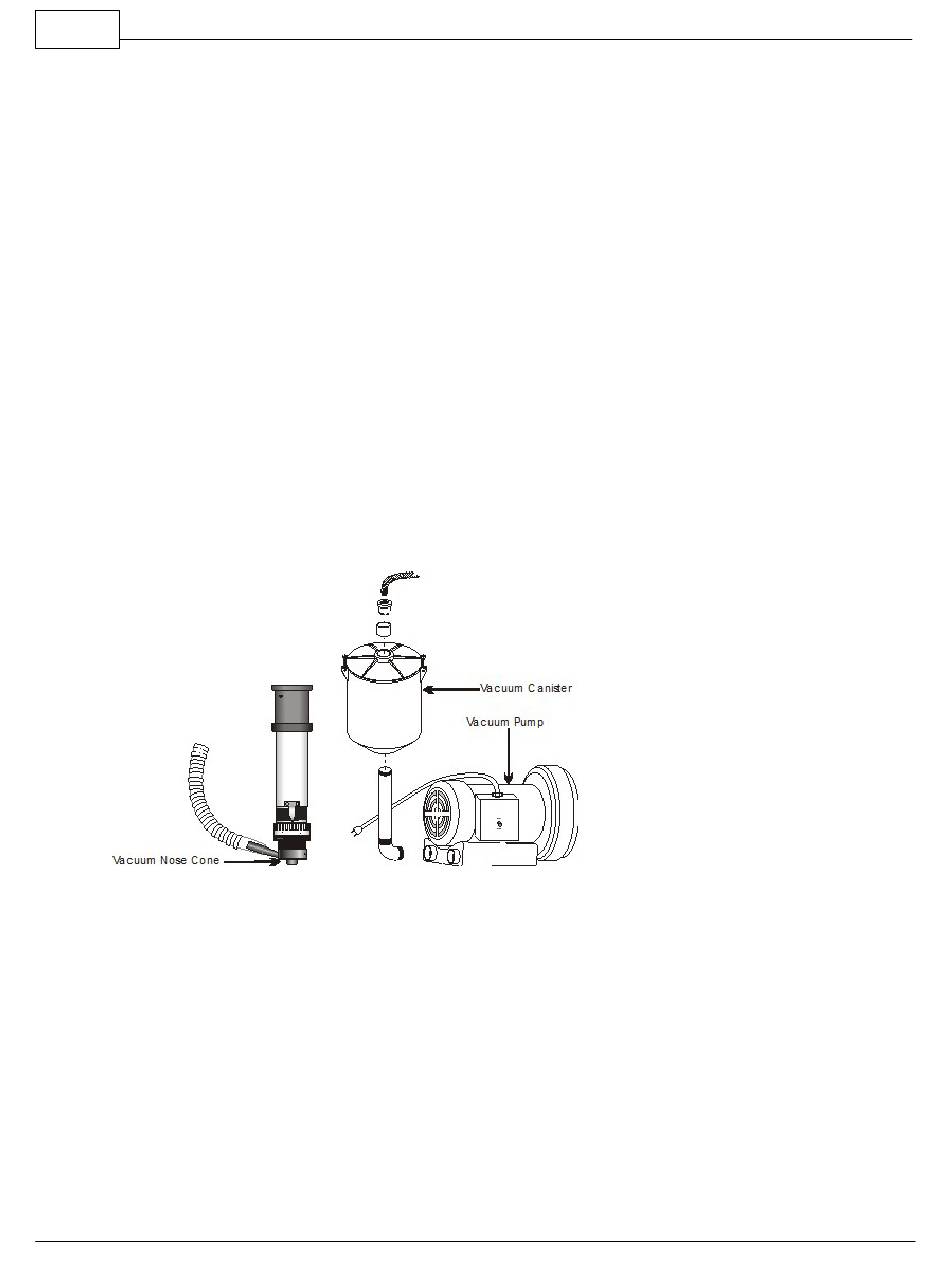

The Optional Vacuum Chip Removal System
