Step by Step Operation 71

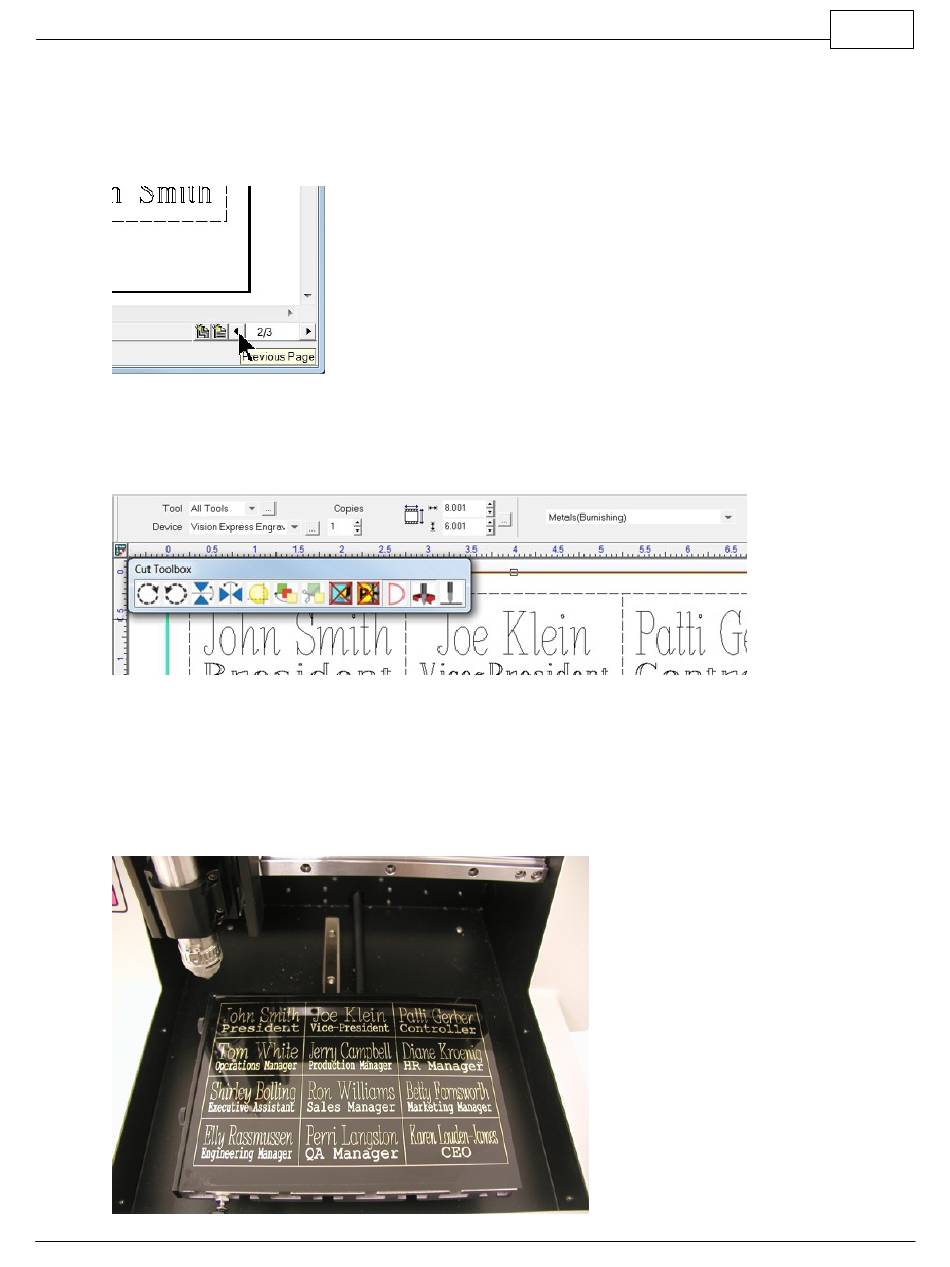

Also, if there are more variables than can be fit into one plate in the Vision software, multiple plates (or
pages) are automatically generated for individual output to the engraver. The lower right corner of the
Vision software screen allows the user to view the individual pages. During the Engrave operation, the
user will select the page to be sent to the engraver.
To finish this example job, set up the engraver for a metal burnishing application as described in the
previous section and select the Engrave icon from the left toolbar, then click on the Tool Setup icon,
chose Metals(Burnishing) as the material and click on OK. If you choose to run a Dry Run (as shown)
to make sure the setup is correct, proceed as in prior sections to send the file to the engraver.
Note that if the plate objects are left as part of the file sent to the engraver, they will engrave as well. If
this is not desirable, simply select the plate object within the Vision software and delete it prior to
sending the file to the engraver. Alternatively, the plate object may be changed to a different color than
the text to be engraved. Within the Vision software, the Engrave by Color option (discussed in the next
example job) can be used to only send the text to the engraver.
In this example, the plate object lines were engraved.
