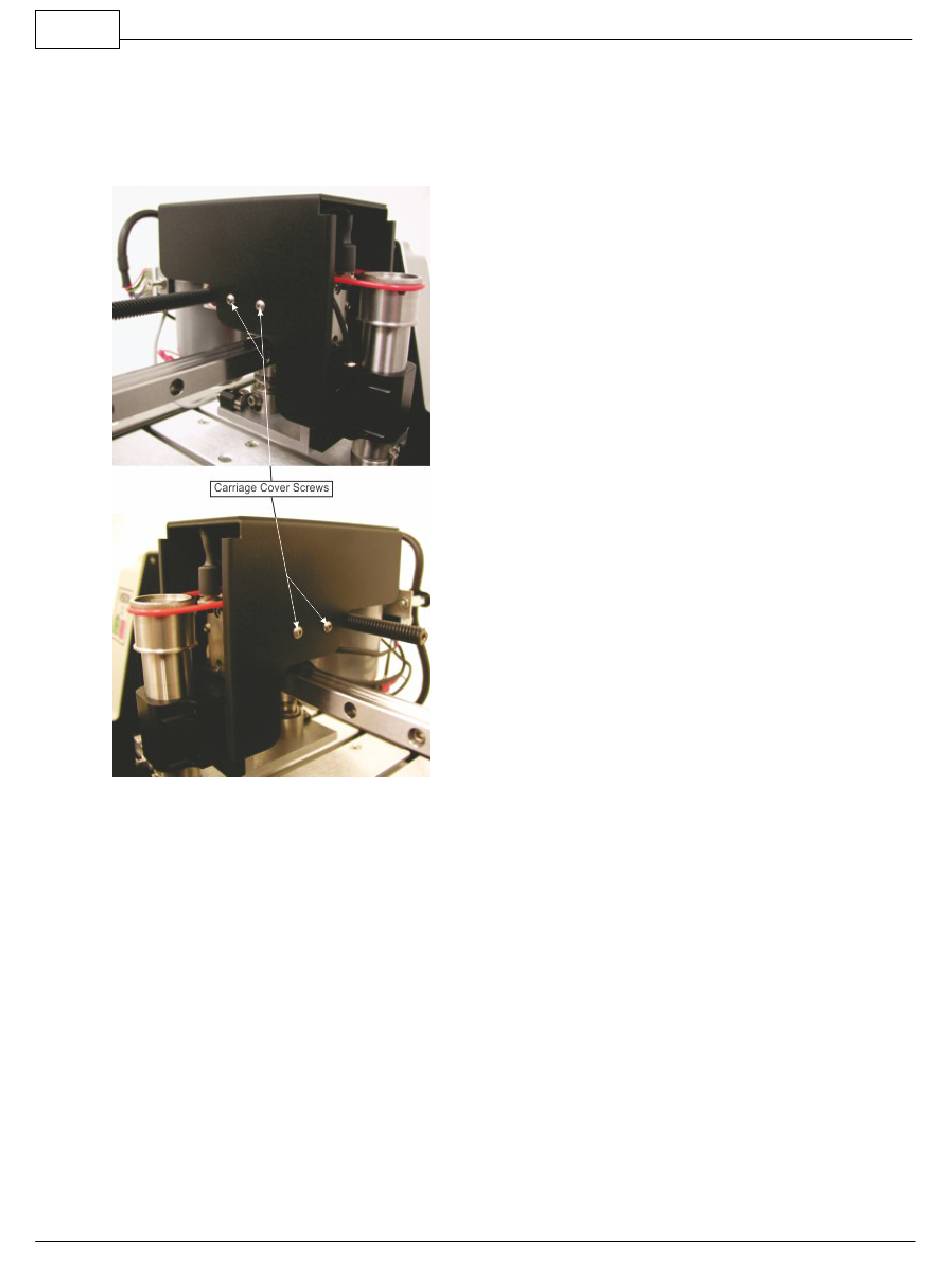

NOTE - The Z-Axis leadscrew is protected from debris by the carriage cover and is less likely to
become contaminated by debris. It will require periodic cleaning and lubrication. To access the Z-Axis
leadscrew, remove the top cover and the carriage cover, then lower the spindle. This will expose the
leadscrew, which is located between the spindle and the motor.
