DEFINITION OF TERMS (see Figures below)
1. Front Panel - Allows the user to start, pause, and resume operation. A green LED indicator
signals when the machine is ready, if a job has been loaded or if a job has completed. For details on
the indicator light, see the Operation section.
2. Emergency Stop - A push button emergency shut down of the motion system (does not turn
machine completely off, just stops motion).

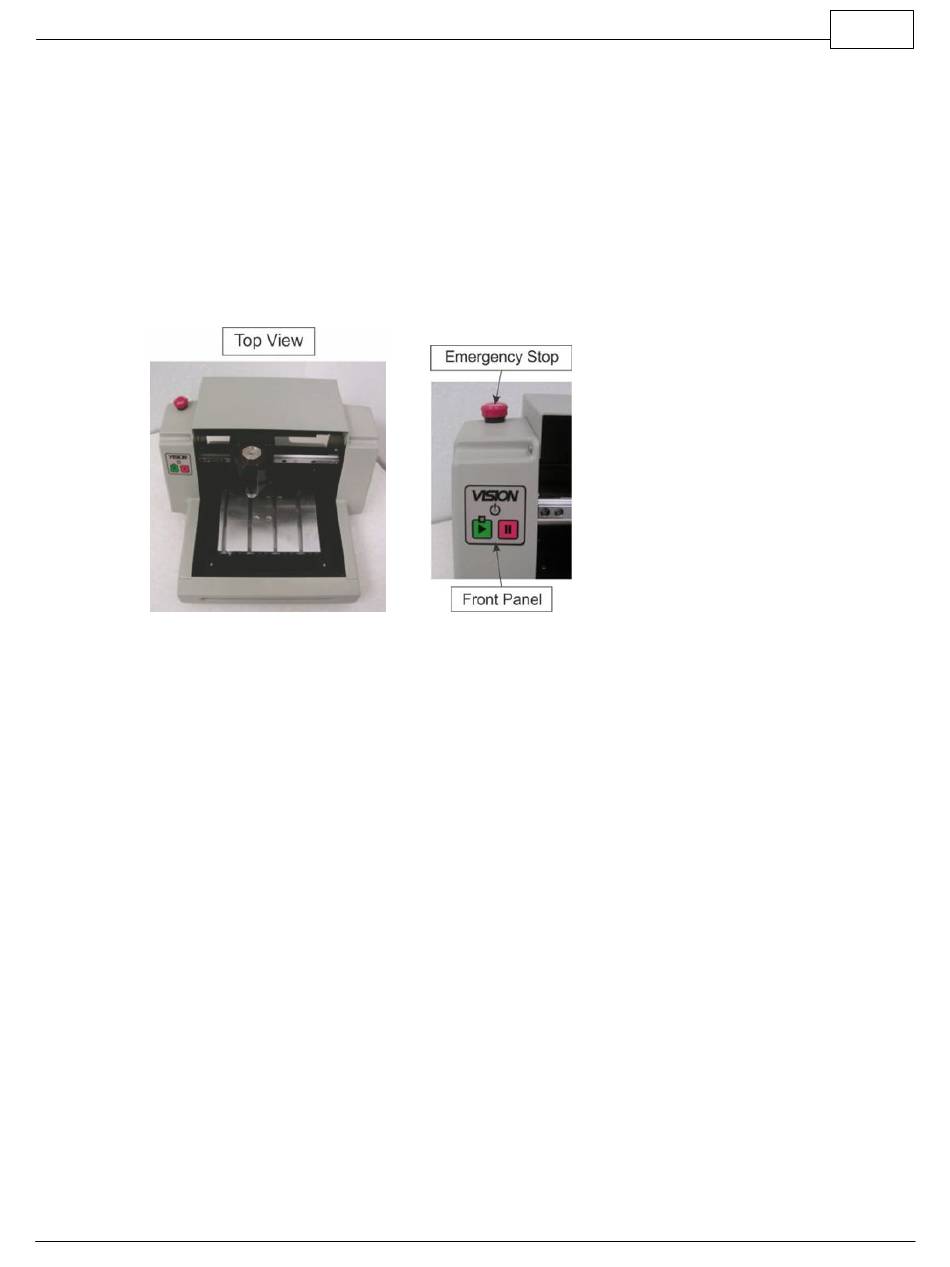

Figure 1.1 Figure 1.2
3. X-Axis Leadscrew - The screw that drives the left to right motion of the machine.
4. X-Axis Linear Rail - The 9/16" square rail that the carriage assembly rides on.
5. Y-Axis Linear Rail - The 9/16" square rail that the t-slot table rides on.
6. Y-Axis Leadscrew - The screw that drives the front to back motion of the machine.
7. T-Slot Table (work surface) - Allows the user to position the engraving material or special clamps
and fixtures. The slots in the table are shaped with an upside-down T. The slots are used to hold various
accessory holders, clamps, and jigs.
8. Table Home Position - The upper-left corner of the T-Slot table. All work is referenced from this
position.
9. Spindle Cover - Protects user from rotating spindle during operation.
